2-5
2.2 Front view
2 Overview
2.2 Front view 2200 Front view 2- Uebersicht_Front

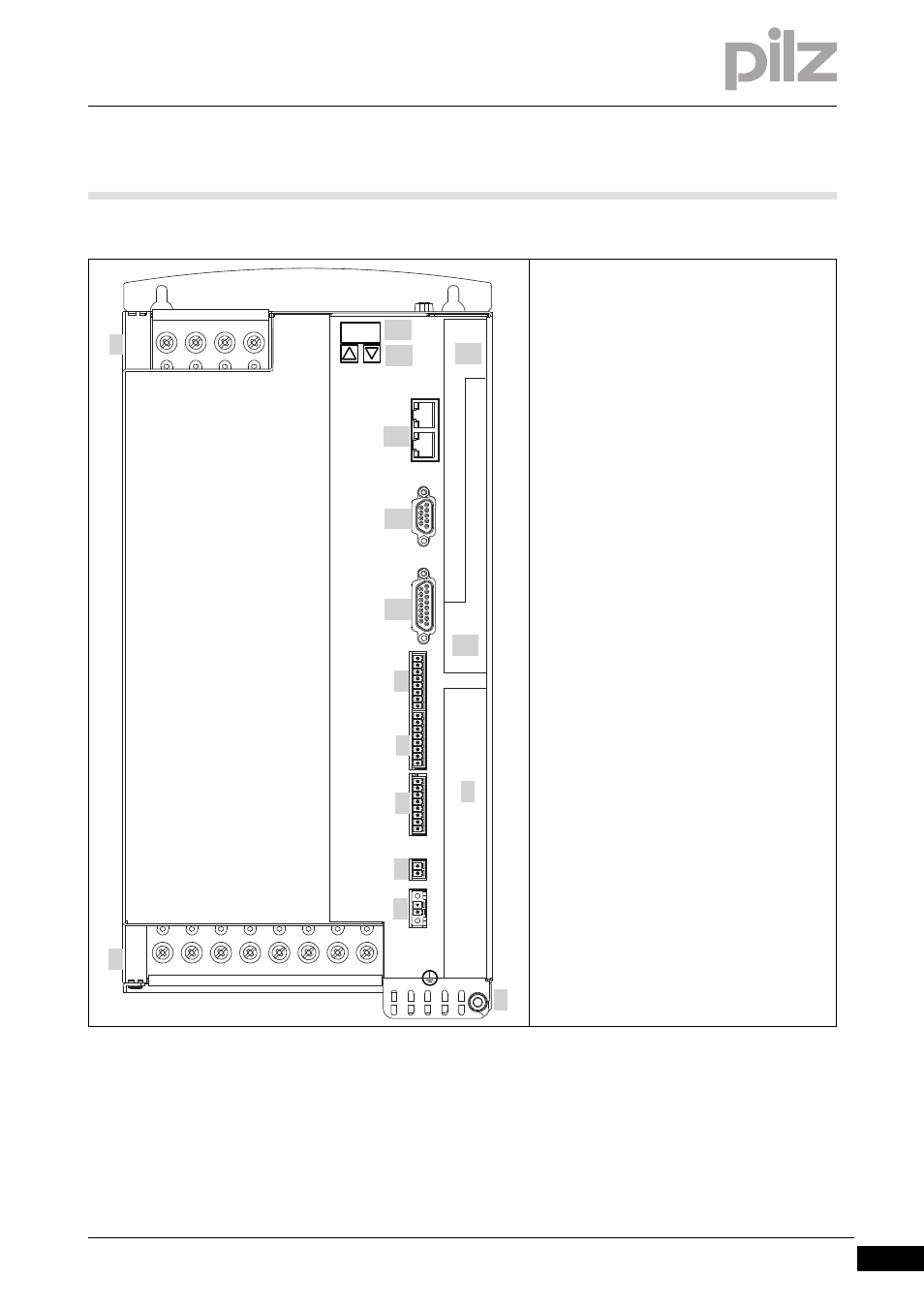

Front view of PMCprotego D
Legend:
1: Mains voltage, power element
2: External brake resistor, connection for motor,
intermediate circuit
3: Connection for earth conductor PE
4: Connection for motor holding brake
5: Supply voltage for motor holding brake
6: Supply voltage 24 VDC and safety function
STO
7: Expansion cards slot 3
8: Enable signal, 4 digital inputs, 2 digital inputs
or outputs (parameters can be set)
9: 2 analogue inputs, relay output for operation-
al readiness
10: Expansion cards slot 2
11: Connection for incremental encoder, sine/
cosine encoder, pulse/direction 24 V
12: Connection for resolver
13: Ethernet interface
14: Expansion cards slot 1
15: Buttons
16: LED display for messages
1
2
3
4
5
6
7
9
8
10
11
12
13
14 15
16
