6.8 Expansion cards
6 Wiring
Pilz GmbH & Co. KG, Felix-Wankel-Straße 2, 73760 Ostfildern, Germany
Telephone: +49 711 3409-0, Telefax: +49 711 3409-133, E-Mail: [email protected]
6-58
][Verdr_Erw_I_O_14_8_protego_D_48_72

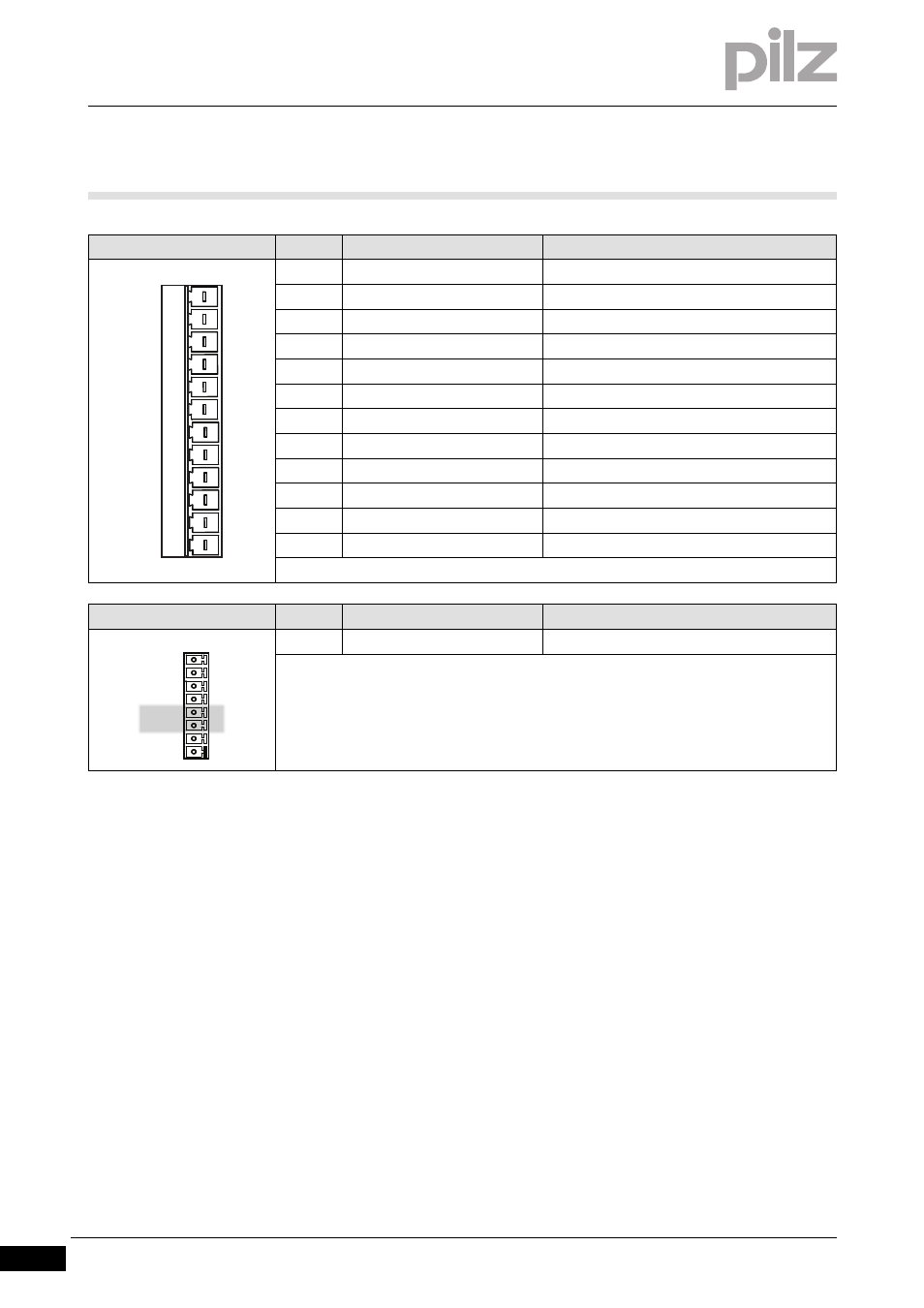

Connector X11B Pin Designation Description
1 FRestart Digital input
2 FStart_I/O Digital input
3 InPosition Digital output
4 Folge-InPos / PosReg 0 Digital output
5 S_fehl Digital output
6 PosReg1 Digital output
7 PosReg2 Digital output
8 PosReg3 Digital output
9 PosReg4 Digital output
10 PosReg5 Digital output
11 24 VDC Supply voltage 24 VDC
12 I/O-GND Reference earth
Connector X4 Pin Designation Description
3, 4 XGND Reference earth
34
5
6
12
7
8
9
1011
12
X11B
X4
XGND
1
2
3
4
5
6
7
8
XGND
