6-65
6.8 Expansion cards
6 Wiring
6.8.4 Expansion card with PROFIBUS-DP interface
Expansion card with PROFIBUS-DP interface 6- ][Verdr_PROFIBUS_protego_D
Input circuit Analogue input
- Signal range –10 ... +10 V
- Referenced to earth: Always con-
nect AGND (X3B/13) to CNC-GND
on the control system
- Twisted pair, shielded
- Shield connection on the front plate
Connector pin assignment
Connector X12A/X12B Pin Designation Description
1 n. c. --
2 n. c. --
3 RxD/TxD-P B-line
4 n. c. --
5 GND Earth
6 VP Supply voltage +5 VDC
7 n. c. --
8 RxD/TxD-N A-line
n. c. = not connected

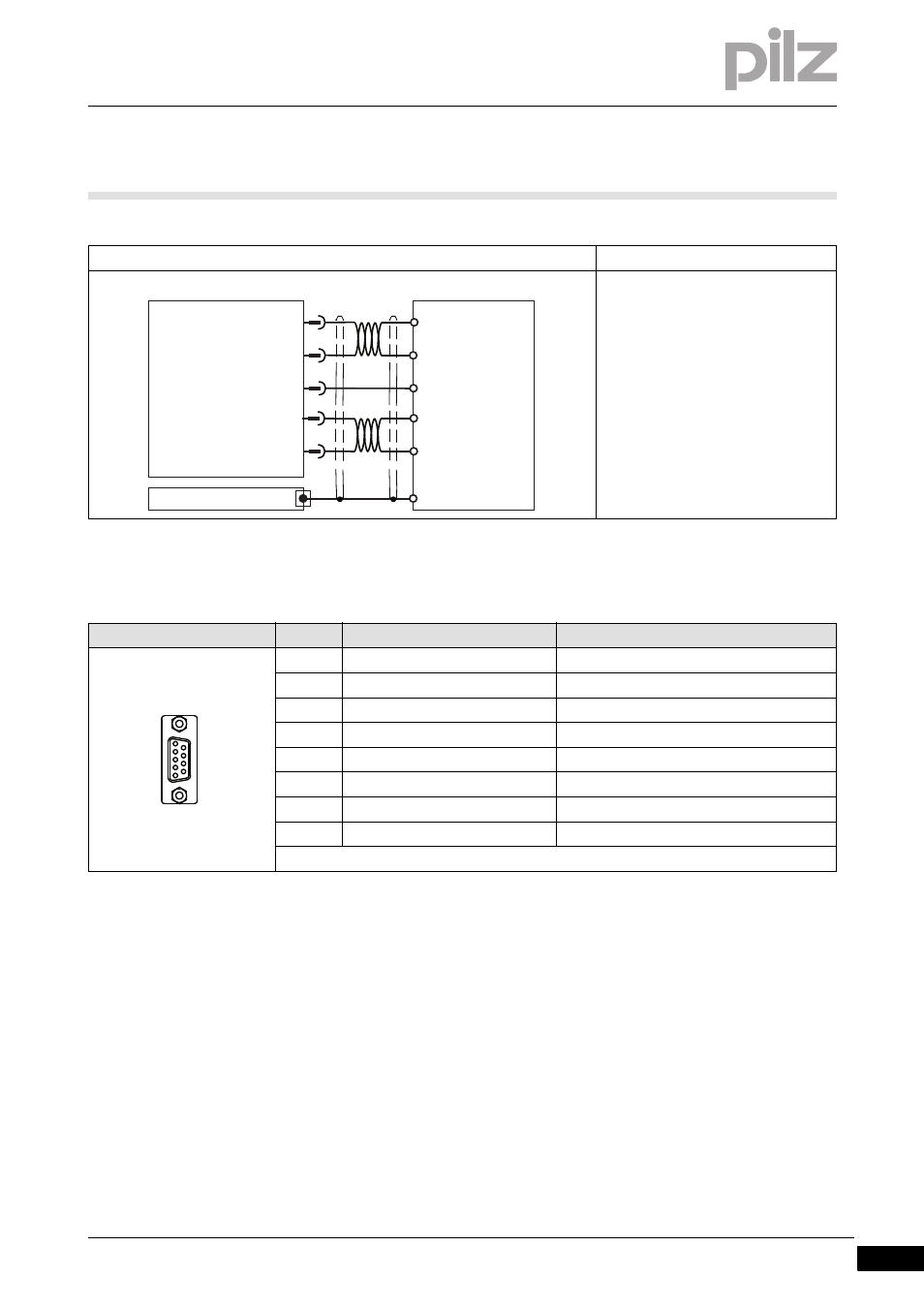

Connection (continued)
+O1
21
ANALOG-IN3-
22
23
25
AGND
PMCprotego
-O1
+/- 10 V
+O2
-O2
+/- 10 V
CNC-GND
GND
X3C
Shield
ANALOG-IN3+
ANALOG-IN4-
ANALOG-IN4+
24
1
5
6
9
