6.8 Expansion cards
6 Wiring
Pilz GmbH & Co. KG, Felix-Wankel-Straße 2, 73760 Ostfildern, Germany
Telephone: +49 711 3409-0, Telefax: +49 711 3409-133, E-Mail: [email protected]
6-66

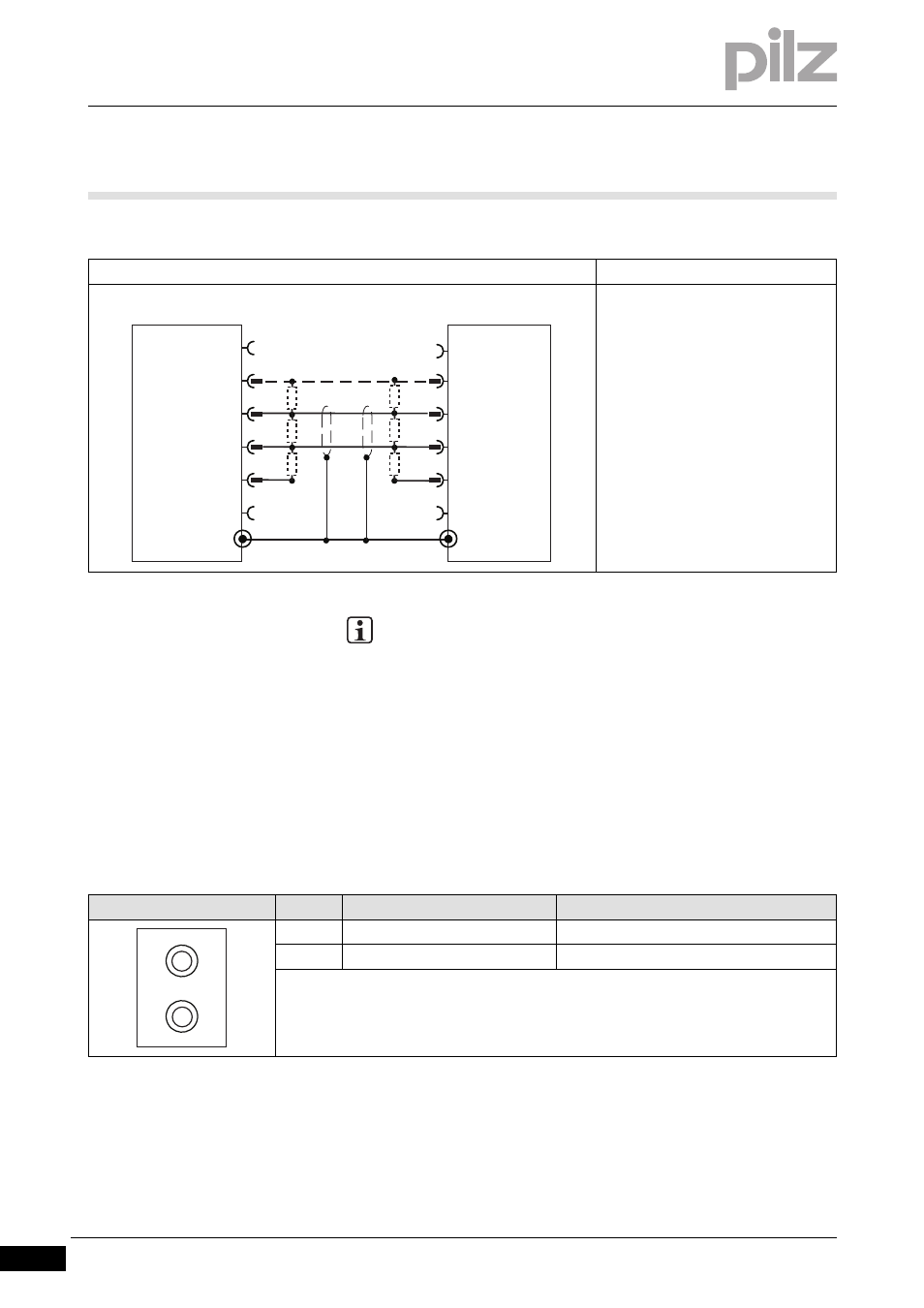

6.8.5 Expansion card for SERCOS interface
Expansion card for SERCOS interface 6- ][Verdr_SERCOS_protego_D
Only SERCOS components that comply with the SERCOS standard
IEC 61491 should be used for the fibre-optic (FO) connection.
Connection
Interface PROFIBUS-DP
Shielded cable
Shield connection in the connector
INFORMATION
Cable selection, cable routing, shielding, bus connectors, bus
termination and runtimes are all described in the “PROFIBUS-
DP/FMS Installation Guidelines” published by the PROFIBUS
User Group PNO.
Connector pin assignment
Connector X13/X14 Pin Designation Description
X13 Receive Receive data
X14 Transmit Send data
1
4
6
Servo Drive PLC
3
A (RxD/TxD-N)
GND
VP
390 W
390 W
390 W
220 W 220 W
390 W
5
8
1
4
6
3
5
8
B (RxD/TxD-P)
A (RxD/TxD-N)
GND
VP
B (RxD/TxD-P)
X12A
X12B
Receive
Transmit
X14
X13
