Doremi Asset Manager - Manual (Page 61)

3.5.9.4 Nugget + Dimension-3D
Combining the Nugget-Pro with a Dimension-3D will make for a low cost high definition 3D
server that supports most popular 3D display formats like Side/Side, Top/Bottom, Line/Line,
Sequential and dual stream Left and Right SDI. DoremiAM will encode left and right media files
to side/side or top/bottom media that can be transferred to the Nugget. The Dimension-3D will
convert the Nugget output from side/side or top/bottom to the 3D format required by the display
device.
3.6 Audio Dubbing
If you receive the video and audio in separate files or if you want to change the audio of an
existing clip, you can use the Audio Dubbing feature of Doremi AM. If you don’t want to alter the
original clip, you can make a duplicate copy and work on it.
Duplicating a clip:
From the “Clip Database” tab on the main GUI select the clip you wish to duplicate and click the
“Duplicate” button.
• The Duplicate window will appear.
• Press the expand arrow underneath the thumbnail and the un-check the check-box next
to the audio track to duplicate the clip without the audio.
• When finished press the Ok button.

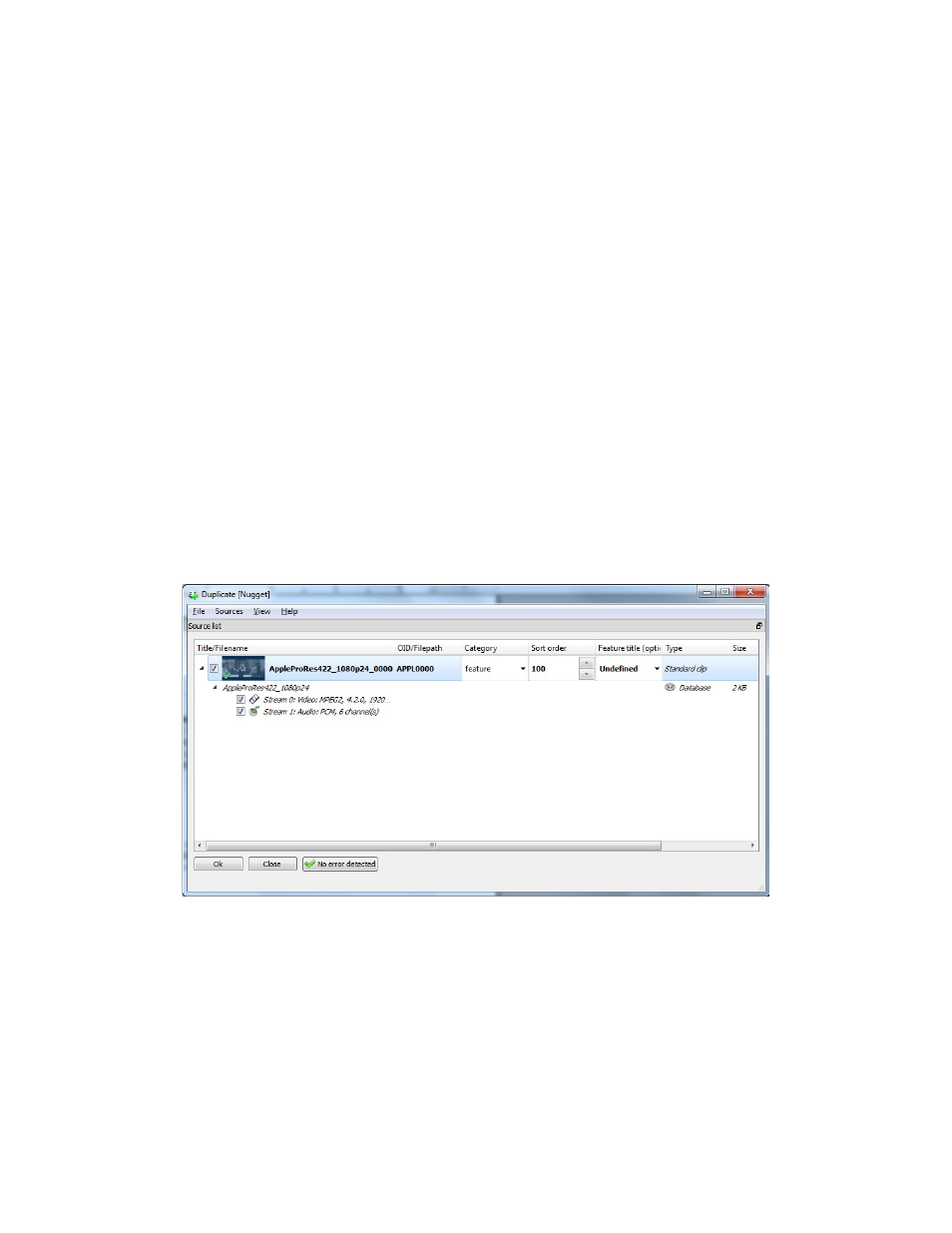

Figure 60: “Duplicate database” Window
