Mounting and cabling

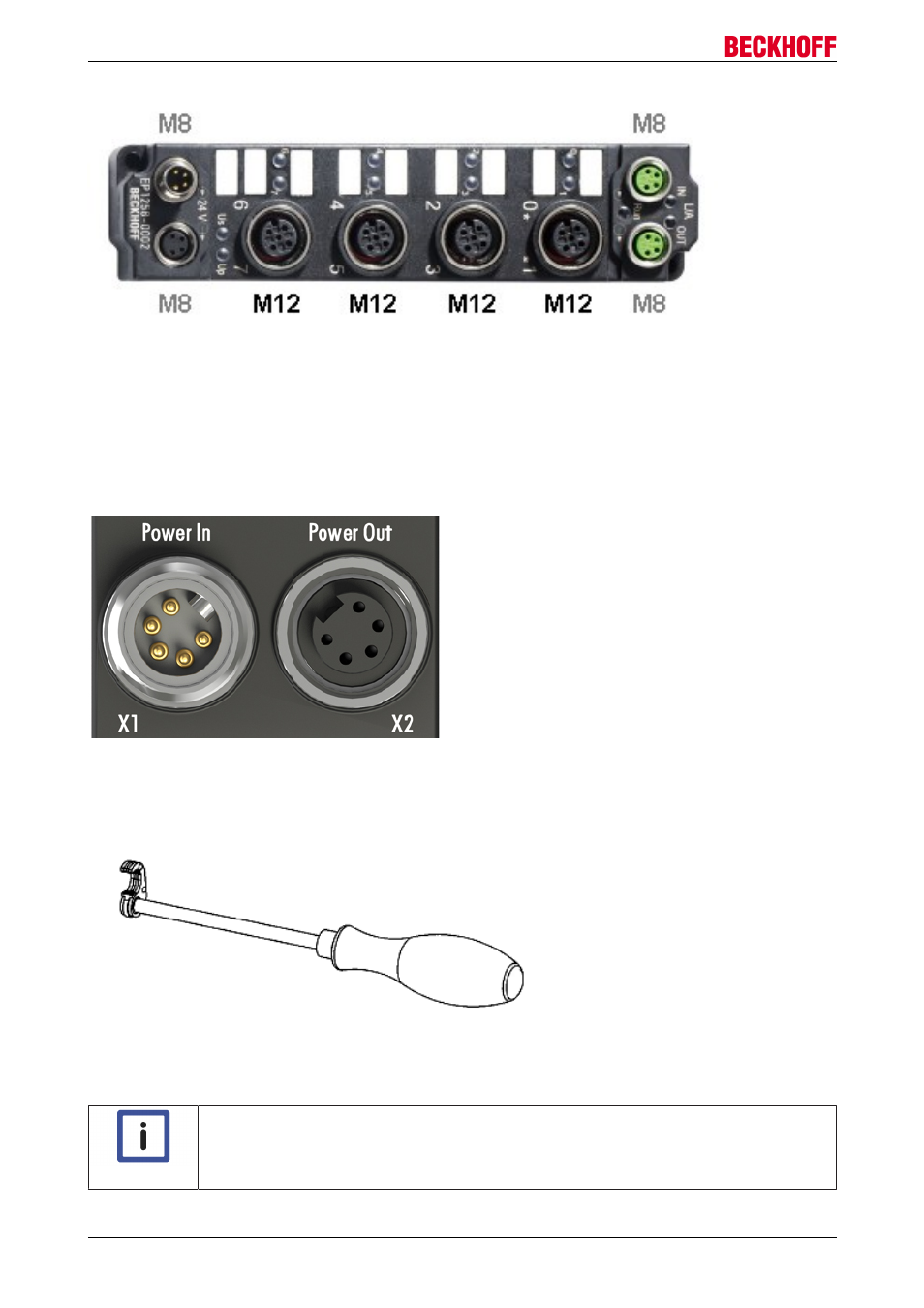

Fig. 8: EtherCAT Box with M8 and M12 connectors
7/8" connectors
It is recommended to pull the 7/8" connectors tight with a nut torque of 1.5 Nm.
Fig. 9: 7/8" connectors
Torque socket wrenches
Fig. 10: ZB8800 torque socket wrench
Note
Ensure the right torque
Use the torque socket wrenches available by Beckhoff to pull the connectors tight (see ac-
cessories)!
