10 – Internal settings
• When recording, press the RC-HS20PD PAUSE key to enter
recording standby.
• When recording, press the RC-HS20PD STOP key to stop
recording. The RC-HS20PD ONLINE key becomes unlit
when recording is stopped.
When this is set to “Disable”
• Use of the RC-HS20PD ONLINE key will be ignored.
• In recording standby, pressing the RC-HS20PD PLAY key
will not start recording.
• When recording, pressing the RC-HS20PD PAUSE key will
not put the unit into recording standby.
PARALLEL page
Set the AUX 1-3 functions of the PARALLEL connector on this
page.

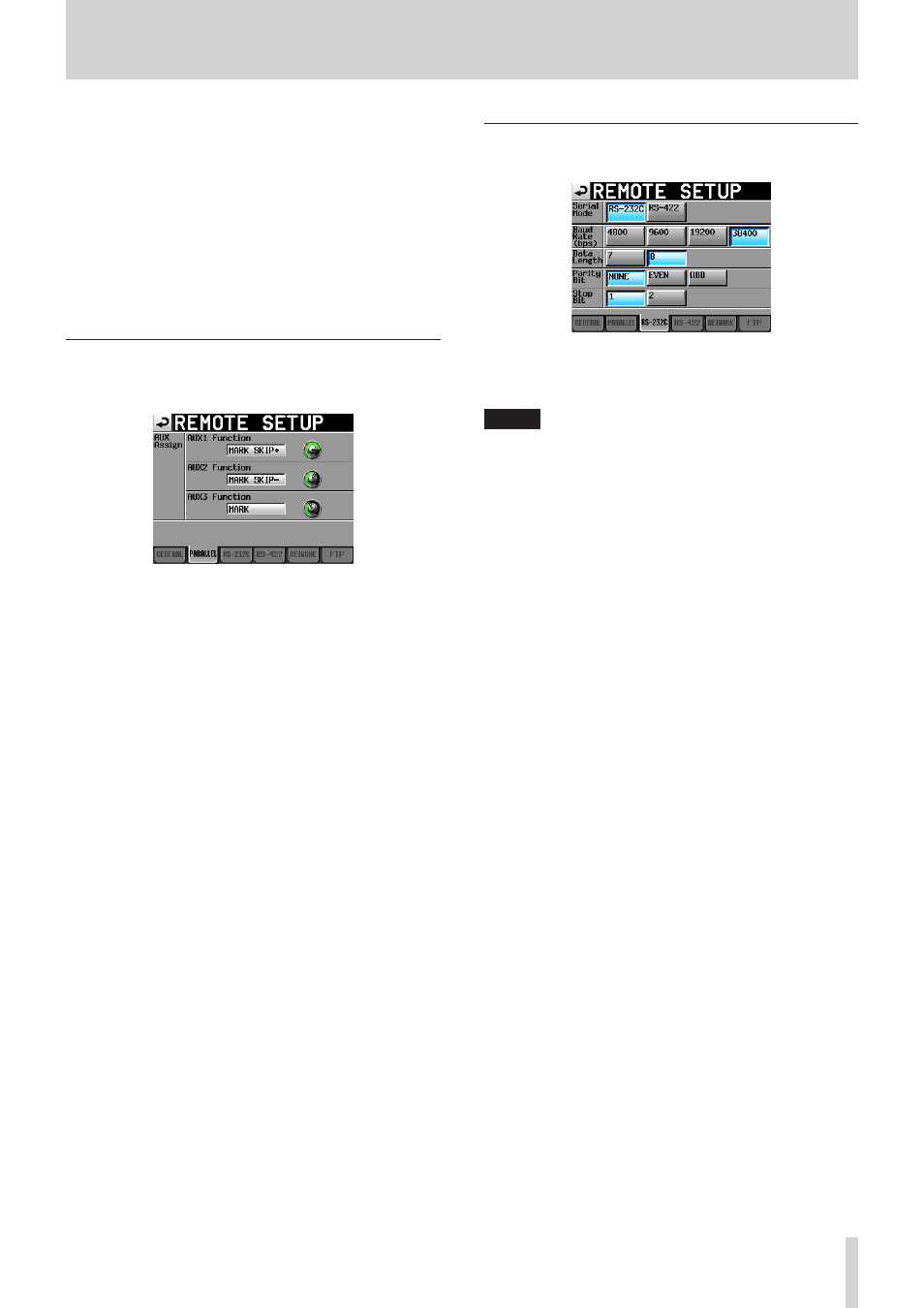

AUX Assign
Touch a knob to select it, making the background yellow,
and turn the DATA dial to set the function.
The functions that can be selected include F.FWD, REW,
MARK, MARK SKIP–, MARK SKIP+,and CALL.
o AUX1 Function:
Set the function of PARALLEL connector pin 17 (AUX1)
(default: MARK SKIP+).
o AUX2 Function:
Set the function of PARALLEL connector pin 18 (AUX2)
(default: MARK SKIP–).
o AUX3 Function:
Set the function of PARALLEL connector pin 19 (AUX3)
(default: MARK).
RS–232C page
Make RS-232C serial control transmission settings on this page.
Serial Mode
Set the serial connection mode with the following buttons.
Setting buttons: RS-232C (Default), RS-422
NOTE
• Only the connector selected with this setting will function.
The RS-232C and RS-422 connectors cannot both be used
at the same time.
• This setting is synchronized with the Serial Mode item on the
RS-422 page.
• If an optional SY-2 has not been installed, this cannot be set
to RS-422.
Baud Rate (bps)
Set the transmission speed (baud rate) with these buttons.
Setting buttons (bps): 4800, 9600, 19200 and 38400 (default)
DATA Length
Set the DATA length in bits with these buttons.
Setting buttons (bits): 7 or 8 (default)
Parity Bit
Set whether or not there is a parity bit with these buttons.
Setting buttons: NONE (default), EVEN and ODD.
Stop Bit
Set the stop bit with these buttons.
Setting buttons (bits) 1 (default) and 2
