4-6
Section 4 Ñ Maintenance
Pushbutton Lamp Replacement
During normal operation, the buttons on the Control Panel light up to
indicate their activated state. If a lamp in any button fails to light when it
should, it should be replaced. The lamp bulb (#7382) is removed by
carefully pulling the button cap up out of the panel, then pulling the bulb
out of the Switch. See Figure 4-1.

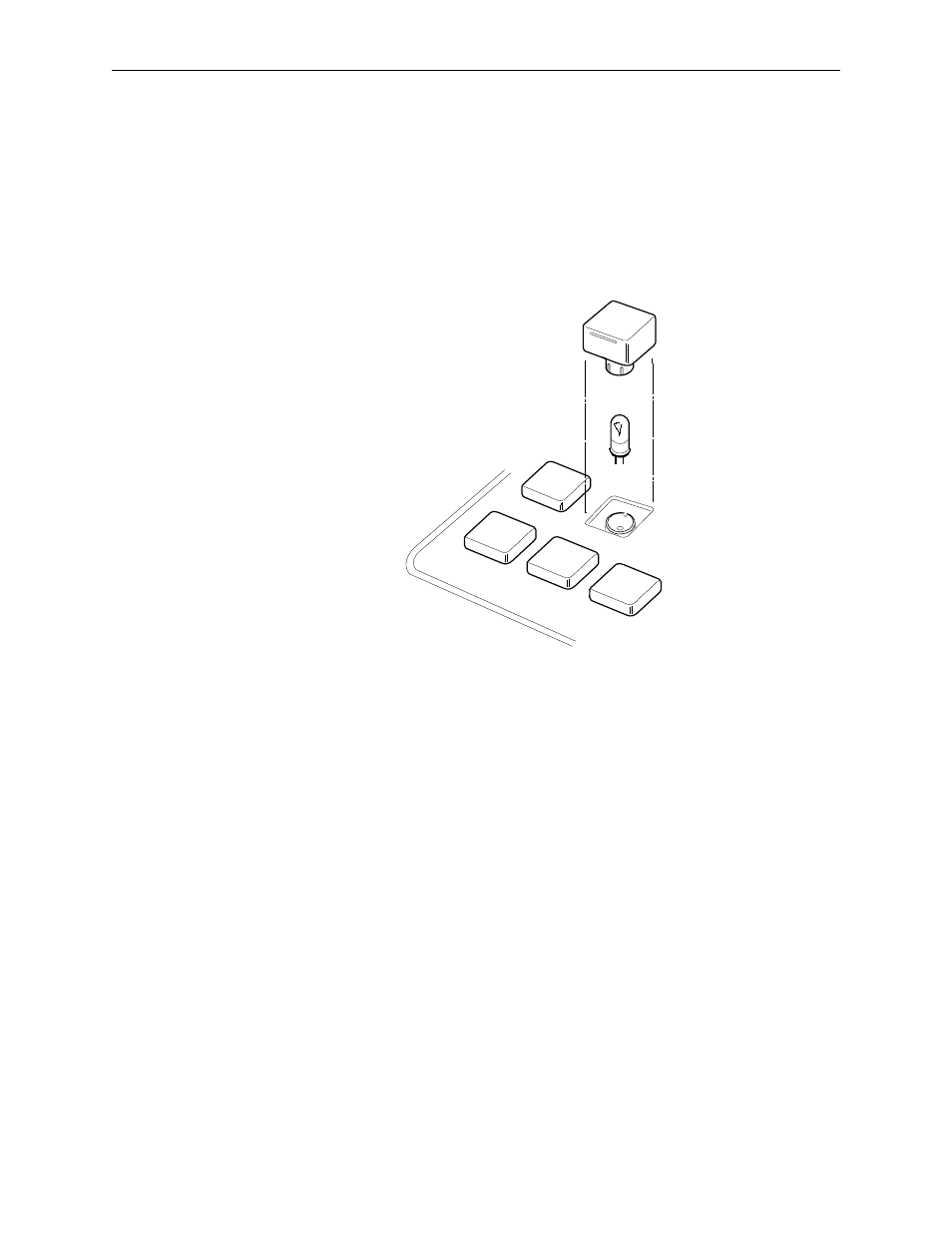

Figure 4-1. Control Panel Lamp Replacement
Pushbutton
Lamp
Switch
0347-04-07
