Menu Diagnostics
Button/Lamp DIM Test
Selecting [D - button/lamp DIM test] from the Diagnostic menu will cause the
screen to appear as in Figure 5-9.

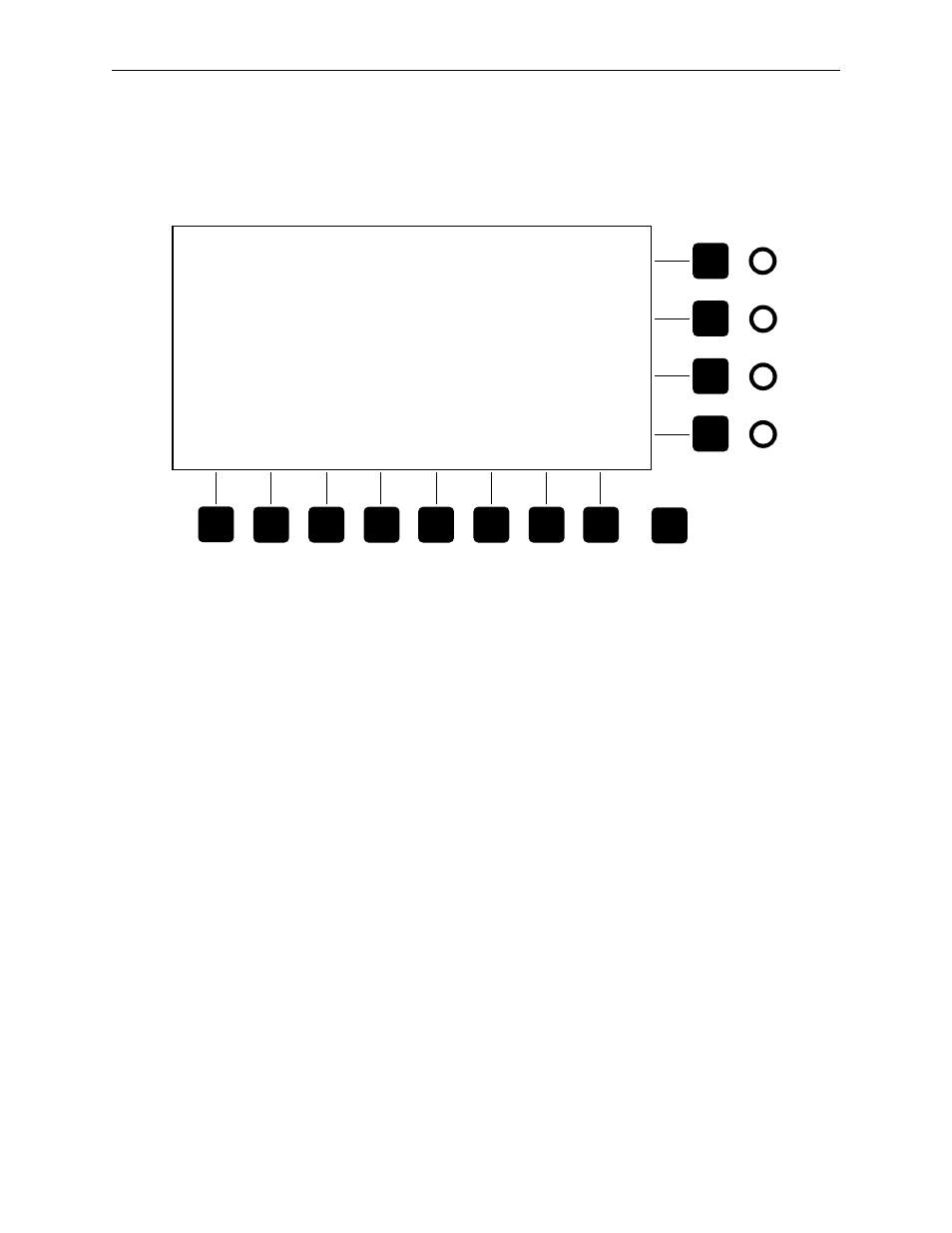

Figure 5-9. Button/Lamp DIM Test Menu
As you press a button the name of that button will appear on the screen
with the word ÔONÕ and the button will light dimly. When the button is
released the name of the button will appear on the screen with the word
ÔOFFÕ. Any lamps that cannot be dimmed will display bright.
The purpose of this test is to verify the DIM feature of an individual button.
To stop the test, press any key on the keyboard.
Exit
GVG Model 1200 Panel version xxxxxx - 00A1
Copyright 1994, Grass Valley Group, Inc.
Select a diagnostic:
A - displays test
B - knob test
C - leverarm and joystick test
D - button/lamp DIM test
E - button/lamp BRIGHT test
F - walking lamp test
G - discrete LED test
H - comm port loopback test
Return rotary switch to position 0 to exit diagnostics and
return to DOS. At the DOS prompt, use '1200' to restart
Enter letter to select test: D
Lamps will light (DIM if lamp can be dimmed) when button is pres
Press any key to stop the test . . .
EmClr ON
EmClr OFF
XPst12 On
Xpst12 OFF
