2-10
Section 2 Ñ Installation
Control Panel J1 to Frame J29
Connect the supplied panel-to-frame control cable (assembly 054000) from
panel connector J1 (see Figure 2-6) to frame connector J29. If installing a
DPM-100/700 also, donÕt mix up the control cables because equipment
damage can result.

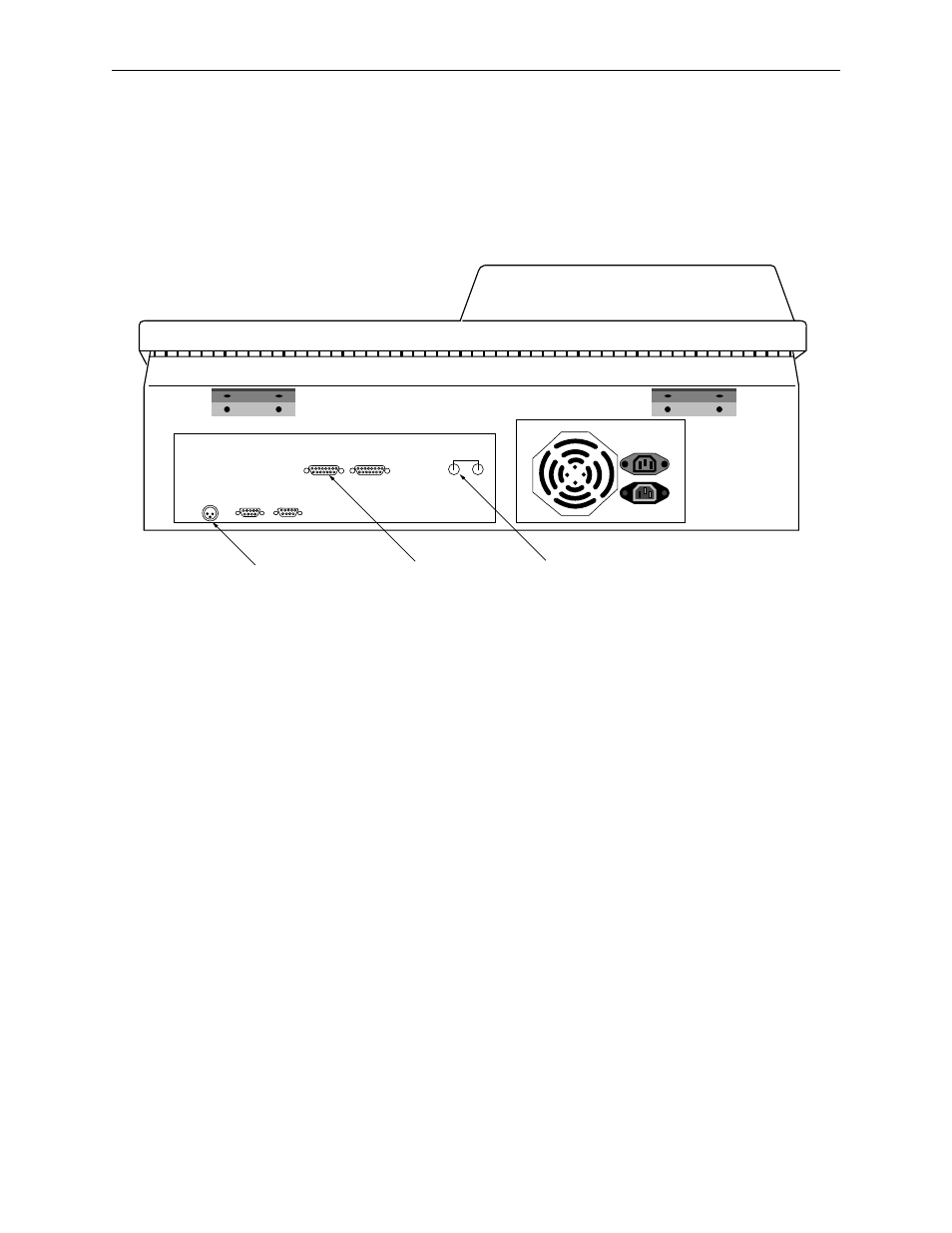

Figure 2-6. Rear of Control Panel
TP0715-05
EXT REF IN
J1 J2
J5 J6 J7
SERIAL COMM
TO VIDEO
ELECTRONICS FRAME
Keyboard Connection
J5
Frame to Control Panel
Connection
J1
Video Reference Signal Connection
Loop through Pair
(typically Color Black)
J3 J4
