Section 4 Ñ Maintenance
Loading Software From Diskette
NOTE: Before beginning this procedure, save all current E-MEM effects and
Switcher setups to disk as this procedure erases all current E-MEMs and setups in
memory.
1. Open the control panel and locate the I/O board (064919). Refer to
Figure 4-6.

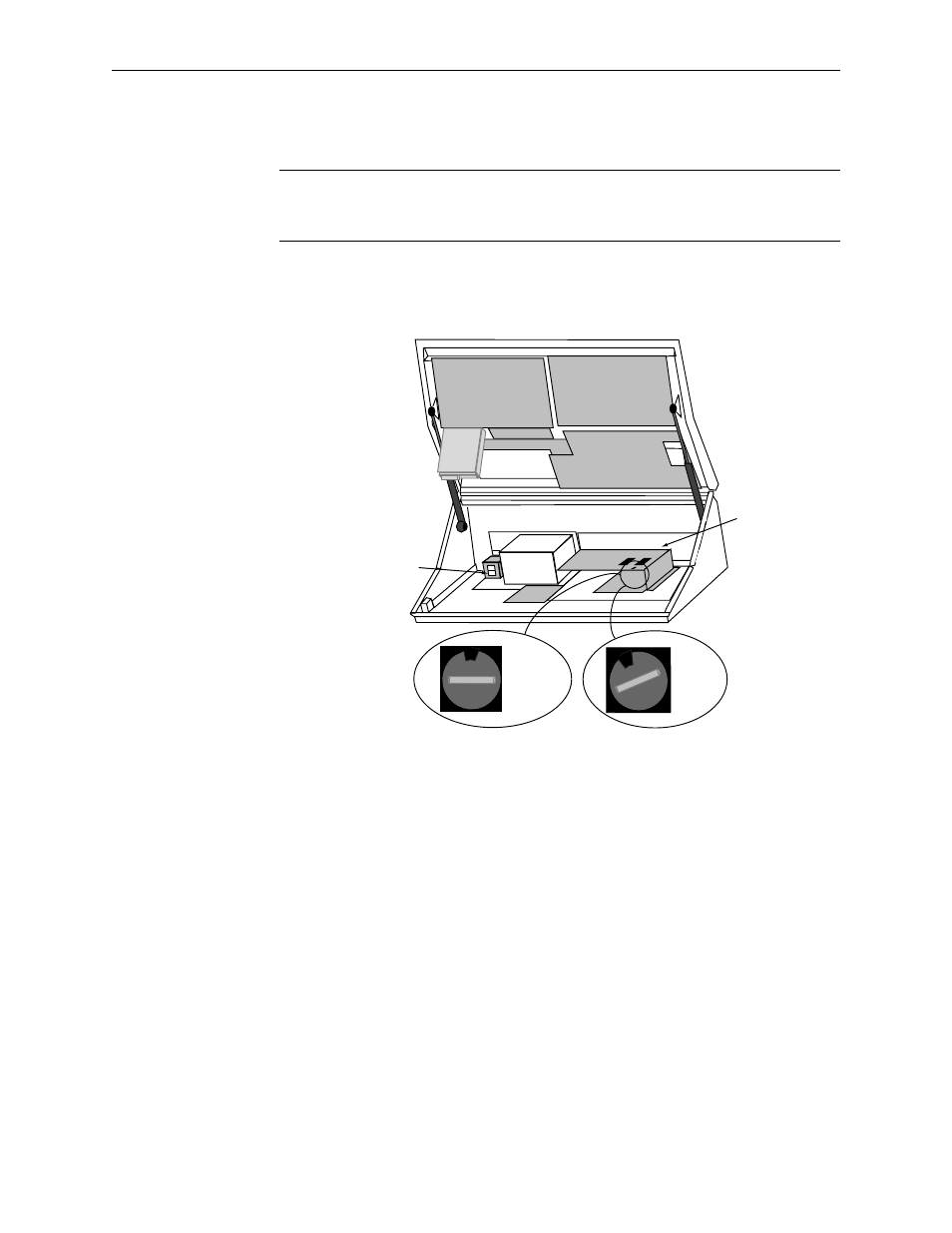

Figure 4-6. Accessing the Software Installation Mode
2. Insert the control panel software diskette (labeled 153309) into the disk
drive.
3. Open the lid and turn OFF the control panel power using the ON/OFF
switch.
4. On the I/O board, turn the rotary switch to 9 (nine). See Figure 4-6.
