Section 2 Ñ Installation
Control Panel Installation
The control panel consists of a single unit which you can place on a desktop
as shown in Figure 2-1 or flush mount in a console as shown in Figure 2-2.
Be sure to leave room behind the panel for making cable connections and
above the panel for opening the lid.

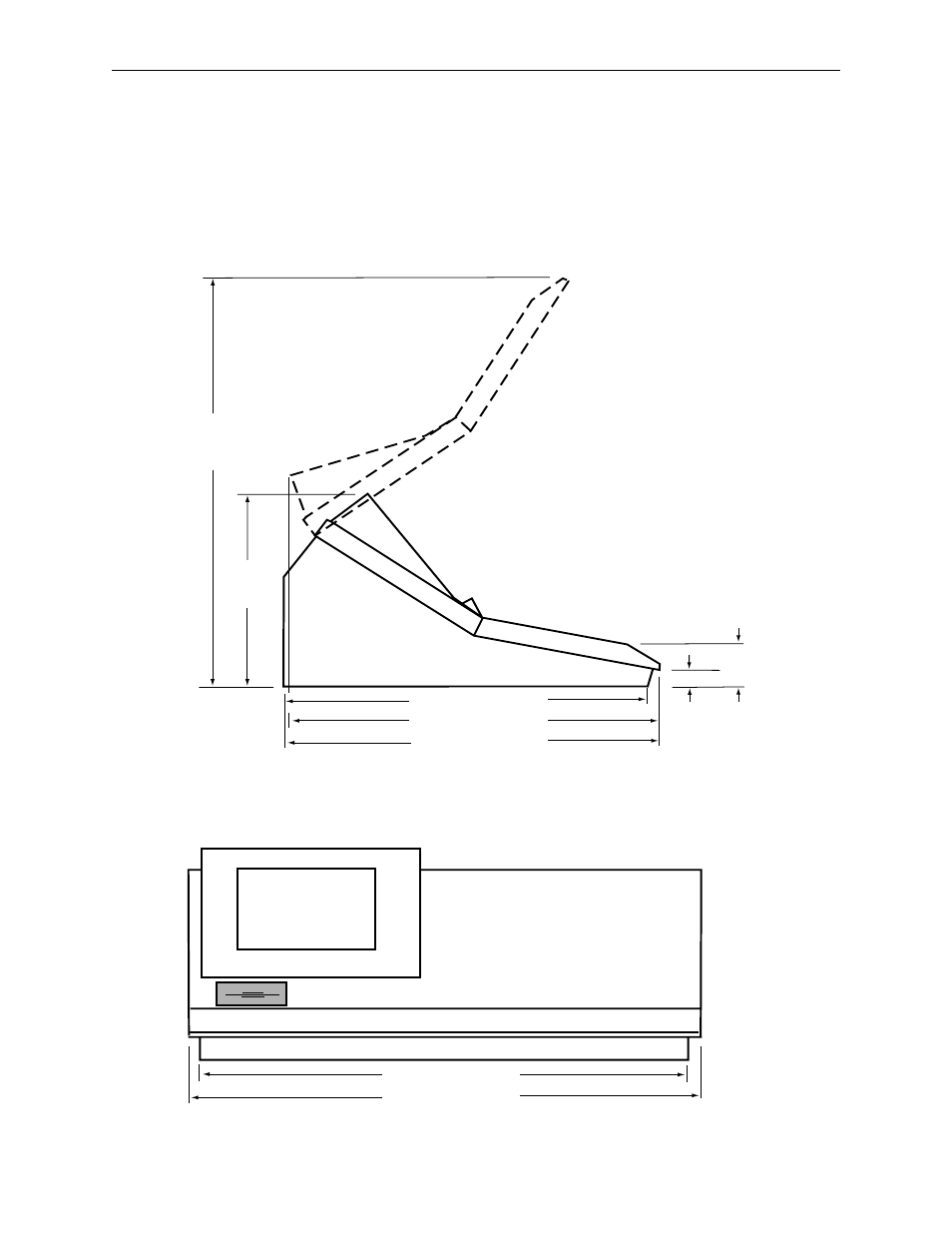

Figure 2-1. Control Panel Dimensions
10.66 in.
(271 mm)
0.83 in.
(21 mm)
16.57 in. (421 mm)
17.42 in. (443 mm)
Side View
Front View
27.71 in. (704 mm)
29.00 in. (737 mm)
Tub
Lower Panel Surface
Splash Panel
Display
23.28 in.
(591 mm)
Note: Leave 6 inches (152 mm)
of space behind the panel for
cable connections.
2.23 in.
(57 mm)
17.36 in. (441 mm)
Desk Mount
