Grass Valley 1200 Installation - Manual (Page 63)

2-35
Option Installation

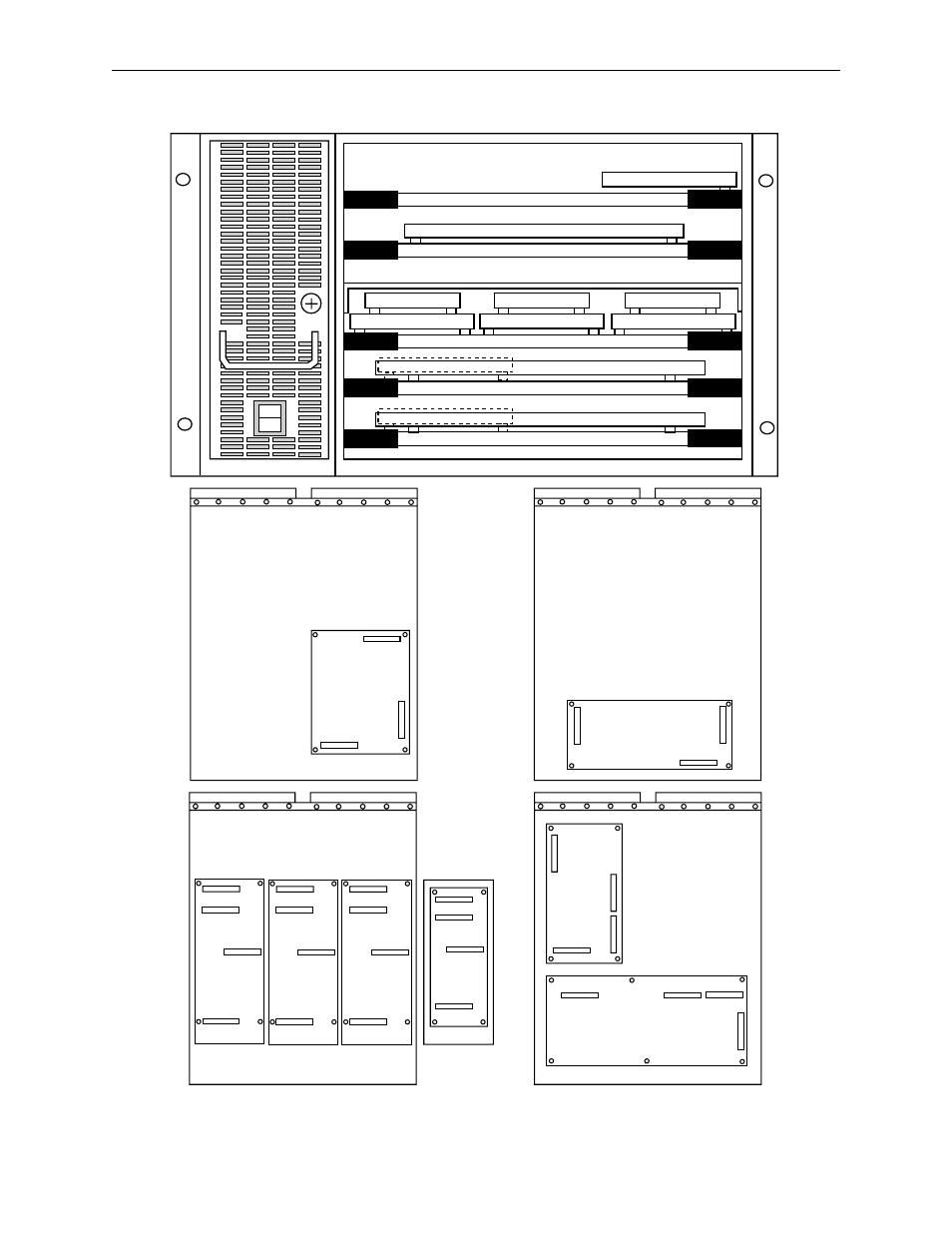

Figure 2-27. Locations of Submodule Options on Main Modules
1
0
064911 Control Processor Module
064905 Crosspoint Module
064907 Keyer Module
064910 Program Mixer Module
064910 Preview Mixer Option Module
Power Supply
064914 SPG Submodule
064906 Chroma Keyer Submodule
064908 Key 1 Processor 064908 Key 2 Processor 064908 DSK Processor
064909 Borderline 064909 Borderline 064909 Borderline
064913 Depth Option 064912 DAC Option
J3 to J14
J1 to J15 J2 to J16
SPG
J1 to J30
J2 to J29 J3 to J31
Chroma Keyer
Control Processor Module
Crosspoint Module
Keyer Module
J1 to J13
J3 to J16
J2 to J19
J4 to J20
Key 1 Proc
J1 to J12
J3 to J11
J2 to J10
J4 to J9
Key 2 Proc
J1 to J18
J3 to J17
J2 to J15
J4 to J14
DSK Proc
Mixer Module
J3 to J14
J4 to J15
Depth
J2 to J13 J1 to J12
DAC Output
To J8
To J9
To J10 To J11
Key Proc
Borderline
Option
J1 to J6
J4 to J7
J3 to J8
J2 to J5
064913 Depth Option 064912 DAC Option
