2-25
System Setup
Crosspoint Map Menu
The Crosspoint Map menu (Figure 2-18) is selected by pressing the [CONFIG]
button and then the [XPT MAP>] button.
1. Set the [[XPT MAP SELECT] soft button to the NORMAL or ALTERNATE
crosspoint map. Using this function, you can define two completely
different crosspoint maps and switch between them as desired. If you
plan to use only one map, select
NORMAL .
2. Use the (XPT) soft knob to select the crosspoint to be highlighted.
3. Use the (PHYSICAL INPUT) soft knob to assign a Physical Input to the
highlighted crosspoint. The Signal Name column will display the
descriptive name of the selected Physical Input. (Signal Name is
created in the Define Inputs menu.)

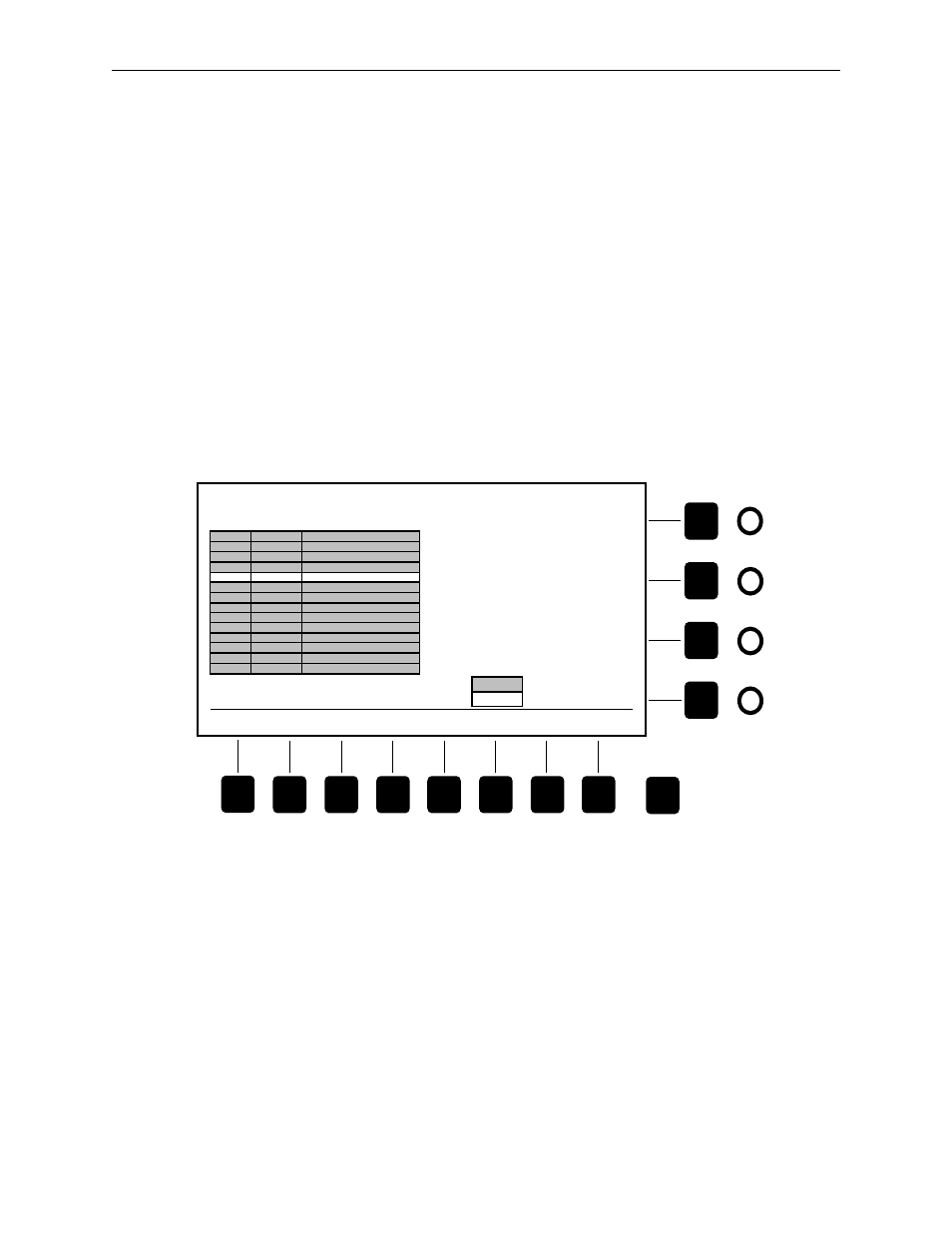

Figure 2-18. Crosspoint Map Menu
CROSSPOINT MAP MENU
ALTERNATE
NORMAL
XPT MAP
SELECT
XPT
= 5
PHYSICAL INPUT
= J2
XPT
PHYSICAL
INPUT SIGNAL NAME
1 BLACK BLACK
Exit
2 J1 VTR 1
3 J4 VTR 2
4 J6 R-VTR
5 J2 CHAR GEN V
6 J3 CHAR GEN K
7
8 J8
J7 DPM-700 VIDEO
DPM-700 KEY
9 J9
10 J8
11
12
13
14 J11
J12
MATTE
J16 BARS
CAMERA 1
CAMERA 2
PAINTBOX
MATTE
STILL STORE
