4-7

Routine Maintenance

Using the Module Extender

The 064917 Extender enables you to extend modules outside the frame so
that you can probe circuits and test points while they are powered up.
Figure 4-2 shows how to use the Extender.

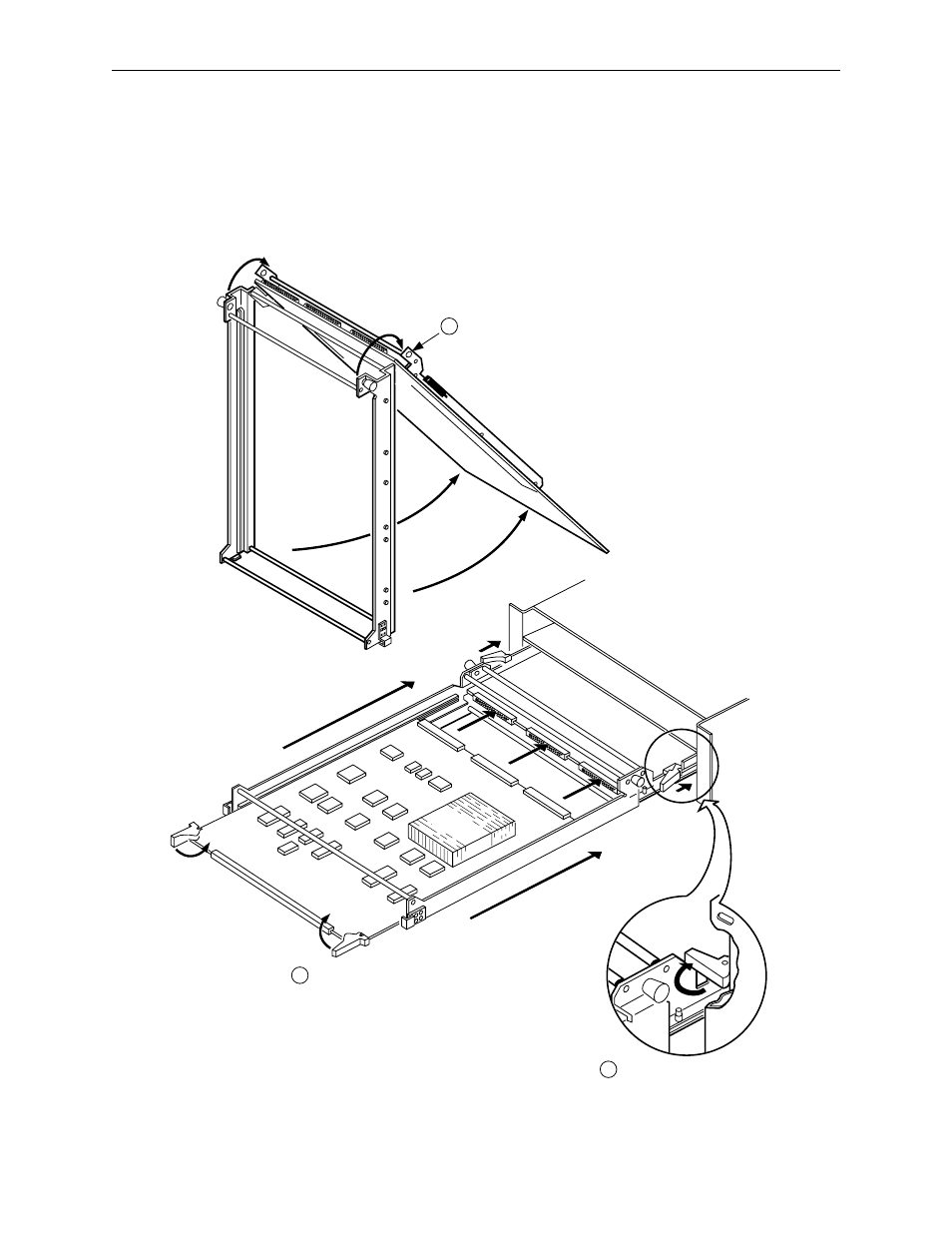

Figure 4-2. Using the Module Extender

3

SLIDE MODULE INTO
EXTENDER AND
LOCK EJECTOR TABS
IN PLACE

2

INSERT EXTENDER INTO
FRAME AND LOCK EJECTOR
TABS IN PLACE

TP0286-M15

UNFOLD EXTENDER
AND LOCK KNOBS
IN PLACE

1
