1-2
Section 1 Ñ System Overview
Model 1200 Physical Description
The Model 1200 Switcher (Figure 1-1) consists of two main assemblies: the
Control Panel and the Signal Processor Frame. The frame contains the
input/output options (back of frame), the video and key processing
boards, the system control processor, and the frame power supply. A single
data cable connects the panel to the frame.

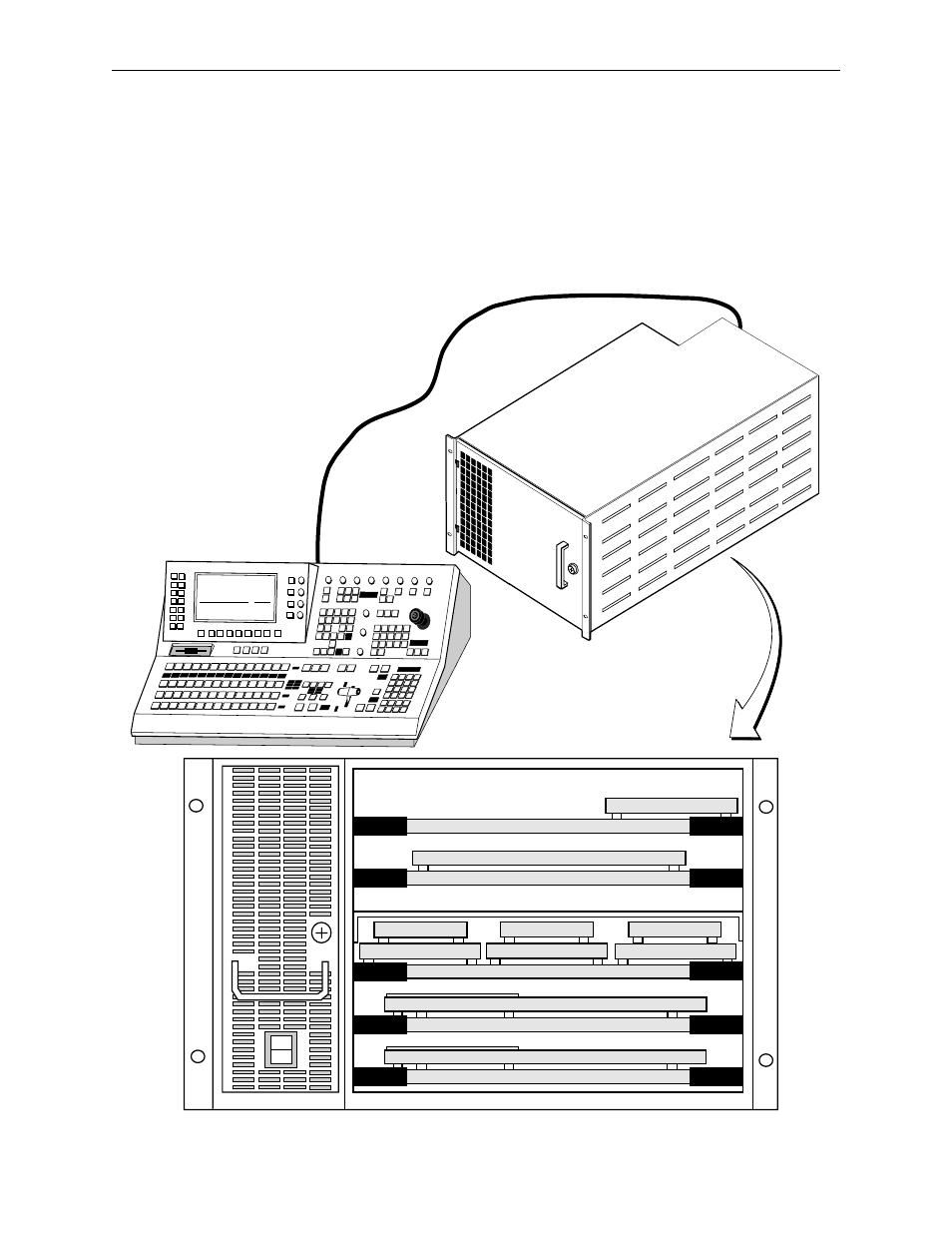

Figure 1-1. Main Assemblies of the Model 1200 Digital Production Switcher
1
0
064911 Control Processor Module
064905 Crosspoint Module
064907 Keyer Module
064910 Program Mixer Module
064910 Preview Mixer Option Module
Power Supply
064914 SPG Submodule
064925 Chroma Keyer Submodule
064908 Key 1 Processor 064908 Key 2 Processor 064908 DSK Processor
064909 Borderline 064909 Borderline 064909 Borderline
064815/912 DAC Option
Control Panel
Signal Processor Frame
Frame Module and Submodule Locations
064913 Depth Option
064913 Depth Option
064815/912 DAC Option
Model
1 200
D I G I T A L
