6
Message Send and Receive Functions
6.1 Message Send Function
6.1.5 Parameter Details for MSG-SND Function
6-11
<When the remote node is another manufacturer's controller>

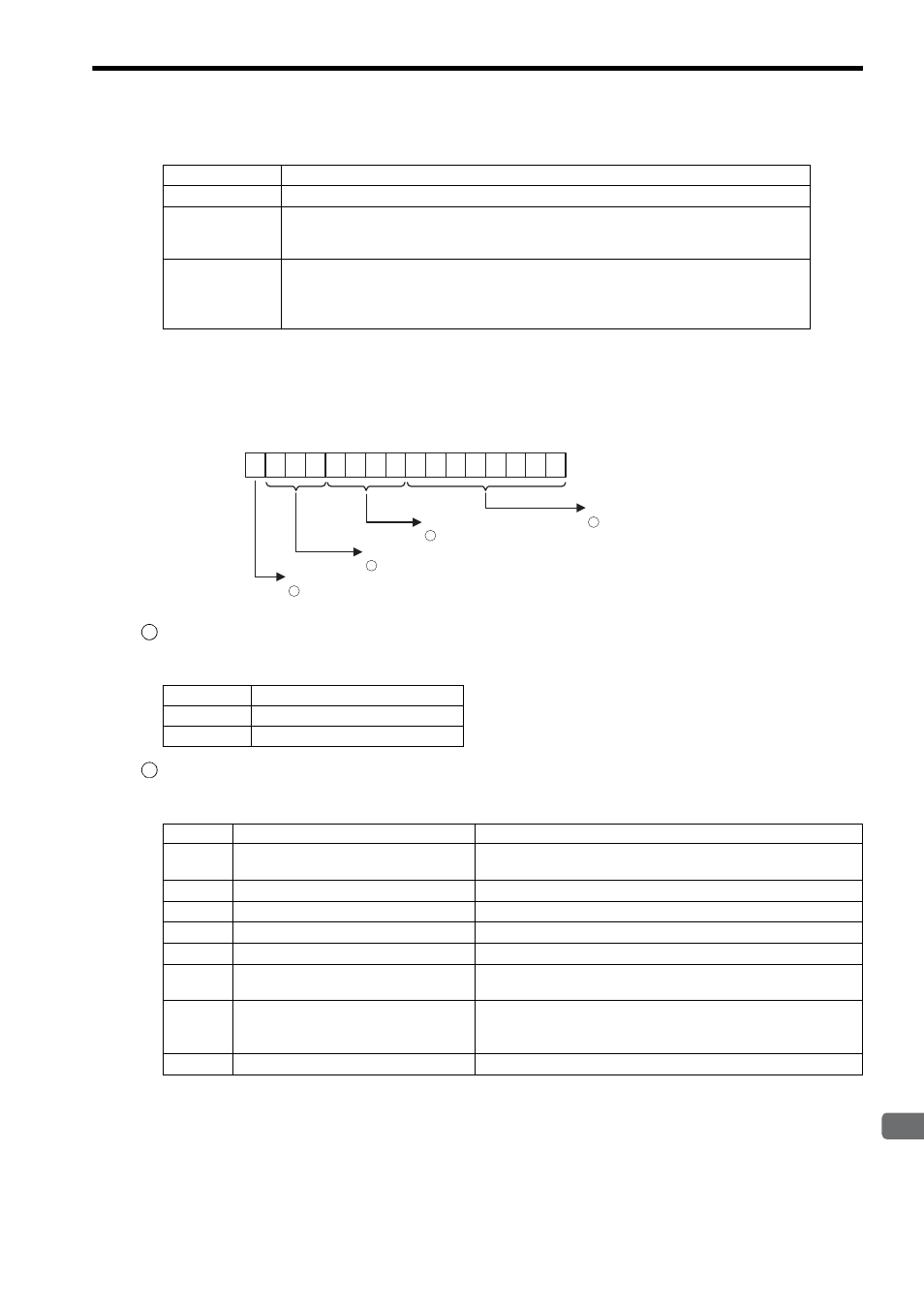

( 2 ) PARAM01: Status
The status of the transmission device is output to PARAM01.
Bit allocations are shown in the following figure and described after the figure.
REQUEST
The status of the processing request for the MSG-SND function is output to this bit.
RESULT
The result of executing MSG-SND function is output to these bits.
Processing Result
Error contents
8072H
Error with error code=80H occurred (Error contents vary depending on manufacturers.)
8172H to FE72H
Error with error code=01H to 7EH occurred (Error contents vary depending on manufacturers.)
Or, error with error code=81H to FFH occurred (Error contents vary depending on manufactur-
ers.)
FF72H
Error with error code=00H occurred (Error contents vary depending on manufacturers.)
Or, error with error code=7FH occurred (Error contents vary depending on manufacturers.)
Or, error with error code=FFH occurred (Error contents vary depending on manufacturers.)
Or, remote device does not respond.
Bit F,
1 REQUEST
F
7
8
6
5
4
3
2
1
0
9
A
B
C
D
E
Bits C to E,
2 RESULT
Bits 8 to B,
3 COMMAND
Bits 0 to 7,
4 PARAMETER
1
Bit Status
Meaning
1
Processing is being requested.
0
Processing request has been accepted.
2
Code Abbreviation
Meaning
0
CONN_NG
Sending or connection has ended abnormally for FL-net communica-
tion.
1
SEND_OK
Sending has been completed normally.
2
REC_OK
Receiving has been completed normally.
3
Abort_OK
Abort completed.
4
FMT_NG
Parameter format error
5
SEQ_NG or INIT_NG
Command sequence error.
Not connected to the transmission system.
6
RESET_NG or O_RING_NG
Reset status or out of ring.
The token could not be received because the token monitoring time
was exceeded.
7
REC_NG
Data receive error (Error detected by a lower-layer program.)
