Super Systems Inc. Page 14 Video Recorder Manual Version 2 Rev. B
Realtime – Choosing this option sets the displayed values to the present date and time.

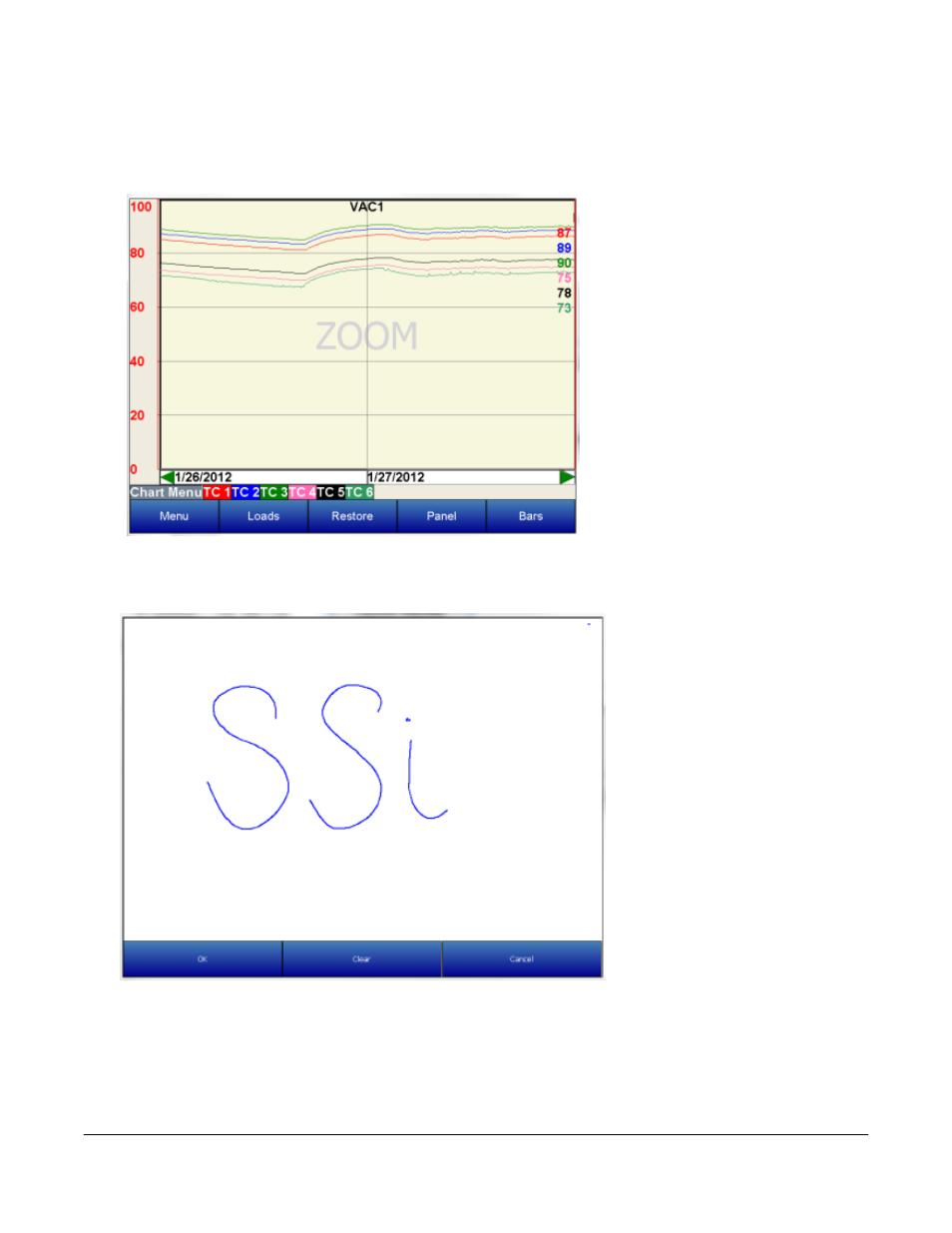

Zoom – This selection allows you to move your stylus or finger on the screen to a specific point creating a
box. The zoom box will also display decimal values for the low and high variables inside the box. It will
display the start and end time for
the zoom box itself. The zoom
feature can be used as often as
desired allowing the user to drill
down on the variable to show a
specific value displayed on the
screen.
Note – the Note feature
available on VR series
recorders allows the operator
to add notes in the chart
display. Notes can be added
using either a stylus or the
keyboard displayed on the
screen. Choose the Add Note
option from the Chart Menu
then select keyboard or stylus
to add a note.
Note on
keyboard functionality –
pressing the “caps” button or
the “shift” button will display
more keys for data entry. Also,
the “del” key works more like
the “Backspace” key on a
regular keyboard – i.e. it will
delete the character to the left
of the cursor
.
If a note requires editing select clear to retype or scribe the note or cancel to go back to the chart display.
