Maestro Channel Branding User Guide

163

5th Step: Input/Output Sets

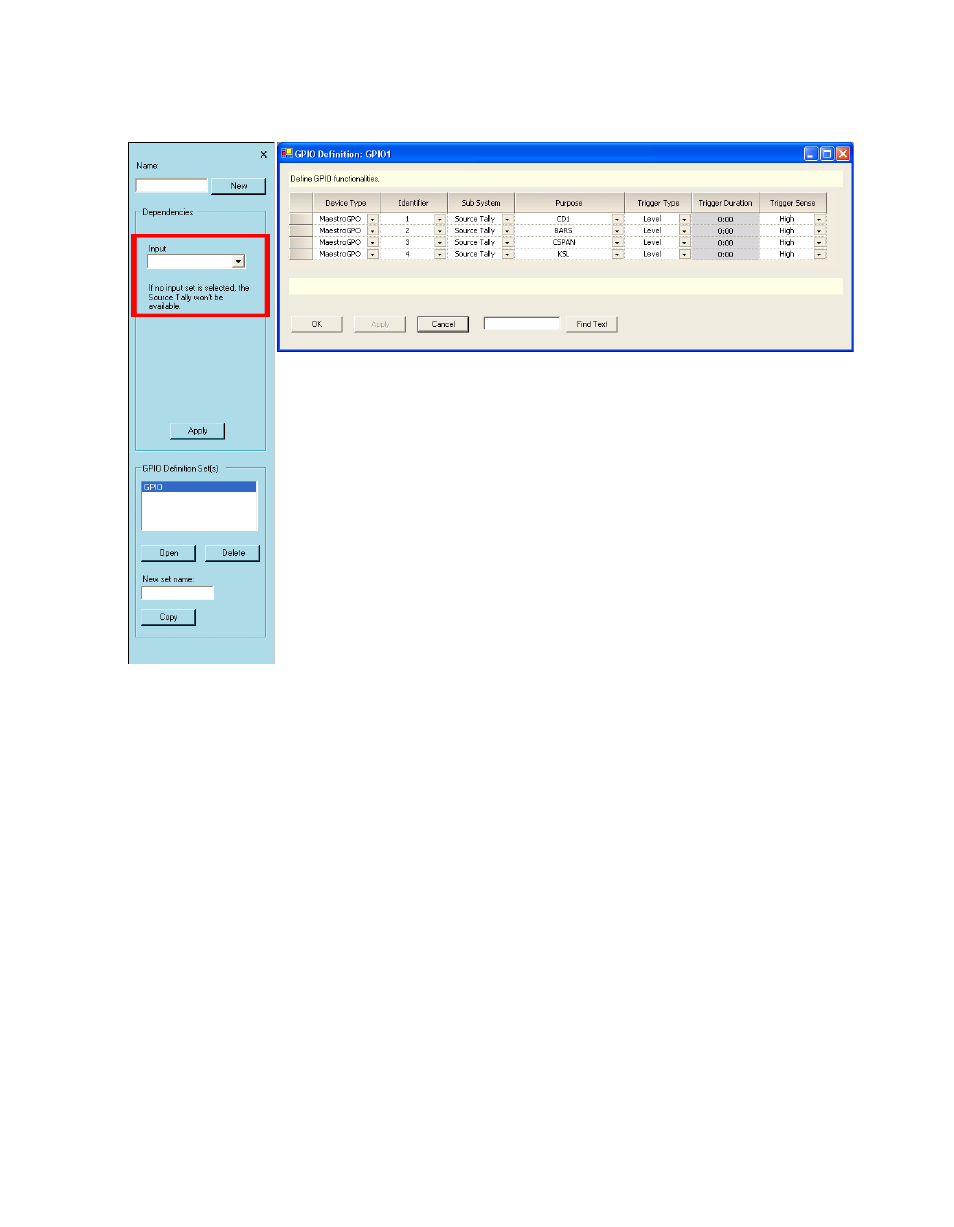

Figure 125. GPIO Definition Table for Source Tally Mode

Device Type

Select “MaestroGPO.”

Identifier

The numbers in this column refer to the 16 GPIO ports on the connector.
Any port from 1 to 16 can be selected in any order.

Trigger Type

Selections are Pulse or Level. When the defined source goes on-air, a
“Level” selection will cause the GPIO contact to go to and remain at the
state selected in the Trigger Sense column (described below).

Trigger Duration

This column applies only when “Pulse” has been selected as the Trigger
Type.
