208
Maestro Channel Branding User Guide
Section 5 — The Maestro Configuration Editor
Channel
Select a Channel Name as previously defined on the Channel Setup table
(
). This channel name will appear on the LCD button to which the
channel is assigned.
Channel Delegation (Control) Sub Panel
This table is used to define the 16 fixed-legend buttons on the Channel
Control sub panel.
When this item is selected, the editor will open a set panel. The set is
assigned to a control panel using the Channel Server table, as described on
Note
The hardware panel is shipped with legends already installed as shown on
. Making entries other than those shown in
will require
changing those legends.

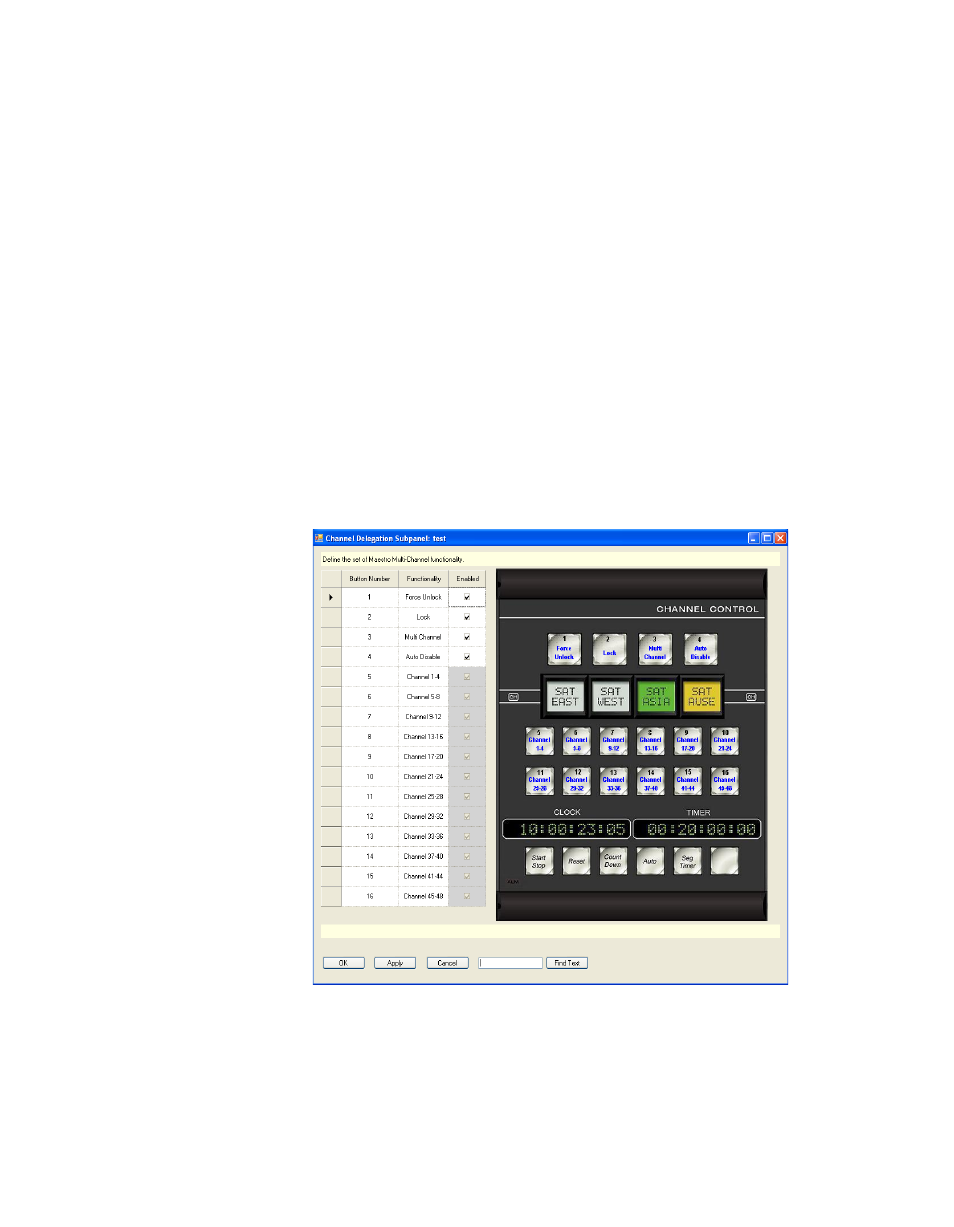

Figure 161. Channel Delegation Sub Panel table (Example)
Button Number
These numbers correspond to the 16 fixed-legend buttons.
