216 Maestro Channel Branding User Guide
Section 5 — The Maestro Configuration Editor
tion table. These are the files that are deployed to the Maestro hardware
with the Deployment Center.

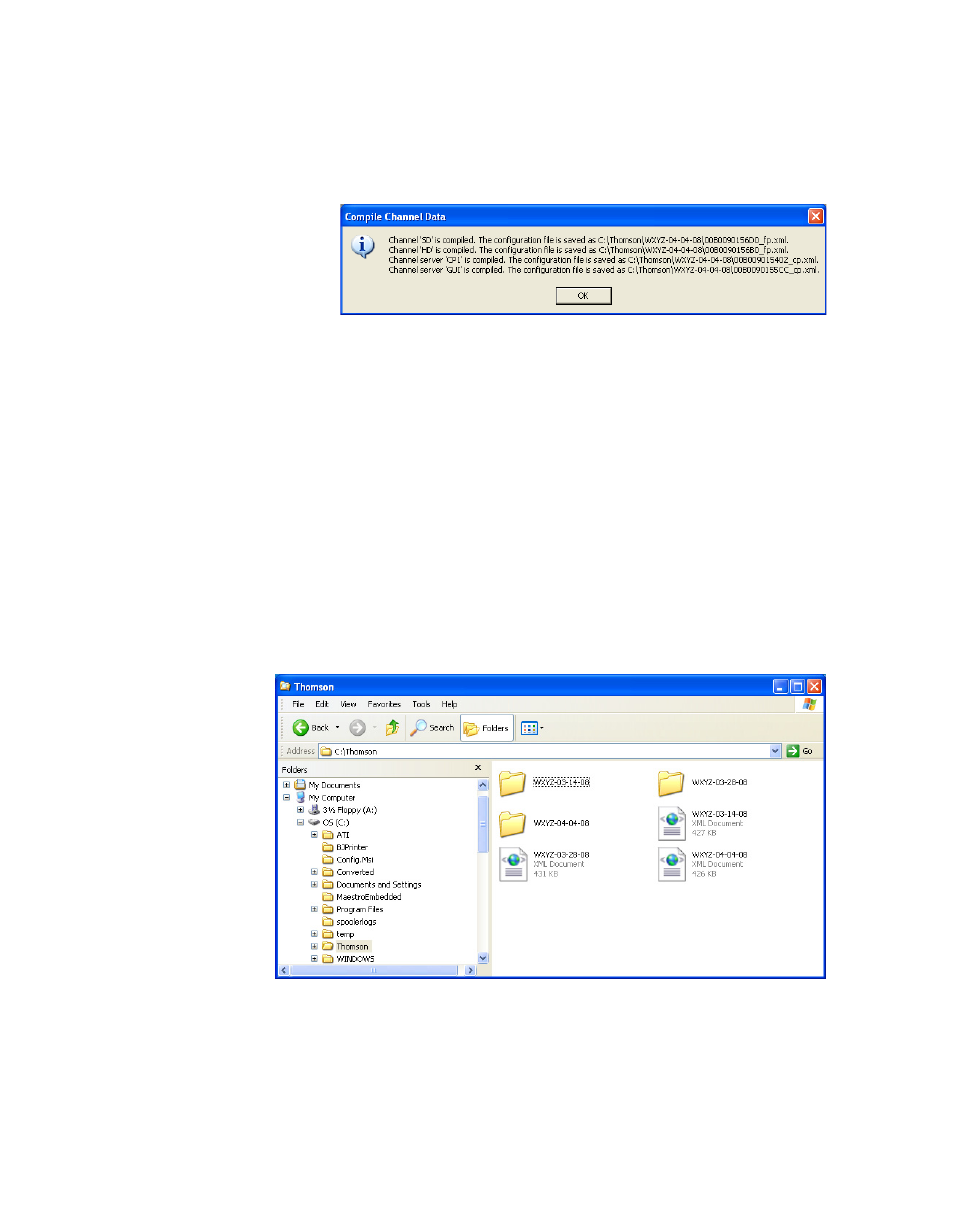

Figure 170. Configuration Editor Compile Channel Data
Configuration Files
When a configuration is saved, an .xml file with the name of the saved file
is created in:
C:\Thomson (this is the default location unless another location is speci-
fied)
For example, a configuration file named WXYZ-04-04-08 would be saved as
C:\Thomson\WXYZ-04-04-08.xml
Figure 171 shows a directory listing for C:\Thomson in which three .xml
files exist, indicating that three configurations have been saved.
Figure 171. Saved Configuration Files
When a configuration file is compiled, a subdirectory with the same name
as the saved configuration is created. This subdirectory contains individual
.xml files for each component in the Network Description table as seen in
Figure 170 .
