Parts
powermax
65/85 Service Manual 7-11
85A CE

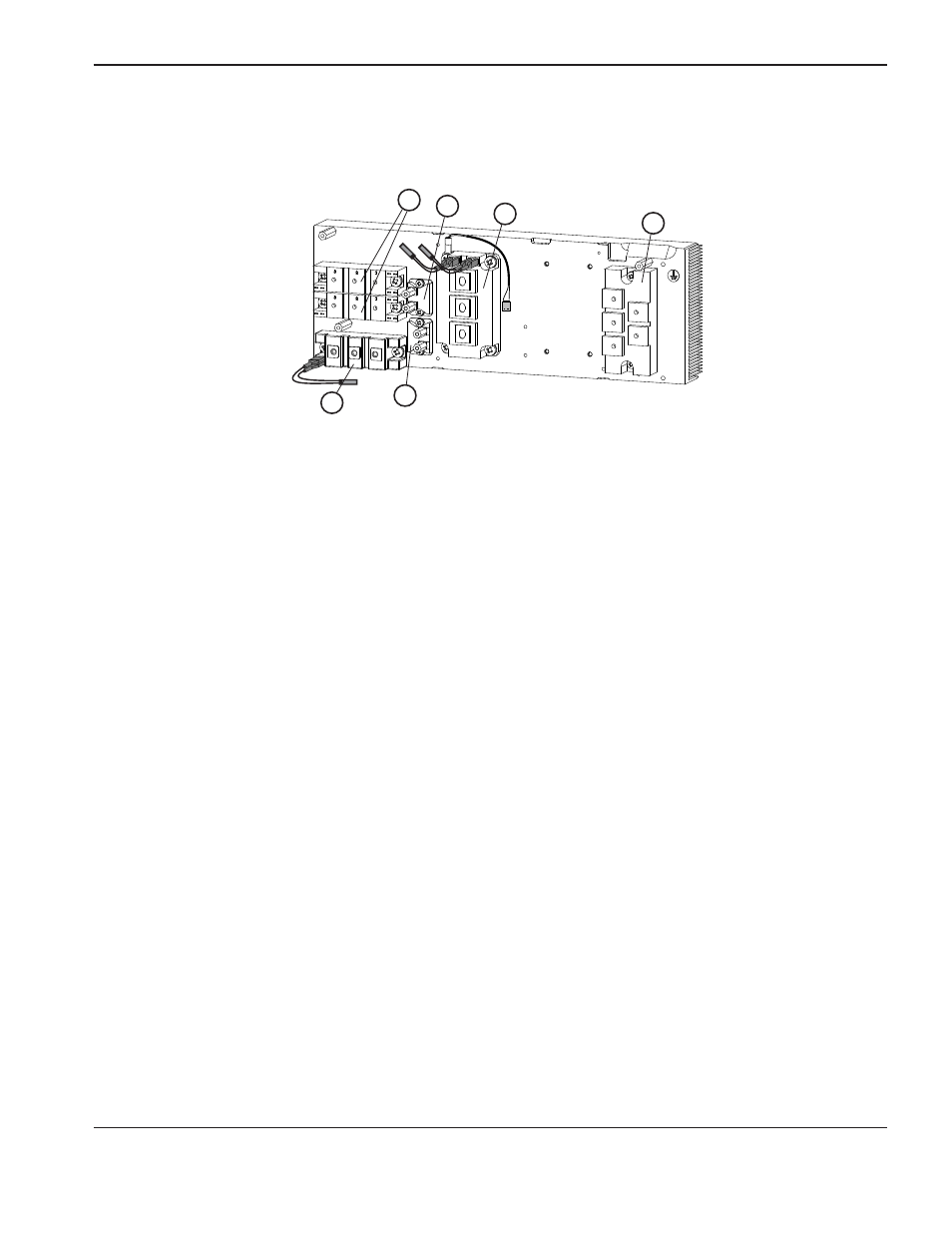

Item Part number Description
1 228804 Kit: Powermax85 output diode bridge
2 228693 Kit: Powermax65 and Powermax85 5 Ω snubber resistor
3 228702 Kit: Powermax85 CE inverter IGBT
4 228742 Kit: Powermax85 CSA/CE, Powermax85 CE input diode bridge
5 228701 Kit: Powermax85 pilot arc IGBT
6 228706 Kit: Powermax65 and Powermax85 15 Ω snubber resistor
127128 Thermal grease, T-grease 2500, 10cc
1
2
3
4
5
6
