Powermax30 AIR Service Manual 808850 99
6 – Power Supply Component Replacement
Install the power supply cover
1. Being careful not to pinch any wires, slide the cover onto the power supply. Align the bottom edges with the tracks,
and align the slot in the top of the cover with the tab on the front panel so that the largest louvers in the
cover are in front of the fan.

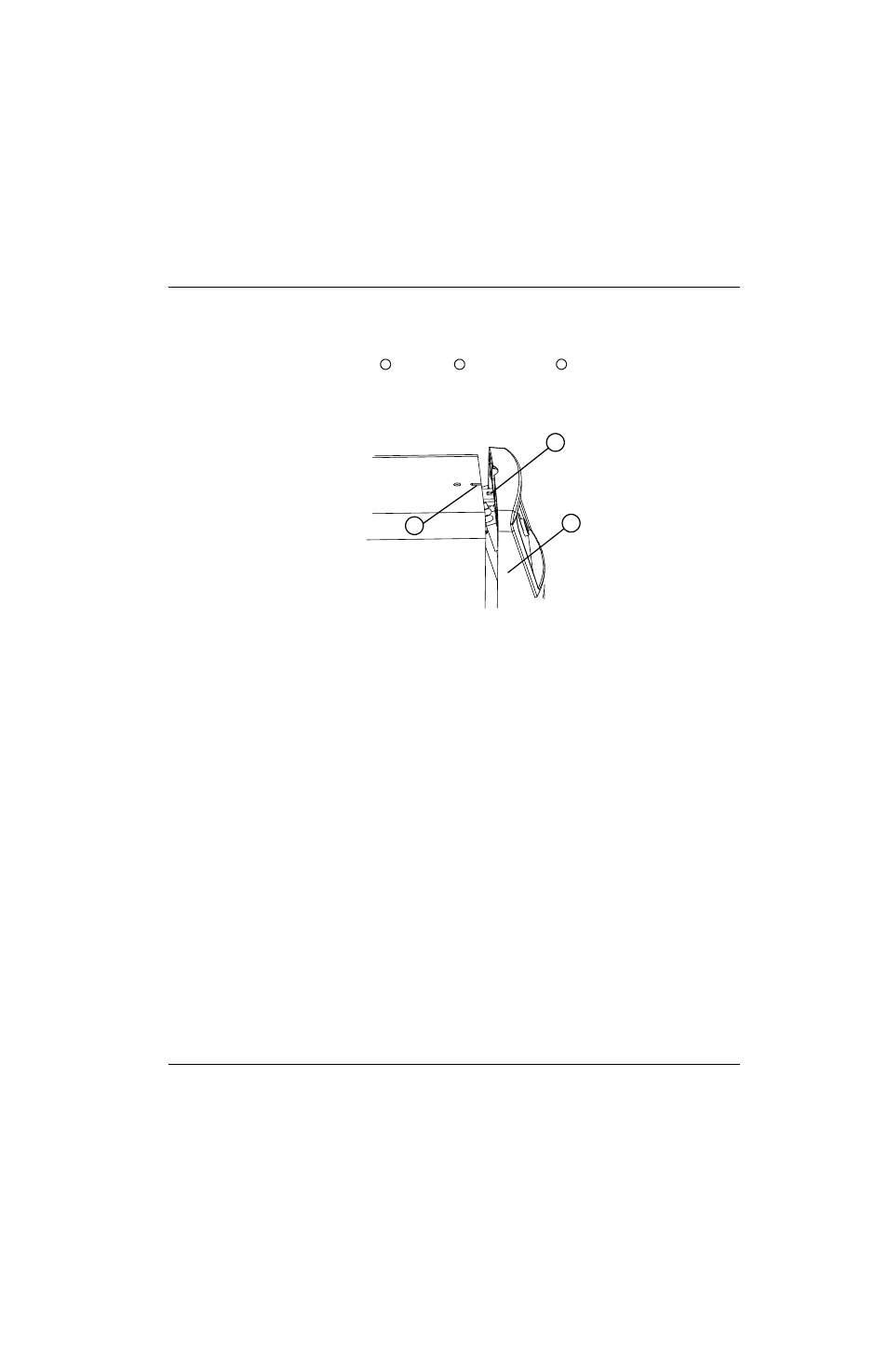

Figure 23
2. Realign the front panel with the power supply.
3. Realign the rear panel with the power supply, making sure that the hole in the ground clip aligns with the screw holes
in both the panel and the power supply.
4. Position the handle over the holes in the top of the cover, and position the ends of the handle underneath the edges
of the panels.
 You may find it easier to install the screw near the rear panel before installing the screw
near the front panel.
5. Install the 2 screws that attach the cover and handle. Tighten the screws to 23.0 kg∙cm (20 inch·pounds).
6. Reconnect the power cord, and set the power switch to ON (I).
1 2 3
1
2
3
