SECTION 6
• INSTALLATION
General
DGC-2020 controllers are delivered in sturdy cartons to prevent shipping damage. Upon receipt of a unit,
check the part number against the requisition and packing list for agreement. Inspect for damage, and if
there is evidence of such, immediately file a claim with the carrier and notify the Basler Electric regional
sales office or your sales representative.
If the device is not installed immediately, store it in the original shipping package in a moisture- and dust-
free environment.
Hardware
DGC-2020 controllers are packaged for mounting in any top-mount enclosure. The front panel is resistant
to moisture, salt fog, humidity, dust, dirt, and chemical contaminants. DGC-2020 controllers are mounted
using the four permanently attached 10-24 studs. The torque applied to the mounting hardware should
not exceed 25 inch-pounds (2.8 Newton meters).
Mounting
Panel cutting and drilling dimensions are shown in Figure 6-1. The horizontal drilling measurement of
10.75 inches has a tolerance of +0.01/
–0.01 inches. The horizontal cutout measurement of 10.38 inches
has a tolerance of +0.04/-0 inches. The vertical drilling measurement of 7.25 inches has a tolerance of
+0.01/-0.01 inches. The vertical cutout measurement of 6.88 inches has a tolerance of +0.04/-0. Overall
dimensions are shown in Figure 6-2. All dimensions are shown in inches with millimeters in parenthesis.

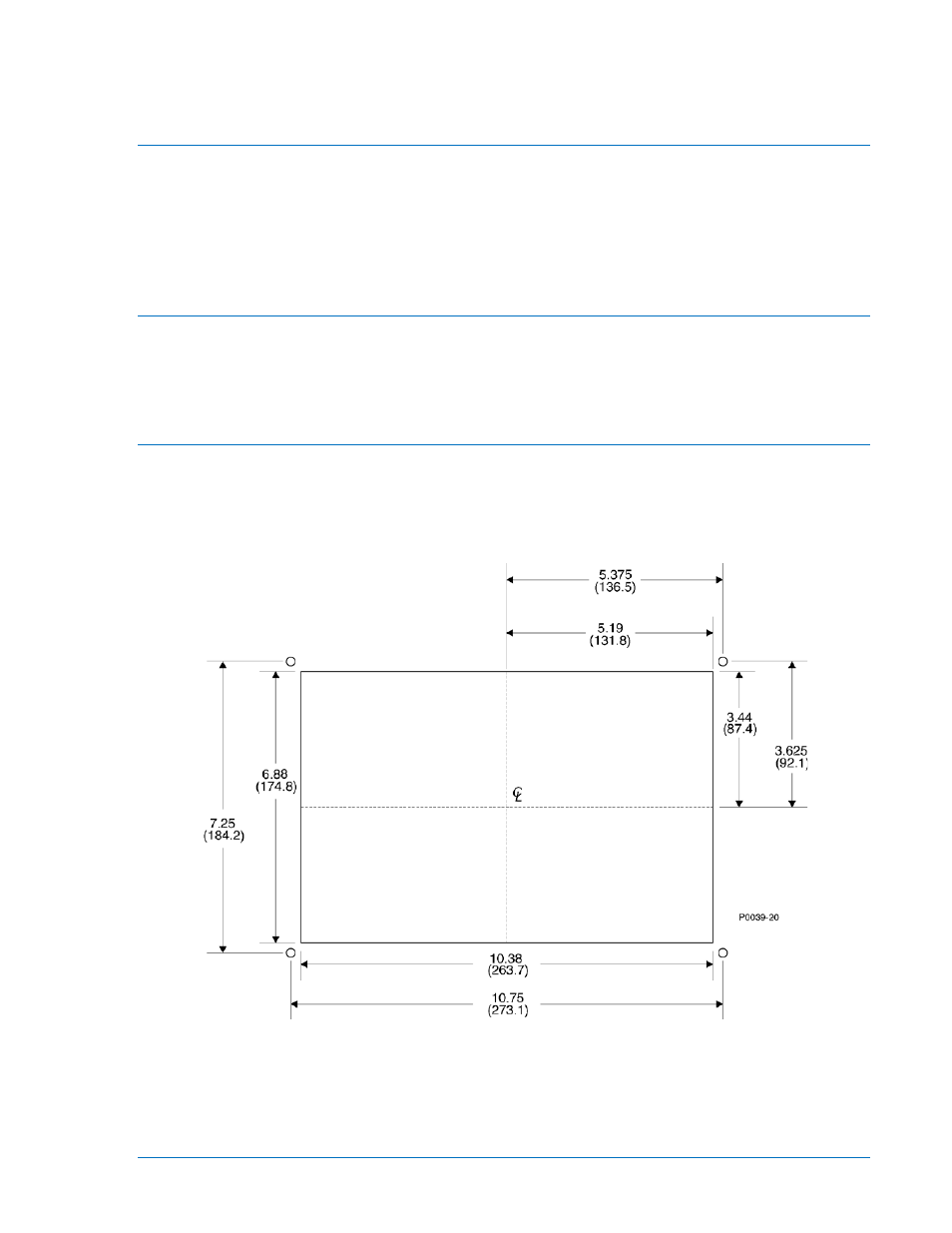

Figure 6-1. Panel Cutting and Drilling Dimensions
9400200990 Rev X DGC-2020 Installation 6-1
