Programming: Fundamentals, File Management
3.2 Opening programs and entering
3
106
TNC 640 | User's Manual
HEIDENHAIN Conversational Programming | 1/2015

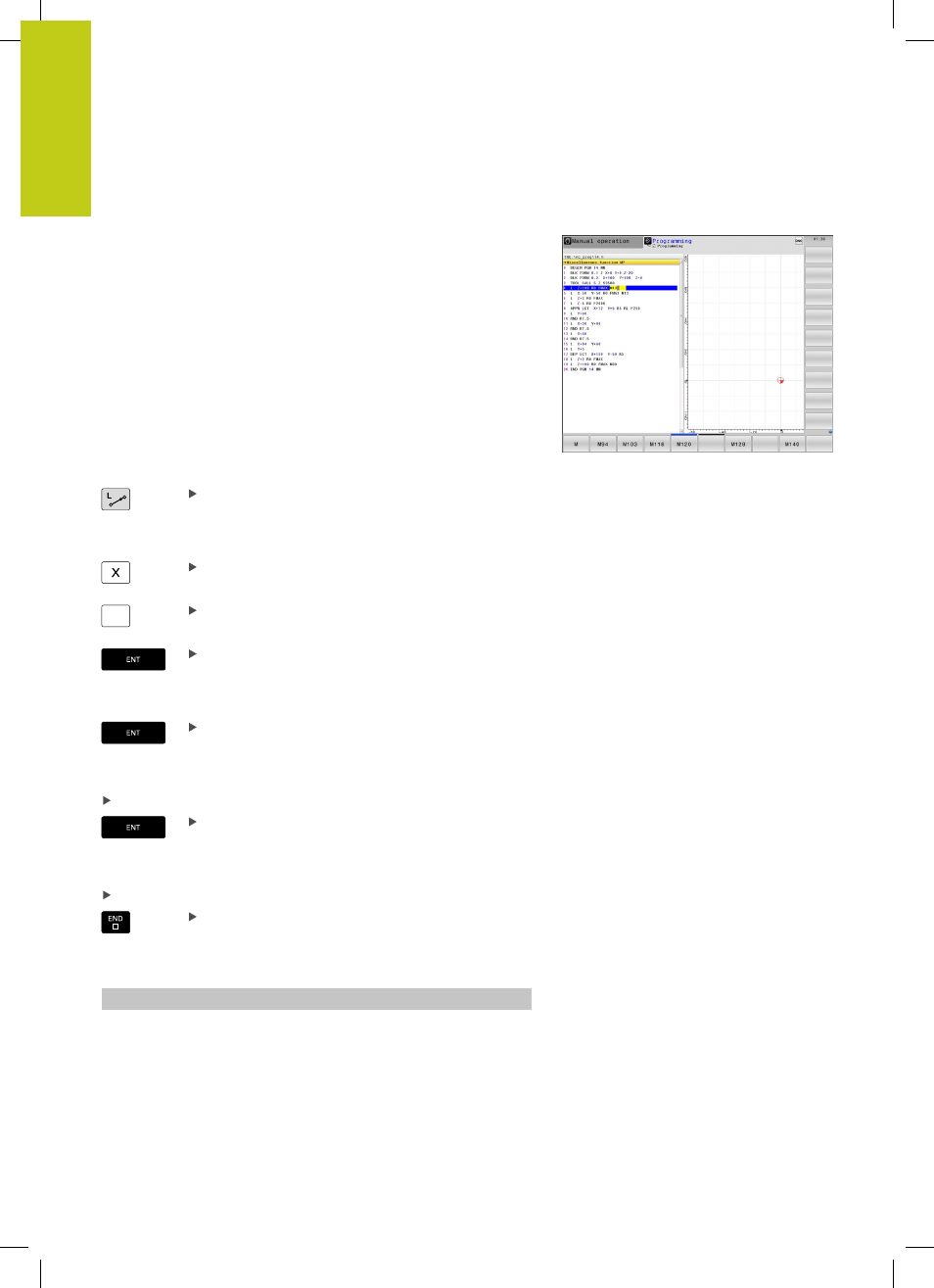

Programming tool movements in conversational
To program a block, initiate the dialog by pressing a function key. In
the screen headline, the TNC then asks you for all the information
necessary to program the desired function.
Example of a positioning block
Open block
COORDINATES ?
10 (Enter the target coordinate for the X axis)
Y
20 (Enter the target coordinate for the Y axis)
go to the next question with ENT.
RADIUS COMP.: RL/RR/NO COMP.?
Enter "No radius compensation" and go to the next
question with ENT.
FEED RATE F=? / F MAX = ENT
100 (Enter a feed rate of 100 mm/min for this path contour)
go to the next question with ENT.
MISCELLANEOUS FUNCTION M ?
Enter
3 (miscellaneous function M3 "Spindle ON").
With the END key, the TNC ends this dialog.
The program-block window displays the following line:
3 L X+10 Y+5 R0 F100 M3
