Status displays 2.4
2
TNC 640 | User's Manual
HEIDENHAIN Conversational Programming | 1/2015
79

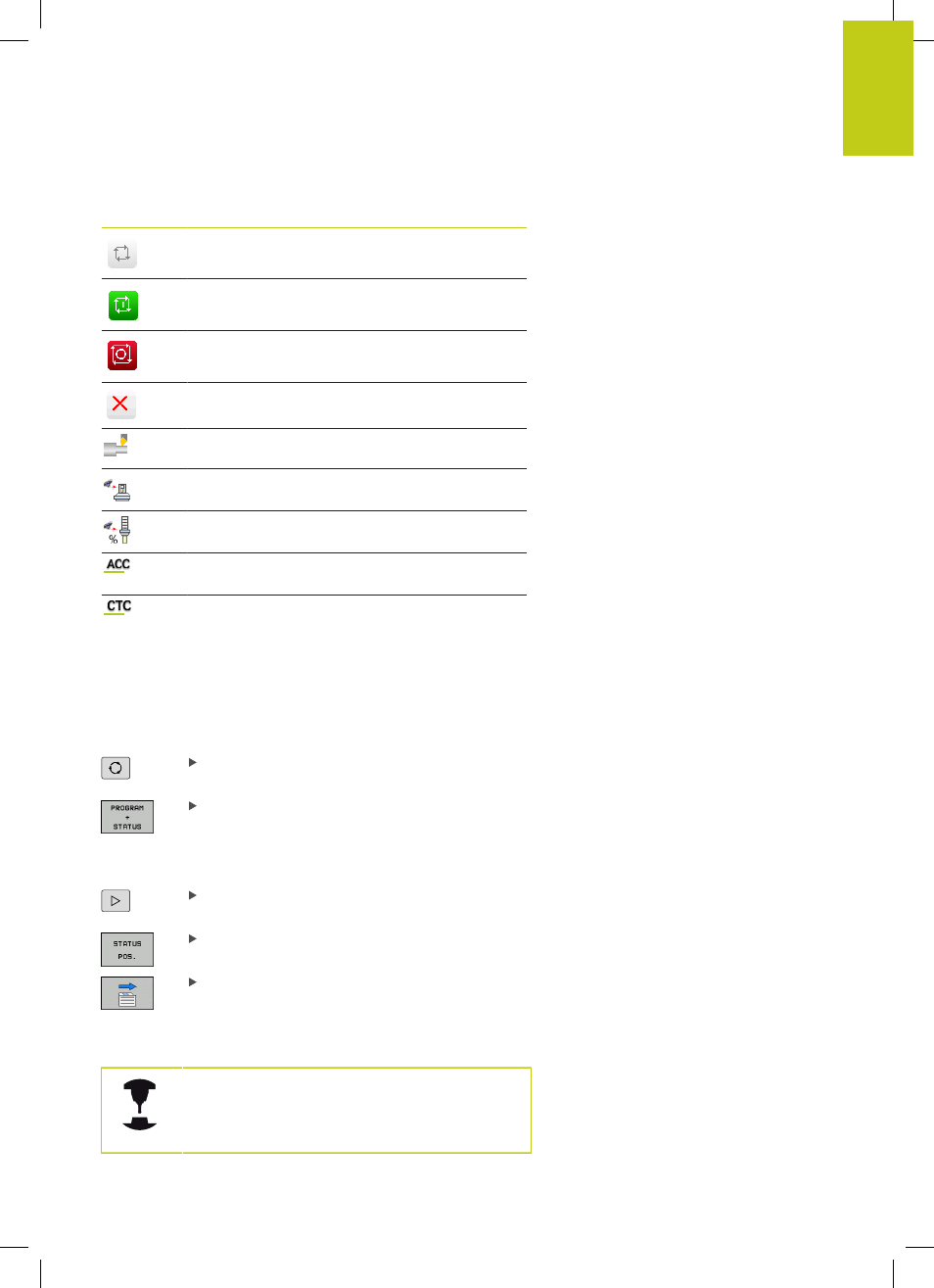

Icon Meaning
No active program
Program run has started
Program run is stopped
Program run is being aborted
Turning mode is active
The Dynamic Collision Monitoring function (DCM)
is active (Option #40)
The Adaptive Feed Function (AFC) is active
(Option #45)
The Active Chatter Control feature (ACC) is active
(Option #145)
The CTC function is active (Option #141)
Additional status displays
The additional status displays contain detailed information on the
program run. They can be called in all operating modes except for
the
Programming mode of operation.
To switch on the additional status display
Call the soft-key row for screen layout
Select the screen layout with additional status
display: In the right half of the screen, the TNC
shows the
OVERVIEW status form
To select an additional status display
Switch the soft-key rows until the STATUS soft
keys appear
Either select the additional status display directly
by soft key, e.g. positions and coordinates, or
use the switch-over soft keys to select the desired
view
The available status displays described below can be selected
either directly by soft key or with the switch-over soft keys.
Please note that some of the status information
described below is not available unless the
associated software option is enabled on your TNC.
