The PLANE Function: Tilting the working plane (Software Option 8) 12.2
12
TNC 640 | User's Manual
HEIDENHAIN Conversational Programming | 1/2015
445
Input parameters

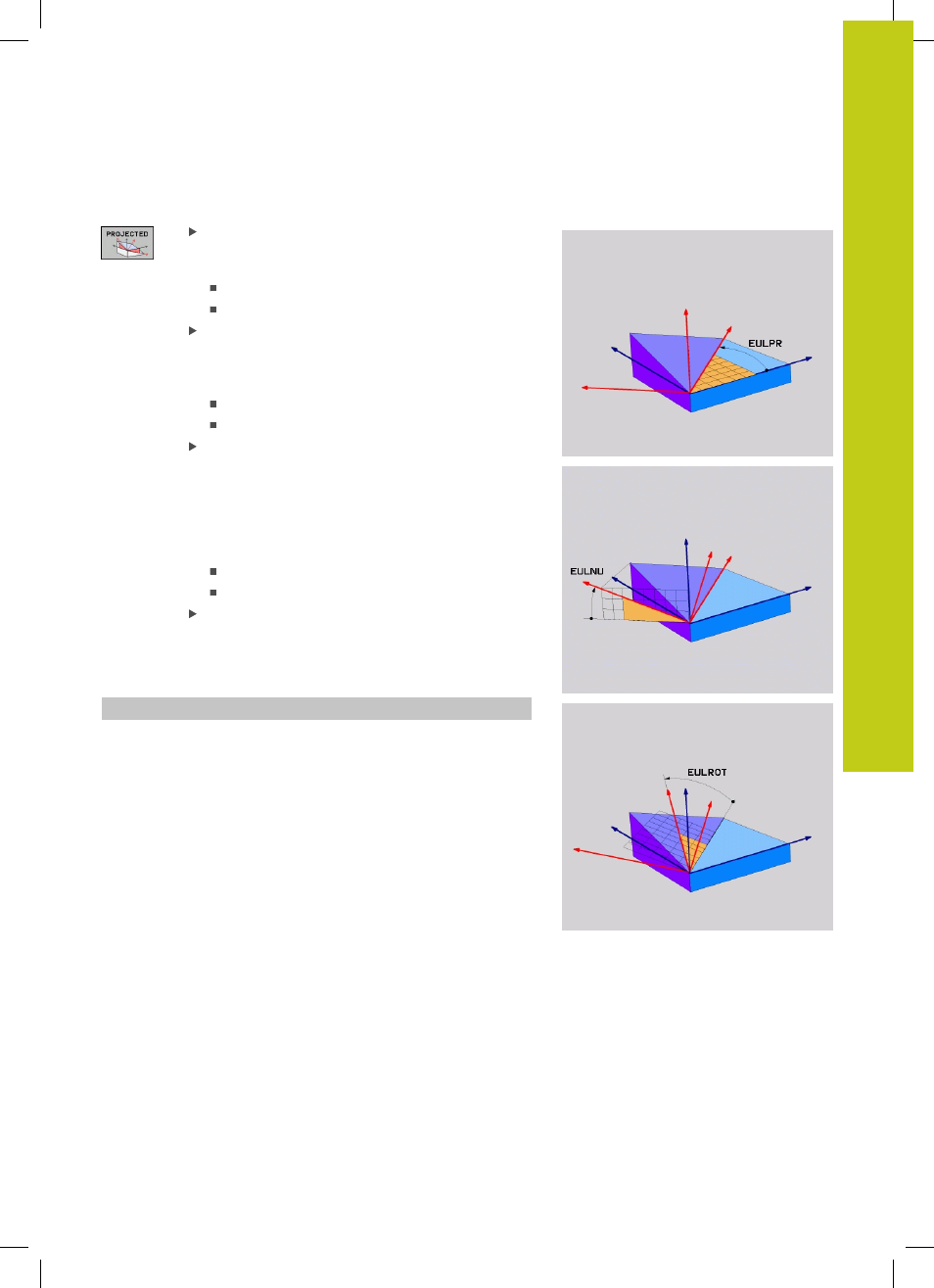

Rot. angle of main coord. plane?: Rotary angle
EULPR around the Z axis (see figure at top right).
Please note:
Input range: -180.0000° to 180.0000°
The 0° axis is the X axis
Swivel angle of tool axis?: Tilting angle EULNU of
the coordinate system around the X axis shifted by
the precession angle (see figure at center right).
Please note:
Input range: 0° to 180.0000°
The 0° axis is the Z axis
ROT angle of tilted plane?: Rotation EULROT
of the tilted coordinate system around the tilted
Z axis (corresponds to a rotation with Cycle 10
ROTATION). Use the rotation angle to simply
define the direction of the X axis in the tilted
machining plane (see figure at bottom right).
Please note:
Input range: 0° to 360.0000°
The 0° axis is the X axis
Continue with the positioning properties, see
"Specifying the positioning behavior of the PLANE
function", page 453
NC block
5 PLANE EULER EULPR45 EULNU20 EULROT22 .....
