Programming: Turning Operations
14.5 Turning program functions (Option #50)
14
510
TNC 640 | User's Manual
HEIDENHAIN Conversational Programming | 1/2015

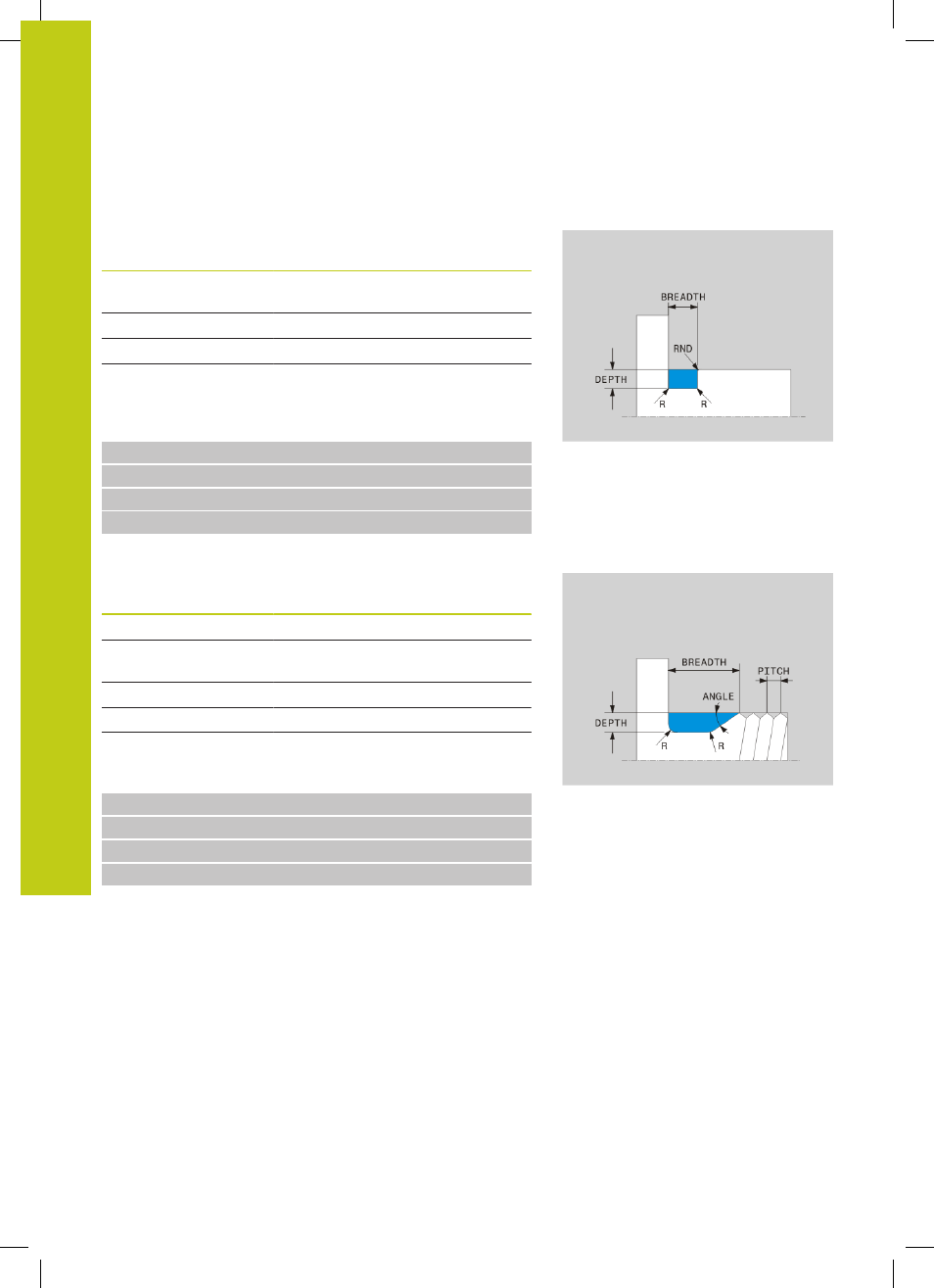

Undercut UDC TYPE_U
Input elements in undercut UDC TYPE_U
Input element Application Input
R Corner radius of both
inner corners Required
DEPTH Undercut depth Required
BREADTH Undercut width Required
RND / CHF
Curve / chamfer of
outer corner Required
Undercut form U: depth = 3, width = 8
21 L X+40 Z+0
22 L Z-30
23 UDC TYPE_U R1 DEPTH3 BREADTH8 RND1
24 L X+60
Undercut UDC THREAD
Input elements in undercut DIN 76
UDC THREAD
Input element Application Input
PITCH
Thread pitch Optional
R
Corner radius of both
inner corners Optional
DEPTH
Undercut depth Optional
BREADTH
Undercut width Optional
ANGLE Undercut angle Optional
Thread undercut according to DIN 76: Thread pitch = 2
21 L X+40 Z+0
22 L Z-30
23 UDC THREAD PITCH2
24 L X+60
