The PLANE Function: Tilting the working plane (Software Option 8) 12.2
12
TNC 640 | User's Manual
HEIDENHAIN Conversational Programming | 1/2015
449

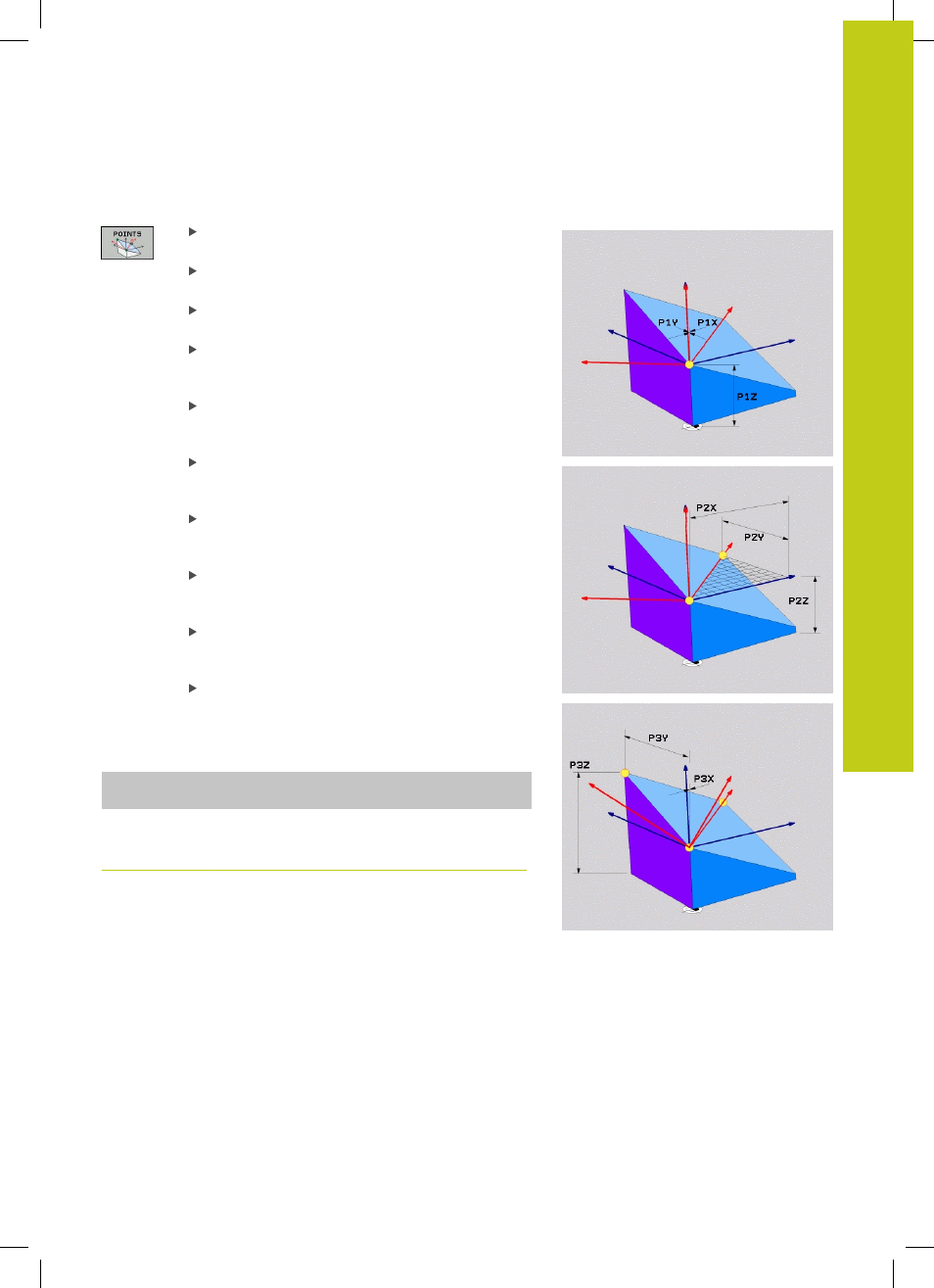

Input parameters
X coordinate of 1st plane point?: X coordinate
P1X of the 1st plane point (see figure at top right)
Y coordinate of 1st plane point?: Y coordinate
P1Y of the 1st plane point (see figure at top right)
Z coordinate of 1st plane point?: Z coordinate
P1Z of the 1st plane point (see figure at top right)
X coordinate of 2nd plane point?: X coordinate
P2X of the 2nd plane point (see figure at center
right)
Y coordinate of 2nd plane point?: Y coordinate
P2Y of the 2nd plane point (see figure at center
right)
Z coordinate of 2nd plane point?: Z coordinate
P2Z of the 2nd plane point (see figure at center
right)
X coordinate of 3rd plane point?: X coordinate
P3X of the 3rd plane point (see figure at bottom
right)
Y coordinate of 3rd plane point?: Y coordinate
P3Y of the 3rd plane point (see figure at bottom
right)
Z coordinate of 3rd plane point?: Z coordinate
P3Z of the 3rd plane point (see figure at bottom
right)
Continue with the positioning properties, see
"Specifying the positioning behavior of the PLANE
function", page 453
NC block
5 PLANE POINTS P1X+0 P1Y+0 P1Z+20 P2X+30 P2Y+31 P2Z+20 P3X
+0 P3Y+41 P3Z+32.5 .....
Abbreviations used
Abbreviation Meaning
POINTS
Points
