Test run and program run
17.1 Graphics
17
590
TNC 640 | User's Manual
HEIDENHAIN Conversational Programming | 1/2015

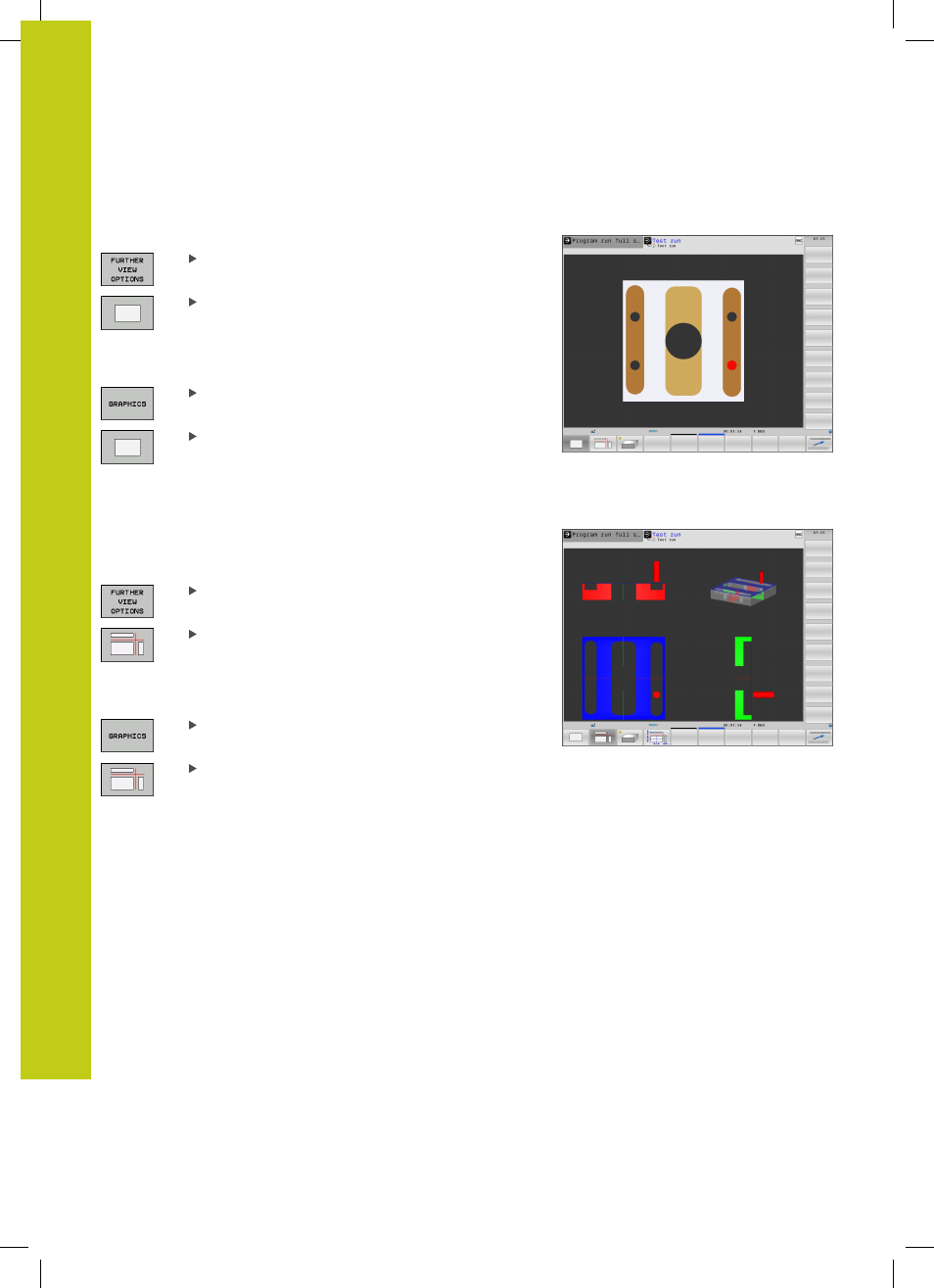

Plan view
Select the plan view in the
Test Run operating mode:
Press the
FURTHER VIEW OPTIONS soft key
Press the plan-view soft key
Select the plan view in the
Program Run, Single Block and
Program Run, Full Sequence operating modes:
Press the
GRAPHICS soft key
Press the plan-view soft key
Projection in three planes
The simulation shows three sectional planes and a 3-D model,
Similar to a technical drawing.
Select projection in three planes in the
Test Run operating mode:
Press the
FURTHER VIEW OPTIONS soft key
Press the view-in-three-planes soft key
Select projection in three planes in the
Program Run, Single Block
and
Program Run, Full Sequence operating modes:
Press the
FURTHER VIEW OPTIONS soft key
Press the view-in-three-planes soft key
