11.5 Working with the Parallel Axes U, V
and W
Overview
Your machine must be configured by the machine
manufacturer if you want to use parallel-axis
functions.
Depending on the configuration, the PARAXCOMP
function may be activated as standard.
Refer to your machine manual.

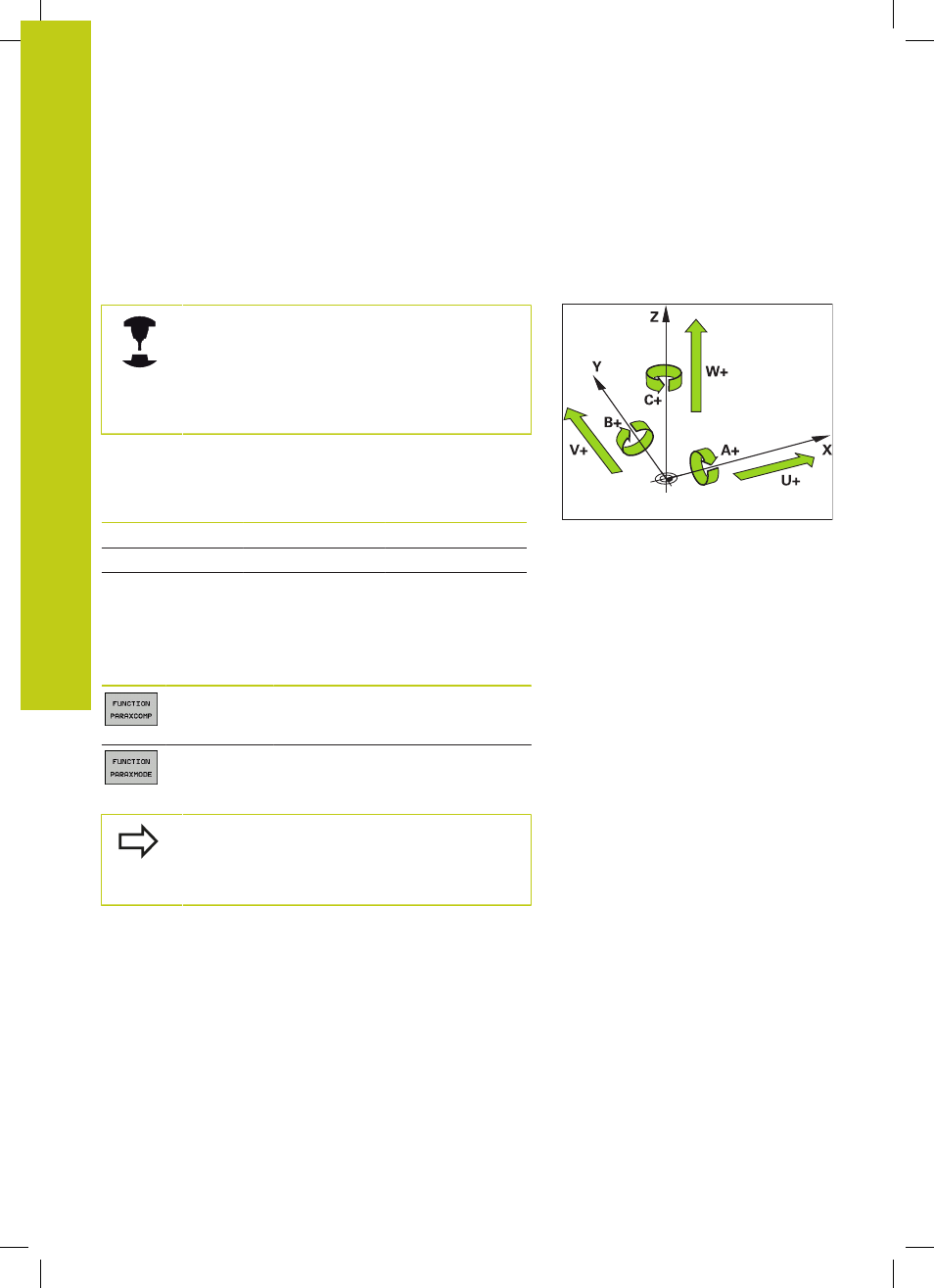

The axes U, V and W are secondary axes parallel to the principal
axes X, Y and Z, respectively. Principal axes and parallel axes are
permanently assigned to each other.
Principal axis Parallel axis Rotary axis
X U A
Y V B
Z W C
The TNC provides the following functions for machining with the
parallel axes U, V and W:
Soft
key Function Meaning Page
PARAXCOMP Define the TNC's
behavior when
positioning parallel axes 416
PARAXMODE
Define the axes the
TNC is to use for
machining 416
After the TNC is started up, the standard
configuration is always effective.
You must deactivate the parallel-axis functions before
switching the machine kinematics.
