The PLANE Function: Tilting the working plane (Software Option 8) 12.2
12
TNC 640 | User's Manual
HEIDENHAIN Conversational Programming | 1/2015
439

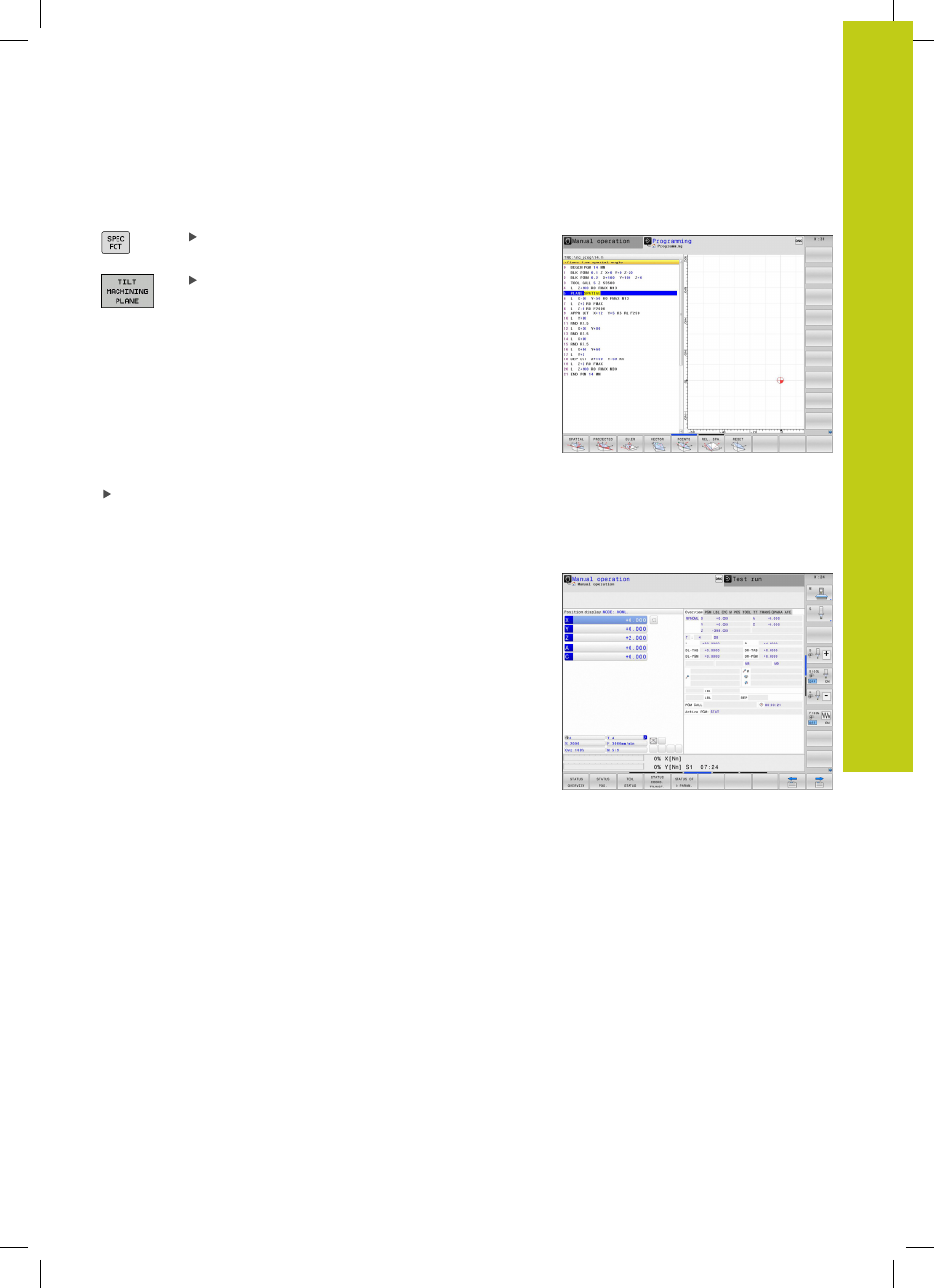

Defining the PLANE function
Show the soft-key row with special functions
Select the
PLANE function: Press the TILT
MACHINING PLANE soft key: The TNC displays the
available definition possibilities in the soft-key row
Selecting functions
Select the desired function by soft key. The TNC continues the
dialog and requests the required parameters
Position display
As soon as a
PLANE function is active, the TNC shows the
calculated spatial angle in the additional status display (see figure).
As a rule, the TNC internally always calculates with spatial angles,
independent of which
PLANE function is active.
During tilting (
MOVE or TURN mode) in the Distance-To-Go mode
(
DIST), the TNC shows (in the rotary axis) the distance to go (or
calculated distance) to the final position of the rotary axis.
