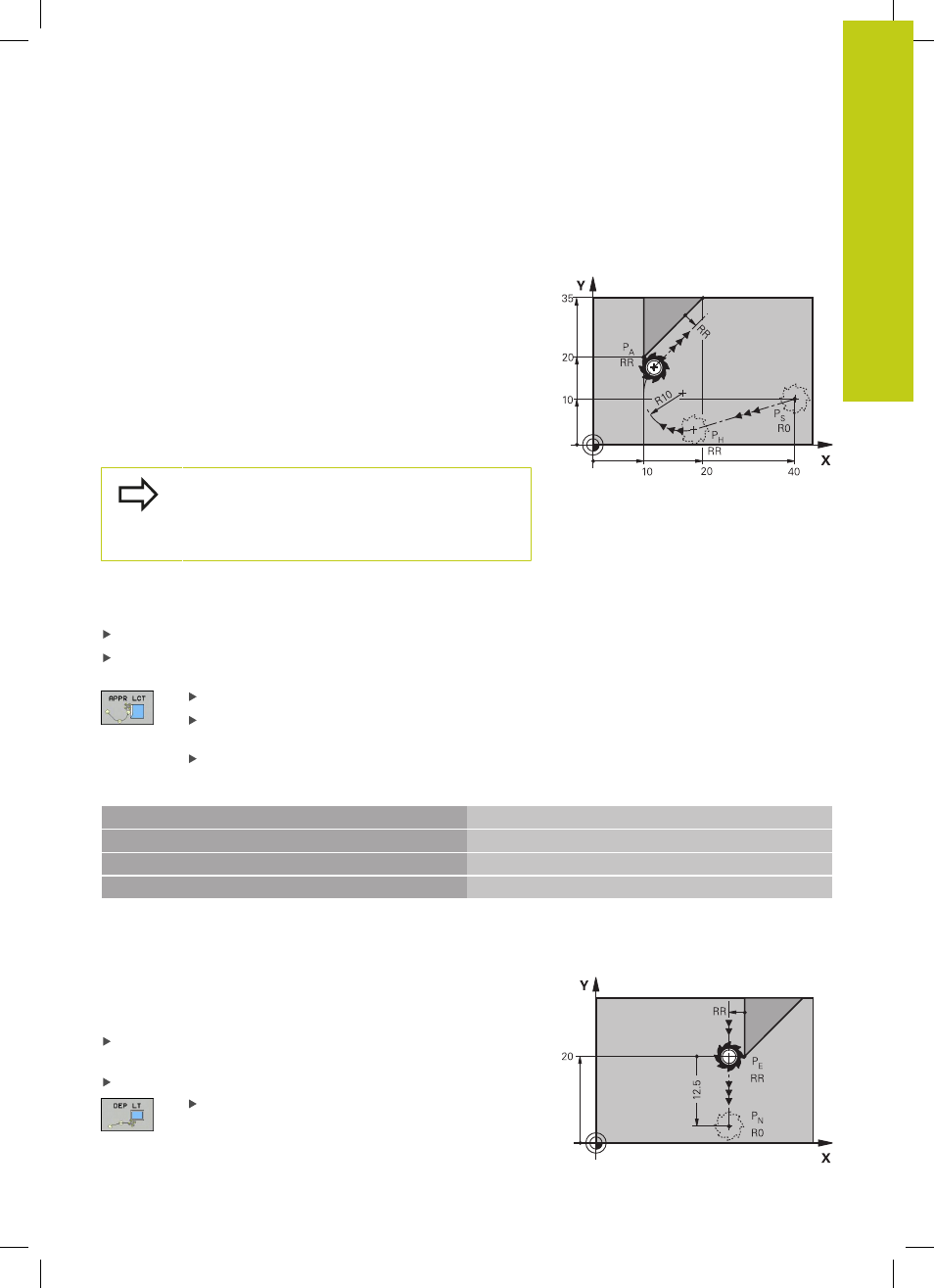

Approaching on a circular path with tangential
connection from a straight line to the contour:
APPR LCT
The tool moves on a straight line from the starting point P
S
to
an auxiliary point P
H
. It then moves to the first contour point P
A
on a circular arc. The feed rate programmed in the APPR block is
effective for the entire path that the TNC traversed in the approach
block (path P
S
to P
A
).
If you program all three principal axes X, Y and Z in the approach
block, the TNC initially traverses the tool from the starting point P
S
in the working plane, and then in the tool axis on the auxiliary point
P
H
. The control only traverses the tool in the working plane from
auxiliary point P
H
to the contour point P
A
.
Consider this behavior when importing programs
from earlier controls. Adapt the program if required.
Earlier controls traverse the auxiliary point P
H
in all
three principal axes simultaneously.
The arc is connected tangentially both to the line P
S
–P
H
as well
as to the first contour element. Once these lines are known, the
radius then suffices to completely define the tool path.
Use any path function to approach the starting point P
S
.
Initiate the dialog with the APPR/DEP key and APPR LCT soft
key:
Coordinates of the first contour point P
A
Radius R of the circular arc. Enter R as a positive
value
Radius compensation RR/RL for machining
Example NC blocks
7 L X+40 Y+10 R0 FMAX M3 Approach PS without radius compensation
8 APPR LCT X+10 Y+20 Z-10 R10 RR F100 PA with radius compensation RR, radius R=10
9 L X+20 Y+35 End point of the first contour element
10 L ... Next contour element
Departing in a straight line with tangential
connection:
DEP LT
The tool moves on a straight line from the last contour point P
E
to
the end point P
N
. The line lies on the extension of the last contour
element. P
N
is separated from P
E
by the distance
LEN.
Program the last contour element with the end point P
E
and
radius compensation
Initiate the dialog with the
APPR/DEP key and DEP LT soft key:
LEN: Enter the distance from the last contour
element P
E
to the end point P
N
.
