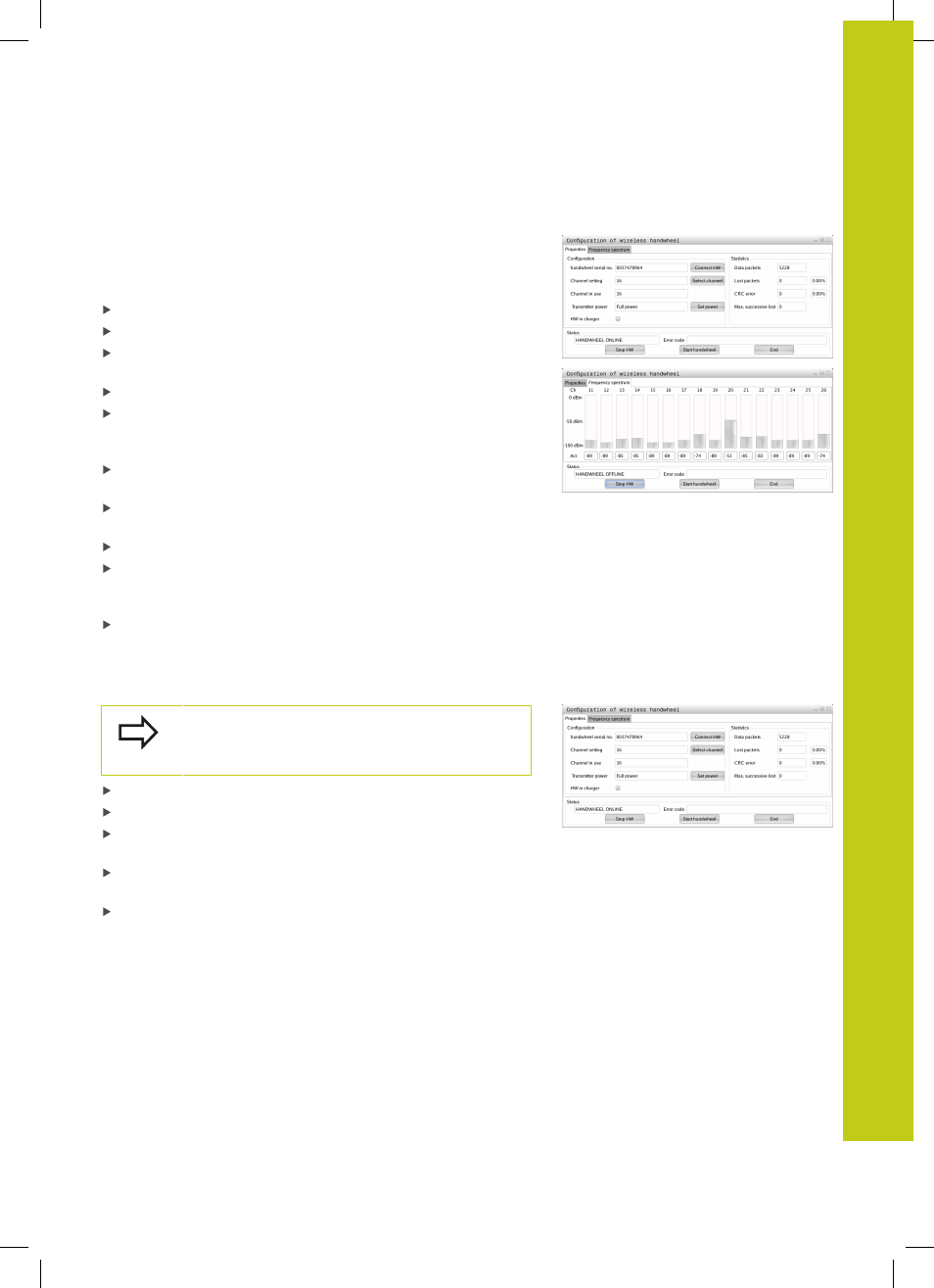

Setting the transmission channel
If the wireless handwheel is started automatically, the TNC tries to
select the transmission channel supplying the best transmission
signal. If you want to set the transmission channel manually,
proceed as follows:
Press the
MOD key to select the MOD function
Select the
Machine settings menu
Select the configuration menu for the wireless handwheel:
Press the
SET UP WIRELESS HANDWHEEL soft key
Click the
Frequency spectrum tab
Click the
Stop HR button: The TNC stops the connection to
the wireless handwheel and determines the current frequency
spectrum for all of the 16 available channels
Memorize the number of the channel with the least amount of
radio traffic (smallest bar)
Click the Start handwheel button to reactivate the wireless
handwheel
Click the
Properties tab
Click the
Select channel button: The TNC shows all available
channel numbers. Click the channel number for which the TNC
determined the least amount of radio traffic
To save the configuration and exit the configuration menu, press
the
END button
Selecting the transmitter power
Please keep in mind that the transmission range
of the wireless handwheel decreases when the
transmitter power is reduced.
Press the
MOD key to select the MOD function
Select the
Machine settings menu
Select the configuration menu for the wireless handwheel:
Press the
SET UP WIRELESS HANDWHEEL soft key
Click the
Set power button: The TNC shows the three available
power settings. Click the desired setting
To save the configuration and exit the configuration menu, press
the
END button
