MOD functions
18.2 Graphic settings
18
614
TNC 640 | User's Manual
HEIDENHAIN Conversational Programming | 1/2015
18.2 Graphic settings
With the MOD function Graphic settings, you can select the model
type and model quality.
Select the graphic settings:
In the MOD menu, select the
Graphic settings group
Select the model type
Select the model quality
Press the
APPLY soft key
Press the OK soft key

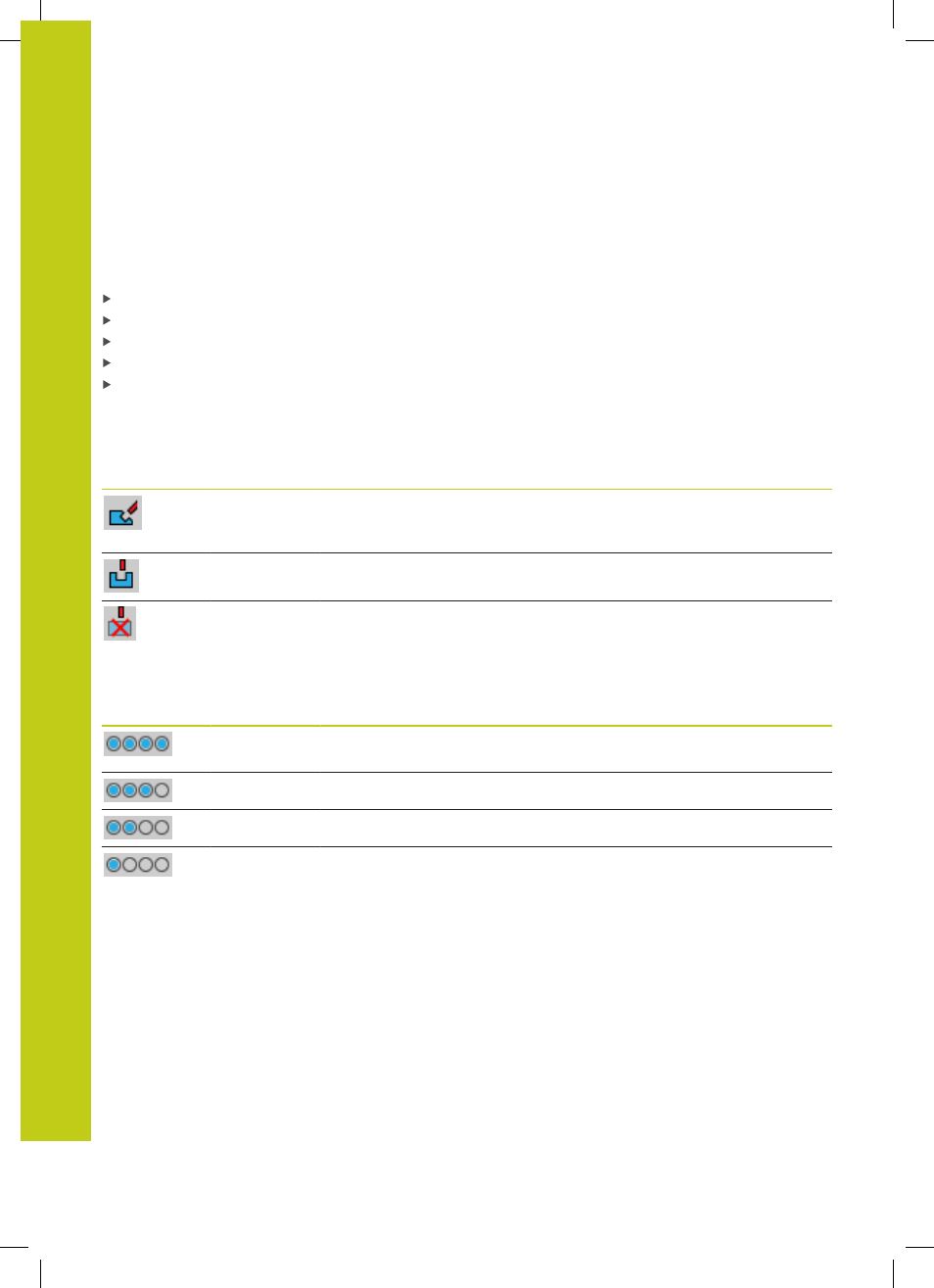

You have the following simulation parameters for the graphic settings:
Model type
Displayed
symbol Choice Properties Application
3-D Very true to detail,
heavy time and processor
consumption
Milling with undercuts,
milling-turning operations
2.5 D Fast Milling without undercuts
No model Very fast Line graphics
Model quality
Displayed
symbol Choice Properties
Very high High data transfer rate, exact depiction of tool geometry,
depiction of block end points and block numbers possible
High High data transfer rate, exact depiction of tool geometry
Medium Medium data transfer rate, approximation of tool geometry
Low Low data transfer rate, coarse approximation of tool geometry
