Connection diagram, 2 main circuit connection diagram – Yaskawa CIMR-PUxA User Manual

Page 48

Advertising
background image

n

Connection Diagram

+ 1

−

3

+

−

U/T1
V/T2

W/T3

R/L1
S/L2
T/L3

R1/L11
S1/L21

T1/L31

U1

V1

W1

W2 V2 U2

Braking Unit
(option)

Braking Resistor Unit
(option)

Motor

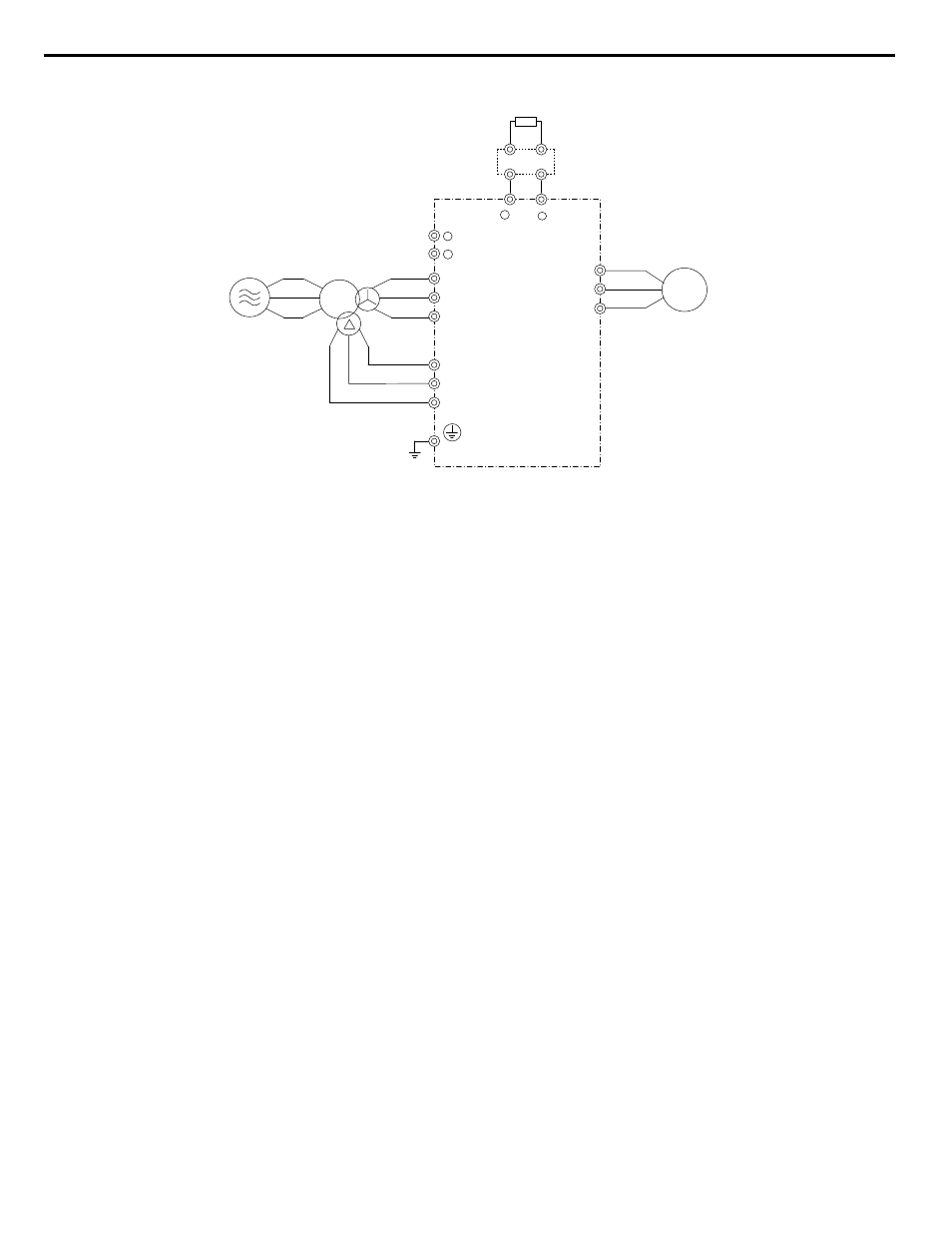

Figure 3.8 Connecting Main Circuit Terminals

3.2 Main Circuit Connection Diagram

48

YASKAWA ELECTRIC TOEP YAIP1U 01B YASKAWA AC Drive - P1000 Quick Start Guide
