3.5.6 NVR42-8P-4K Series

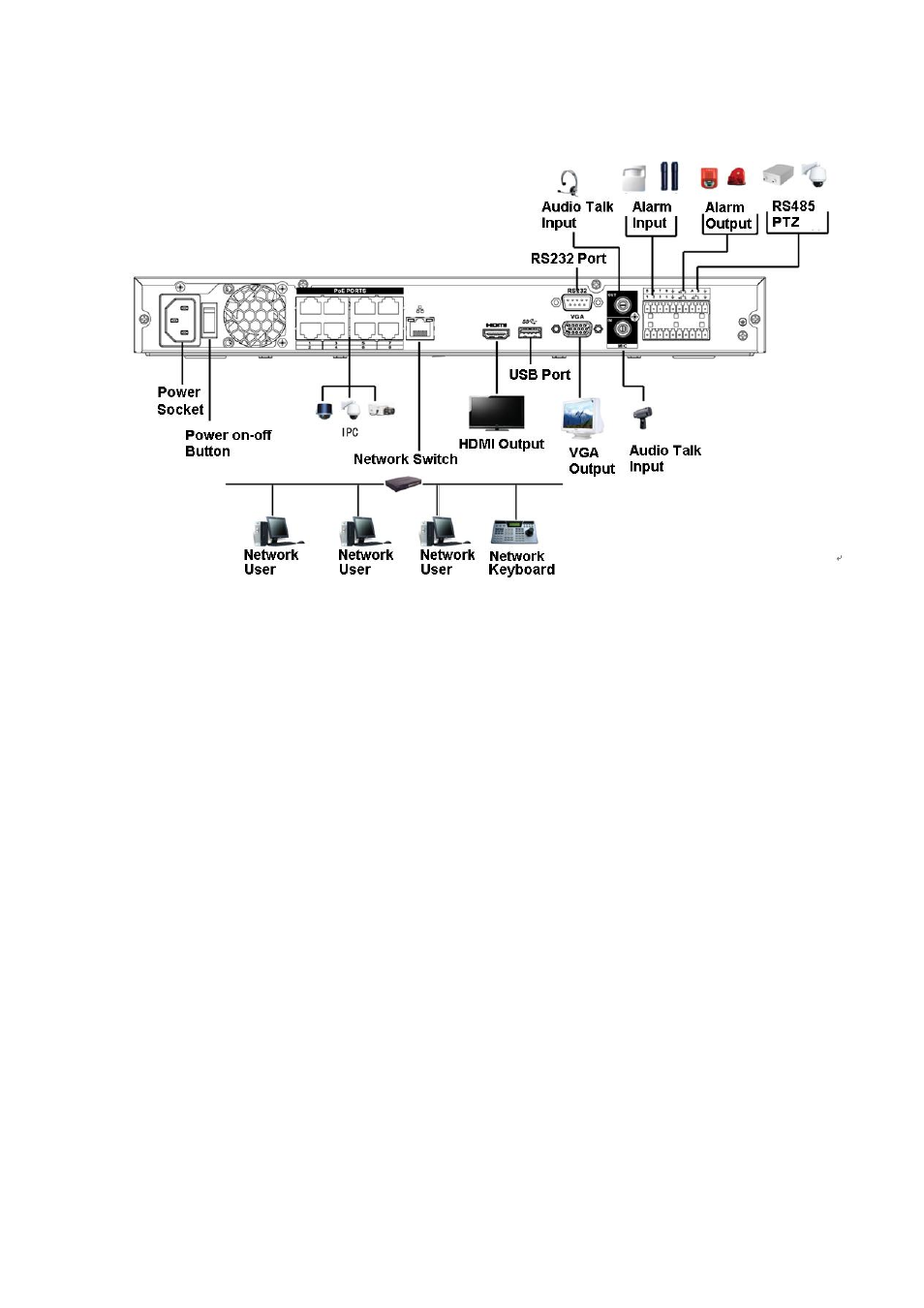

Please refer to Figure 3-6 for connection sample.
Figure 3-6
3.5.7 NVR44/44-8P/44-16P Series
Please refer to Figure 3-7 for connection sample.
The following interface is based on the 44-8P series product.
