66

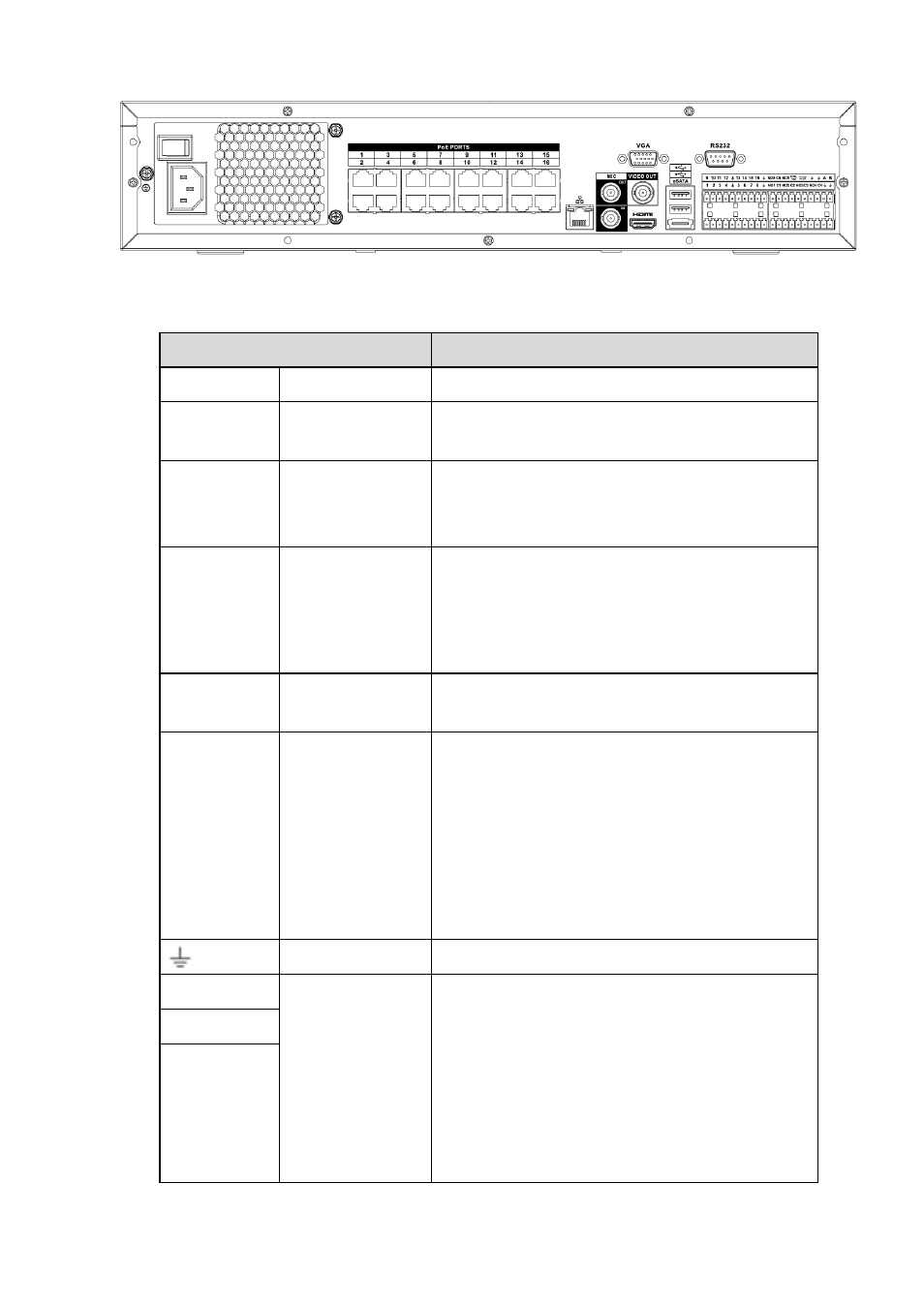

Figure 2-39

Please refer to the following sheet for detailed information.

Port Name

Function

Power switch /

Power on-off button

Power

input

port

/

Input AC 100~240V.

MIC IN

Audio input port

Bidirectional talk input port. It is to receive the

analog audio signal output from the devices such

as microphone, pickup.

MIC OUT

Audio output port

Audio output port. It is to output the analog audio
signal to the devices such as the sound box.
 Bidirectional talk output.
 Audio output on 1-window video monitor.
 Audio output on 1-window video playback.

VIEDEO

OUT

Video output port

CVBS output

1~16

Alarm input port

1~16

 There are four groups. The first group is from

port 1 to port 4, the second group is from port 5
to port 8, the third group is from 9 to 12, and
the fourth group is from 13 to 16. They are to
receive the signal from the external alarm
source. There are two types; NO (normal
open)/NC (normal close).

 When your alarm input device is using external

power, please make sure the device and the
NVR have the same ground.

GND

Alarm input ground port.

NO1~NO5

Alarm output port

1~5

 5 groups of alarm output ports. (Group 1:port

NO1~C1,Group 2:port NO2~C2,Group 3:port
NO3~C3, Group 4:port NO4~C4, Group 5:
port NO5, C5, NC5).Output alarm signal to the
alarm device. Please make sure there is power
to the external alarm device.

 NO: Normal open alarm output port.
 C: Alarm output public end.
 NC: Normal close alarm output port.

C1~C5

NC5
