143
In the main menu, from Main menu->Setting->Storage->Schedule, you can go to schedule menu.
See Figure 4-55. Here you can set snapshot period. There are total six periods in one day. Please refer
to chapter 4.8.2.1 for detailed setup information. The setup steps are general the same.

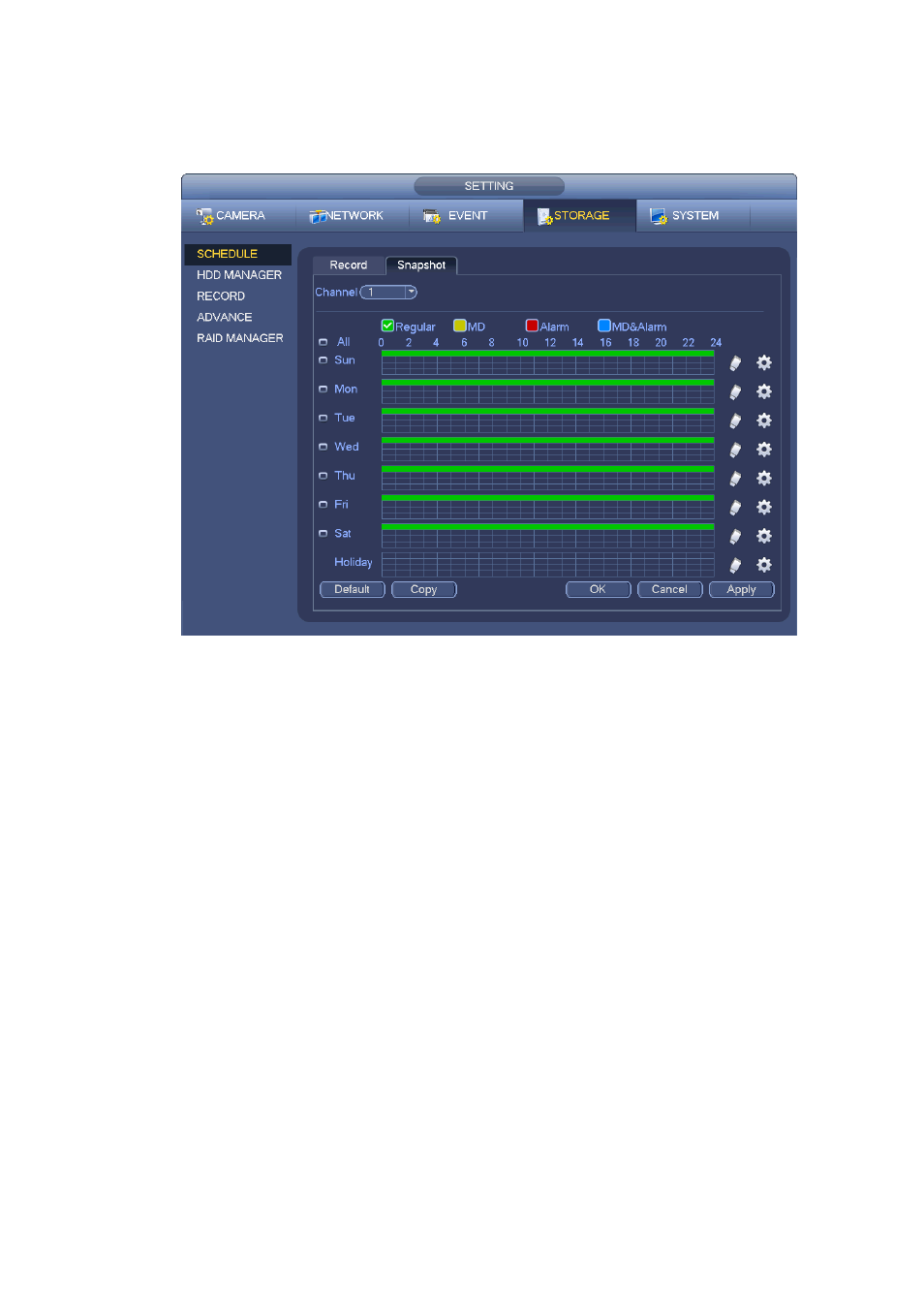

Figure 4-60
Note
 Please note the trigger snapshot has the higher priority than regular snapshot. If you have enabled
these two types at the same time, system can activate the trigger snapshot when an alarm occurs,
and otherwise system just operates the regular snapshot.
 Only the trigger snapshot supports this function. The regular snapshot function can not send out
picture via the email. But you can upload the picture to a FTP.
4.8.3 Motion detect record/snapshot
4.8.3.1 Motion detect record
a) From Main menu->Setting->Event->Detect, you can go to the following interface. See Figure
4-61.
