145
i) Click Copy button to copy current setup to other channel(s).
j) Click OK button to complete motion detect record setup.

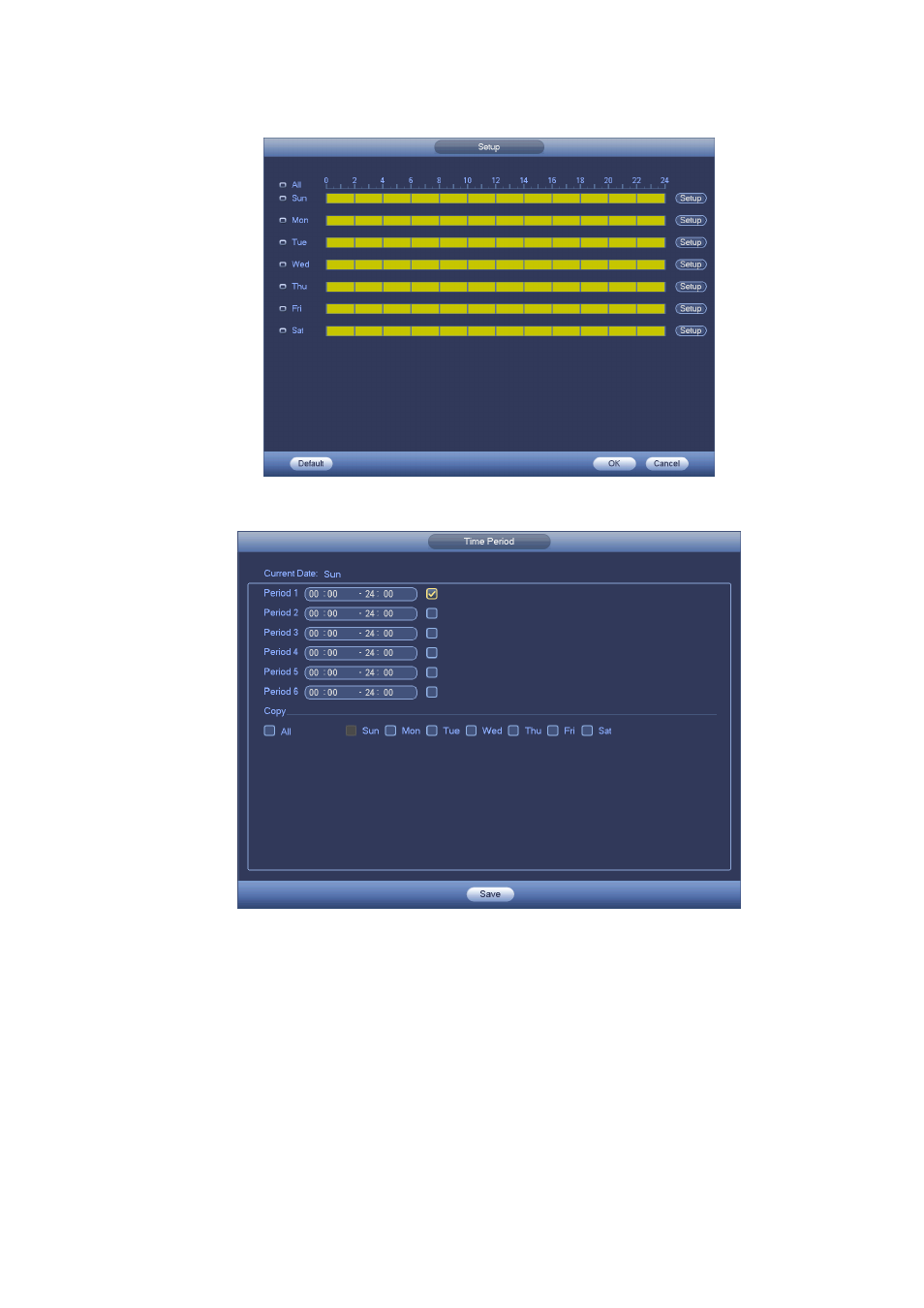

Figure 4-62
Figure 4-63
4.8.3.2 Motion Detect Snapshot
a) From Main menu->Setting->Camera->Encode->Snapshot, you can go to snapshot interface.
See Figure 4-64.
b) In Figure 4-64, select trigger snapshot from the dropdown list and then set picture size, quality
and snapshot frequency. Click OK button to save current setup.
c) From Main menu->Setting->Event->Detect, here you can select motion detect type, motion
detect channel and then check the enable box. Please refer to chapter 4.8.3.1.
d) Click OK button to complete motion detect setup.
