158
 Mark Manager

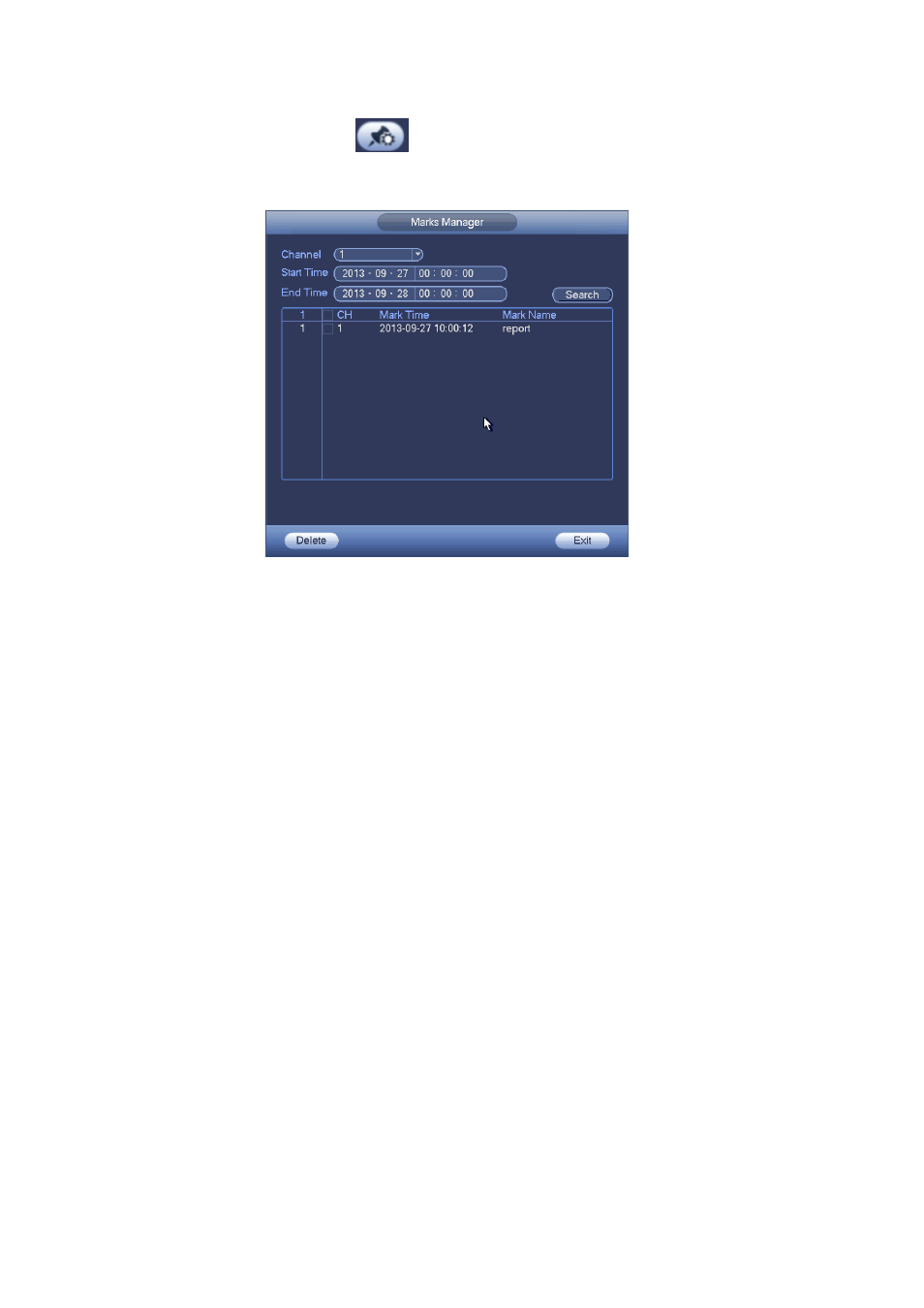

Click the mark manager button on the Search interface (Figure 4-71); you can go to Mark
Manager interface. See Figure 4-75. System can manage all the record mark information of current
channel by default. You can view all mark information of current channel by time.
Figure 4-75
 Modify
Double click one mark information item, you can see system pops up a dialogue box for you to change
mark information. You can only change mark name here.
 Delete
Here you can check the mark information item you want to delete and then click Delete button, you can
remove one mark item. .
Note
 After you go to the mark management interface, system needs to pause current playback. System
resume playback after you exit mark management interface.
 If the mark file you want to playback has been removed, system begin playbacking from the first file
in the list.
4.9.3 Picture Playback
a) From Main menu->Search, or on the preview interface right click mouse, you can go to Figure
4-71.
b) At the top right pane, you can check the box to select picture and then select playback interval.
c) Please refer to chapter 4.9.2 to select picture you want to view.
4.10 Backup
4.10.1 File Backup
In this interface, you can backup record file to the USB device.
a) Connect USB burner, USB device or portable HDD and etc to the device.
b) From Main menu->Backup, you can go to the Backup interface. See Figure 4-76
