3.5.12 NVR74-8P/74-16P Series

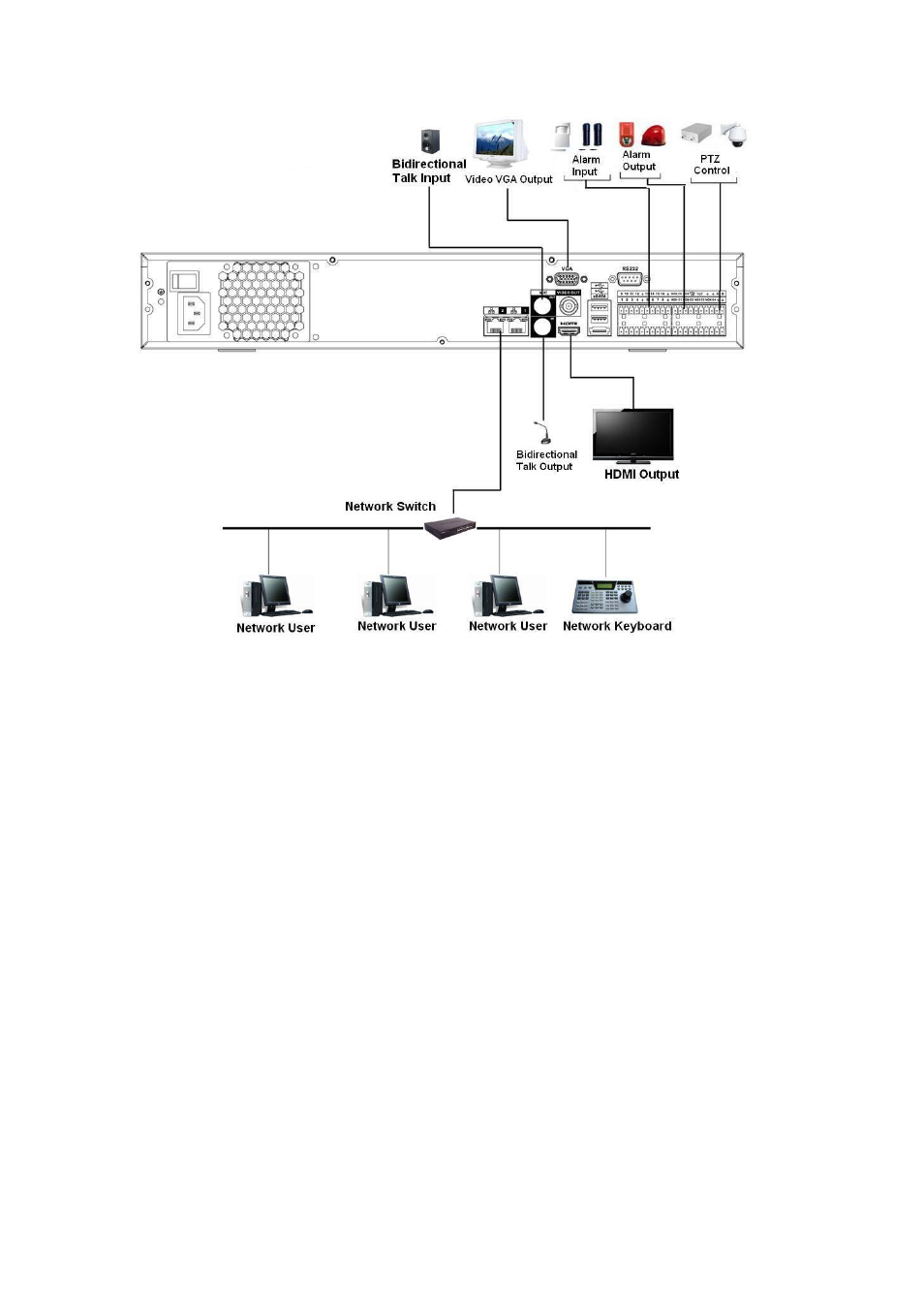

Please refer to Figure 3-12 for connection sample.

The following figure is based on the NVR74-8P series product.
