129
Please follow the procedures below to go on cable connection
 Connect the dome RS485 port to NVR RS485 port.
 Connect dome video output cable to NVR video input port.
 Connect power adapter to the dome.

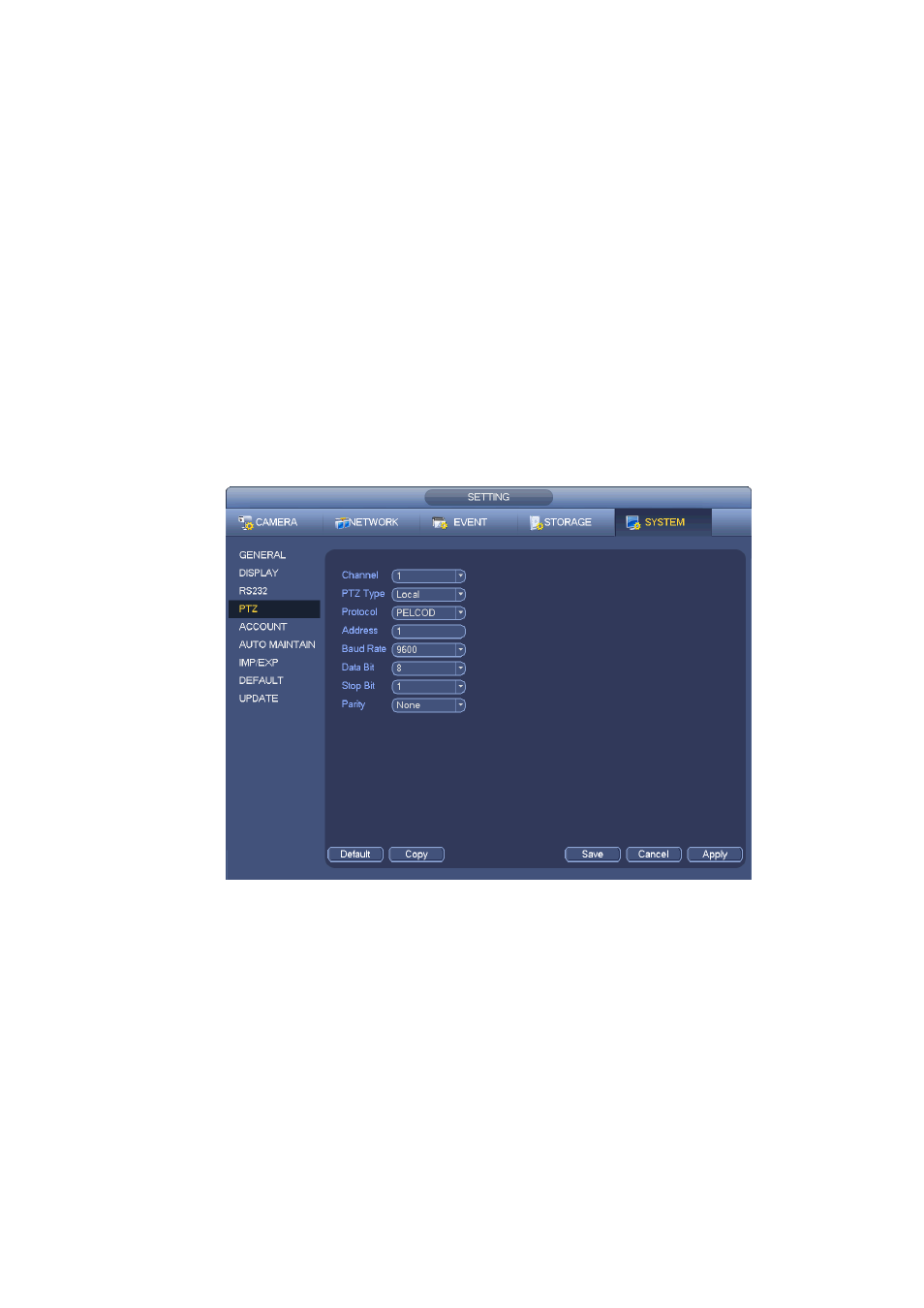

In the main menu, from Setting->System->PTZ, you can see an interface is shown as in Figure 4-36.
Here you can set the following items:
 Channel: Select the current camera channel.
 PTZ type: There are two types: local/remote. Please select local mode if you are connect RS485
cable to connect to the Speed dome (PTZ). Please select r emote mode if you are connecting to the
network PTZ camera.
 Protocol: Select corresponding PTZ protocol(such as PELCOD)
 Address: Default address is 1.
 Baud rate: Select corresponding baud rate. Default value is 9600.
 Data bit: Select corresponding data bits. Default value is 8.
 Stop bit: Select corresponding stop bits. Default value is 1.
 Parity: There are three options: odd/even/none. Default setup is none.
Figure 4-36
If you are connecting to network PTZ, the PTZ type shall be remote. See Figure 4-37.
