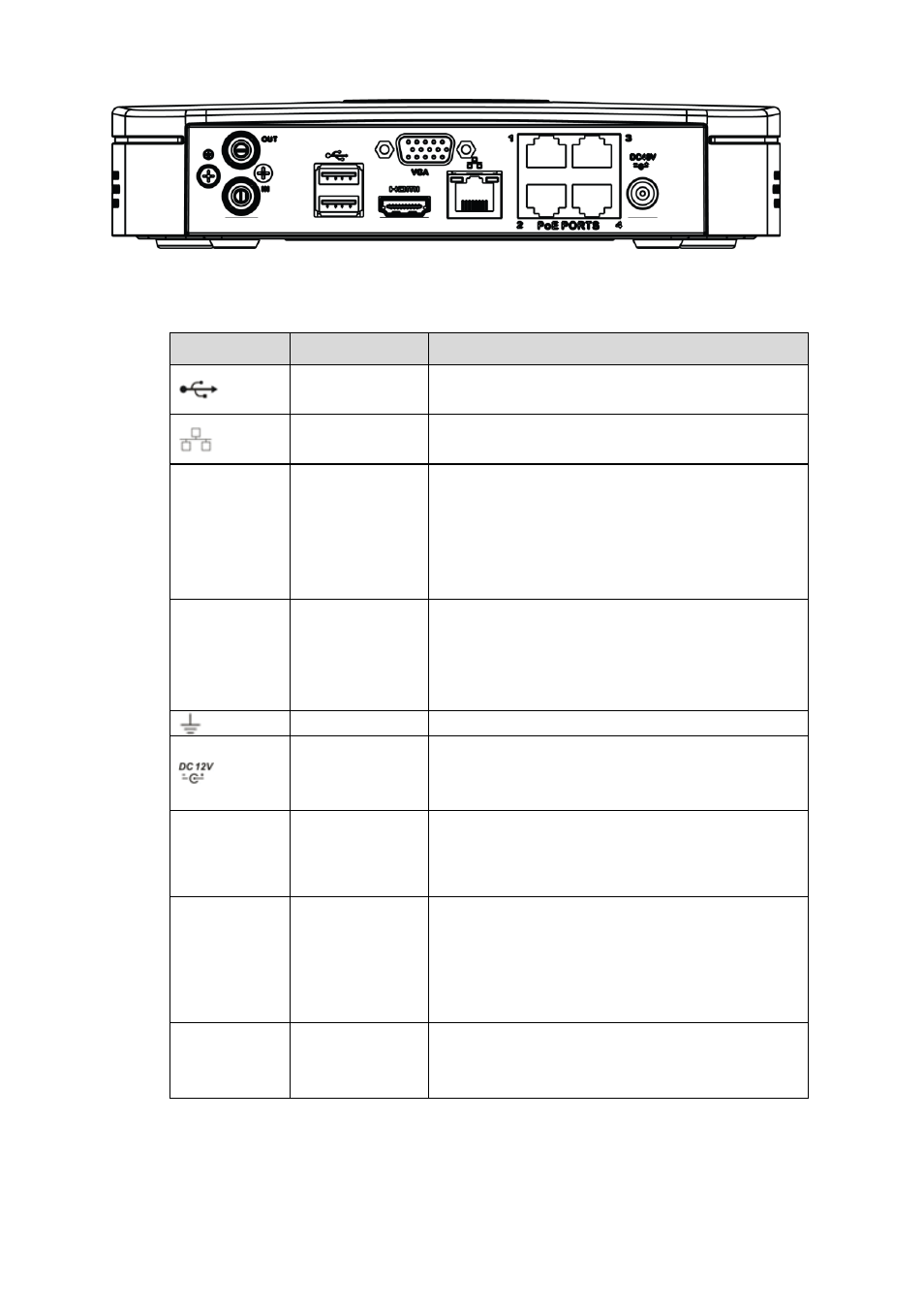

Figure 2-15

Please refer to the following sheet for detailed information.

Port Name

Connection

Function

USB2.0 port

USB2.0 port. Connect to mouse, USB storage

device, USB burner and etc.

Network port

10M/100Mbps

self-adaptive

Ethernet

port.

Connect to the network cable.

HDMI

High

Definition

Media Interface

High definition audio and video signal output port.

It transmits uncompressed high definition video

and multiple-channel data to the HDMI port of the

display device. HDMI version is 1.4.

VGA

VGA

video

output port

VGA video output port. Output analog video

signal. It can connect to the monitor to view analog

video.

GND

Ground end

Power input port

Power socket.
 For NVR11 series, input DC 12V/2A.
 For NVR11-P series, input DC 48V/1.25A.

MIC IN

Audio input port

Bidirectional talk input port. It is to receive the

analog audio signal output from the devices such

as microphone, pickup.

MIC OUT

Audio

output

port

Audio output port. It is to output the analog audio
signal to the devices such as the sound box.
 Bidirectional talk output.
 Audio output on 1-window video monitor.
 Audio output on 1-window video playback.

PoE PORT

PoE port

Built-in switch. Support PoE function.

For PoE series product, you can use this port to
provide power to the network camera.

2.2.3 NVR41/41-P/41-8P/41-W Series

The NVR41 rear panel is shown as below. See Figure 2-16.
