33

Play Next/9

|

In playback mode, playback the next video

In menu setup, go to down ward of the dropdown list.

In text mode, input number 9 (English character W/X/Y/Z)

.

Play/Pause /5 ||

In normal playback click this button to pause playback

In pause mode, click this button to resume playback.

In text mode, input number 5(English character J/K/L).

USB port

To connect USB storage device, USB mouse.

Network

abnormal

indicator light

Net

Network error occurs or there is no network connection, the

light becomes red to alert you.

HDD

abnormal

indicator light

HDD

HDD error occurs or HDD capacity is below specified

threshold value, the light becomes red to alert you.

Record light

1-16

System is recording or not. It becomes on when system is

recording.

IR Receiver

IR

It is to receive the signal from the remote control.

2.1.5 NVR42-4K/42-8P-4K Series

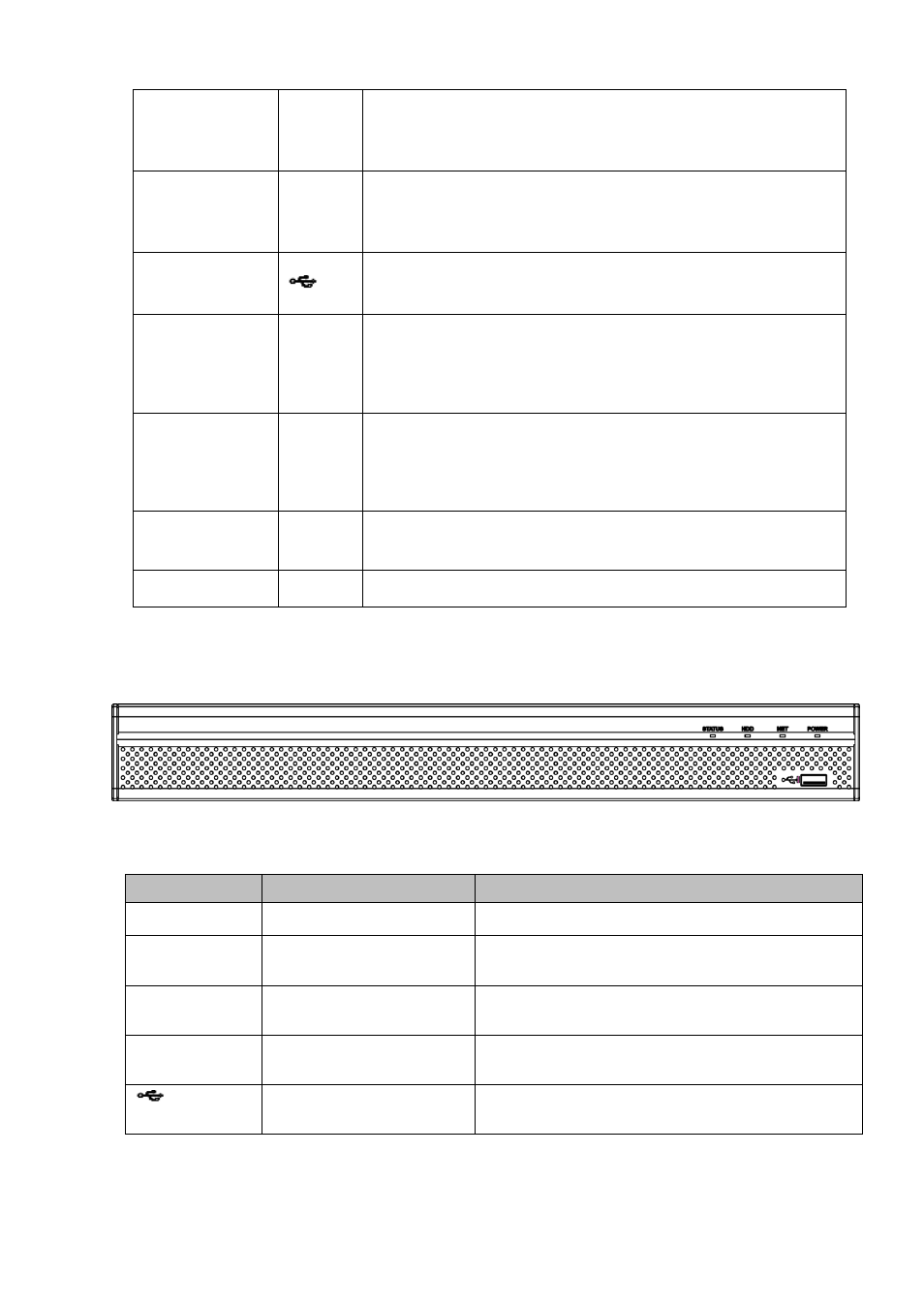

The front panel is shown as in Figure 2-5.

Figure 2-5

Please refer to the following sheet for front panel button information.

Icon

Name

Function

STATUS

Status indicator light

The blue light is on when the device is malfunction.

HDD

HDD status indicator

light

The red light is on when the HDD is malfunction.

NET

Network status indicator

light

The red light is on when the network connection is

abnormal.

POWER

Power status indicator light The red light is on when the power connection is

OK.

USB2.0 port

Connect to peripheral USB 2.0 storage device,

mouse, burner and etc.

2.1.6 NVR44/44-8P/44-16P/74/74-8P/74-16P Series

The front panel is shown as in Figure 2-6.
