50

Name

Function

B

port

RS485_B.It is the cable B. You can connect to the
control devices such as speed dome PTZ.

Network port

10M/100M/1000Mbps self-adaptive Ethernet port.

Connect to the network cable.

USB2.0

port

USB2.0 port. Connect to mouse, USB storage device,

USB burner and etc.

RS-232

RS-232

debug

COM.

It is for general COM debug to configure IP address or

transfer transparent COM data.

HDMI

High

Definition

Media Interface

High definition audio and video signal output port. It

transmits uncompressed high definition video and

multiple-channel data to the HDMI port of the display

device. HDMI version is 1.4.

VGA

VGA

video

output port

VGA video output port. Output analog video signal. It

can connect to the monitor to view analog video.

PoE

PORTS

/

Bult-in Switch. Support PoE.

The 4 PoE series product supports total 48V 50W.

The 8 PoE series product supports total 48V 120W.

One PoE port max supports 15W.

2.2.6 NVR42-4K Series

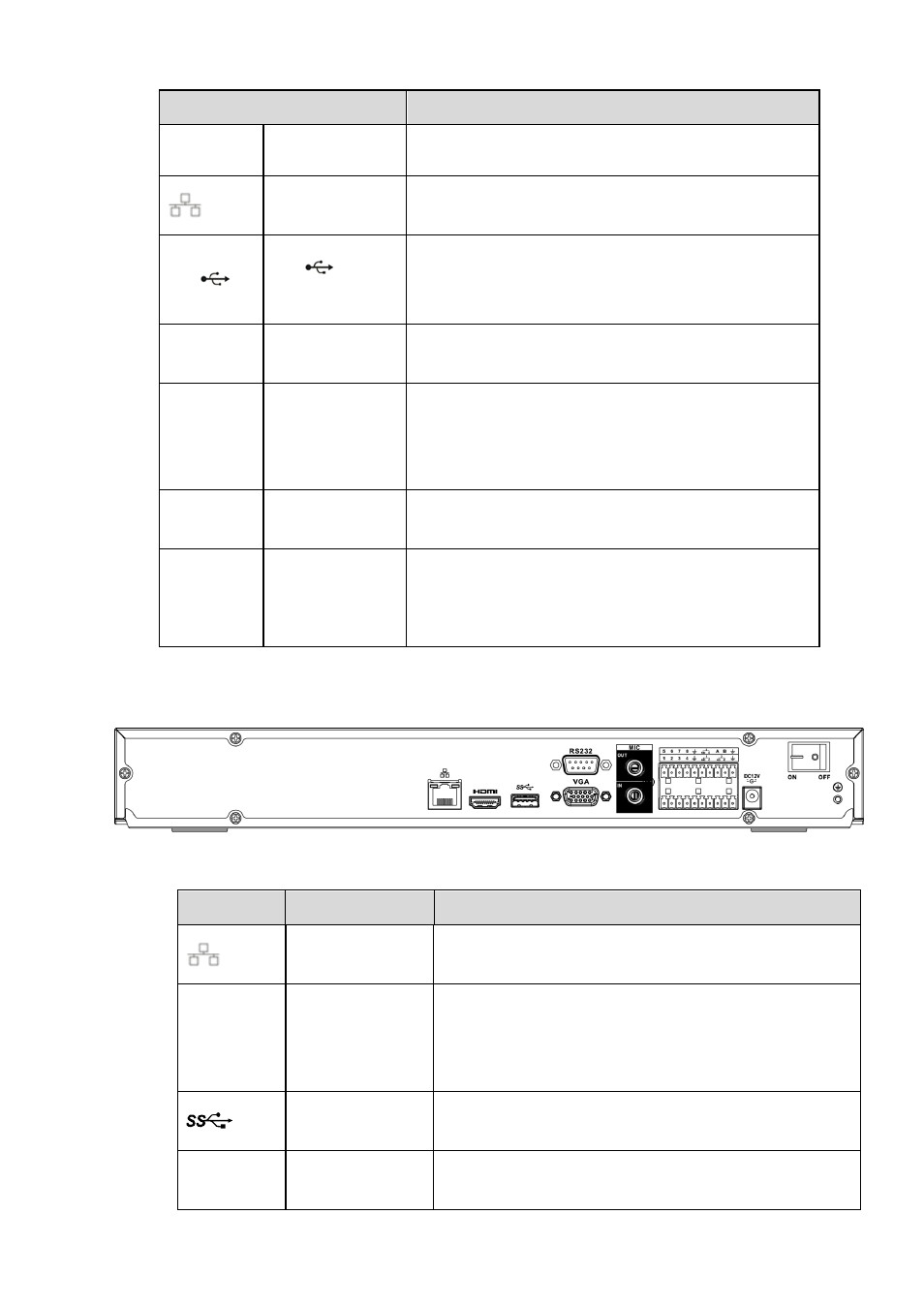

The NVR42-4K series rear panel is shown as below. See Figure 2-26.

Figure 2-26

Icon

Port Name

Function

Network port

10M/100M/1000Mbps

self-adaptive

Ethernet

port.

Connect to the network cable.

HDMI

High

Definition

Media Interface

High definition audio and video signal output port. It

transmits uncompressed high definition video and

multiple-channel data to the HDMI port of the display

device. HDMI version is 1.4.

USB3.0 port

USB3.0 port. Connect to mouse, USB storage device,

USB burner and etc.

RS-232

RS-232

debug

COM.

It is for general COM debug to configure IP address or

transfer transparent COM data.
