IQOYA SERV/LINK user manual
11 AES67 parameters configuration
This section only applies to SERV/LINK versions with AES67 connectivity.
11.1 Principles

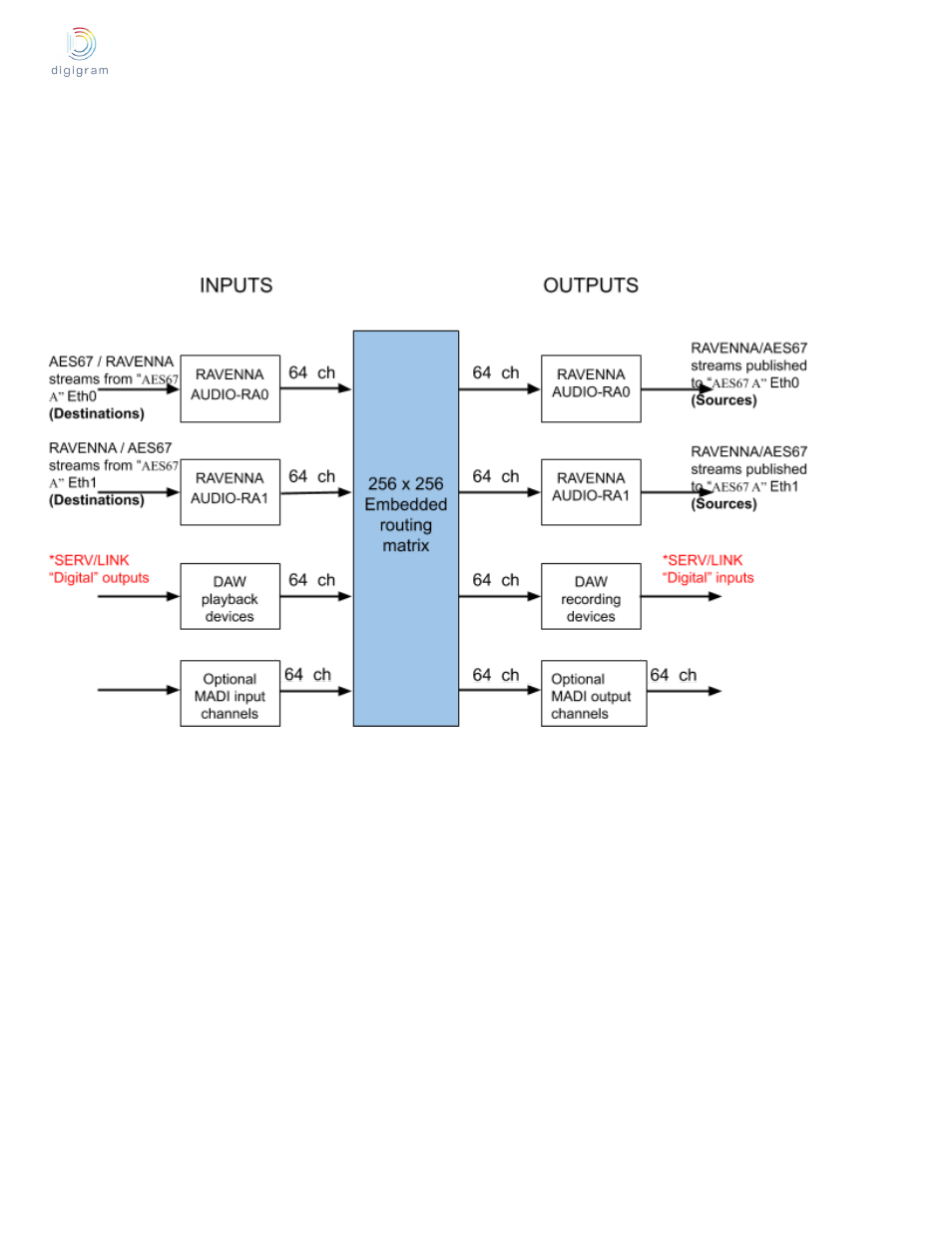

11.1.1 Embedded routing matrix
The inputs of the on-board routing matrix are:
●
64 channels coming from the input block “RAVENNA AUDIO-RA0”. This block extracts the audio channels from the RAVENNA /
AES67 streams that are declared to be received through the network interface AES67 A Eth0. These streams to be received are
named “Destinations”.
●
64 channels coming from the block “RAVENNA AUDIO-RA1”. This block extracts the audio channels from the RAVENNA / AES67
streams that are declared to be received through the network interface AES67 A Eth1. These streams to be received are named
“Destinations”.
●
64 channels coming from the block “DAW”. This block receives the audio channels coming from the output programs of IQOYA
SERV/LINK.
●
64 channels coming from the MADI input for SERV/LINK AES67/MADI.
The outputs of the routing matrix are:
●
64 channels assigned to the output block “RAVENNA AUDIO-RA0”. These channels are the audio sources of the AoIP streams
published to the network through AES67 A Eth0. these streams are named “Sources”.
●
64 channels assigned to the output block “RAVENNA AUDIO-RA1”. These channels are the audio sources of the AoIP streams
published to the network through AES67 A Eth1. these streams are named “Sources”.
●
64 channels assigned to the output block “DAW”. These channels correspond the audio inputs of IQOYA SERV/LINK.
●
64 channels assigned to the MADI output for SERV/LINK AES67/MADI.
