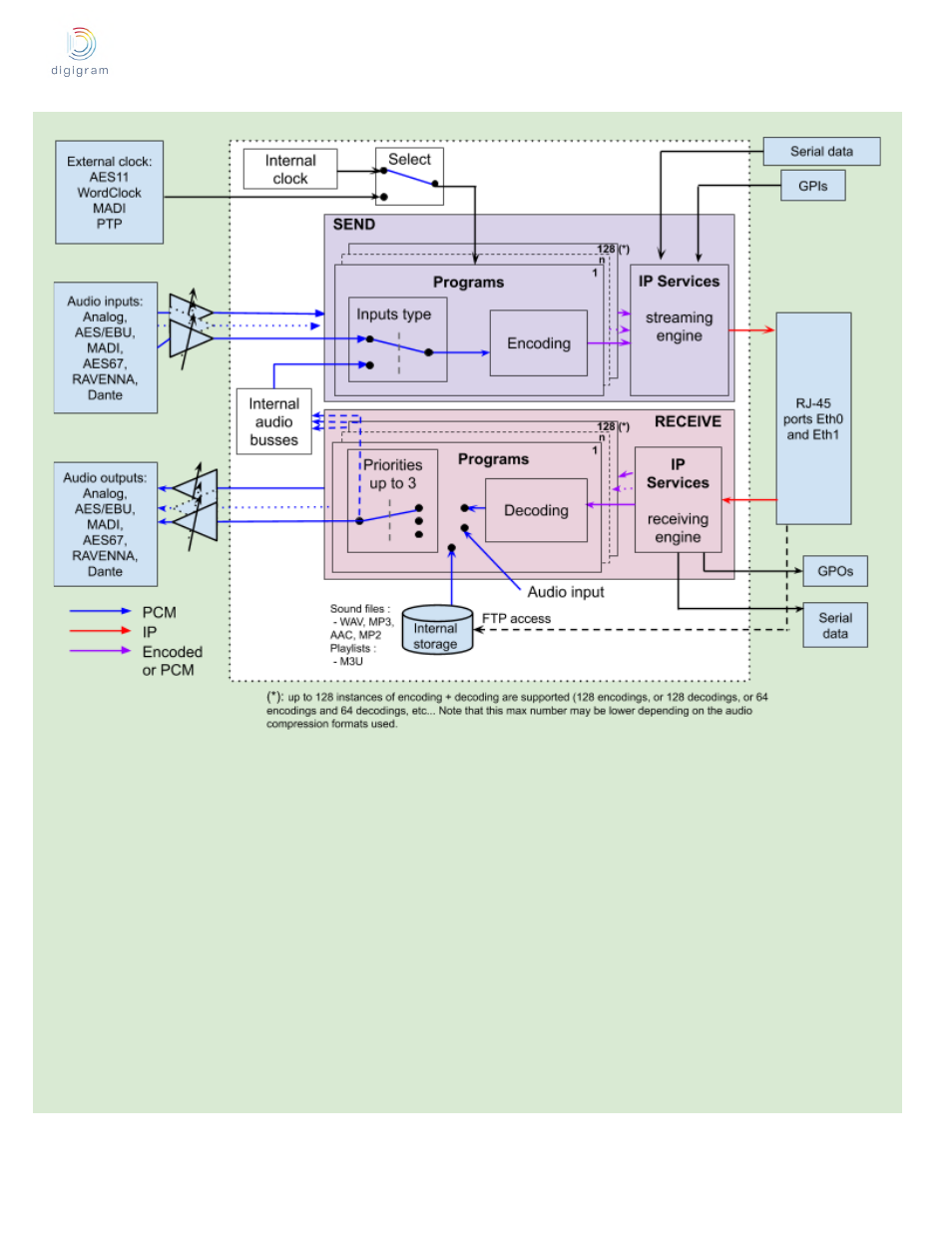

Schematic diagram of IQOYA SERV/LINK
4.1.1 Audio inputs and outputs
The audio inputs receive the audio signals to be encoded. They can be analog, AES/EBU, MADI, or RAVENNA /
AES6, or Dante. Each source can be encoded several times at different formats, and streamed to several
destinations.
Audio samples decoded by SERV/LINK are played to the selected audio outputs. Audio outputs can be analog,
AES/EBU, MADI, or RAVENNA / AES67, or Dante . In case of an IQOYA SERV/LINK that features both analog
and digital outputs (for instance SERV/LINK 882), the decoded audio signal is available on both the analog and
AES/EBU outputs.
Note that decoded audio samples can also be sent to internal audio buses, and audio buses can also be
sources to be encoded. See paragraph 4.4 below.
