11.8 Routing matrix

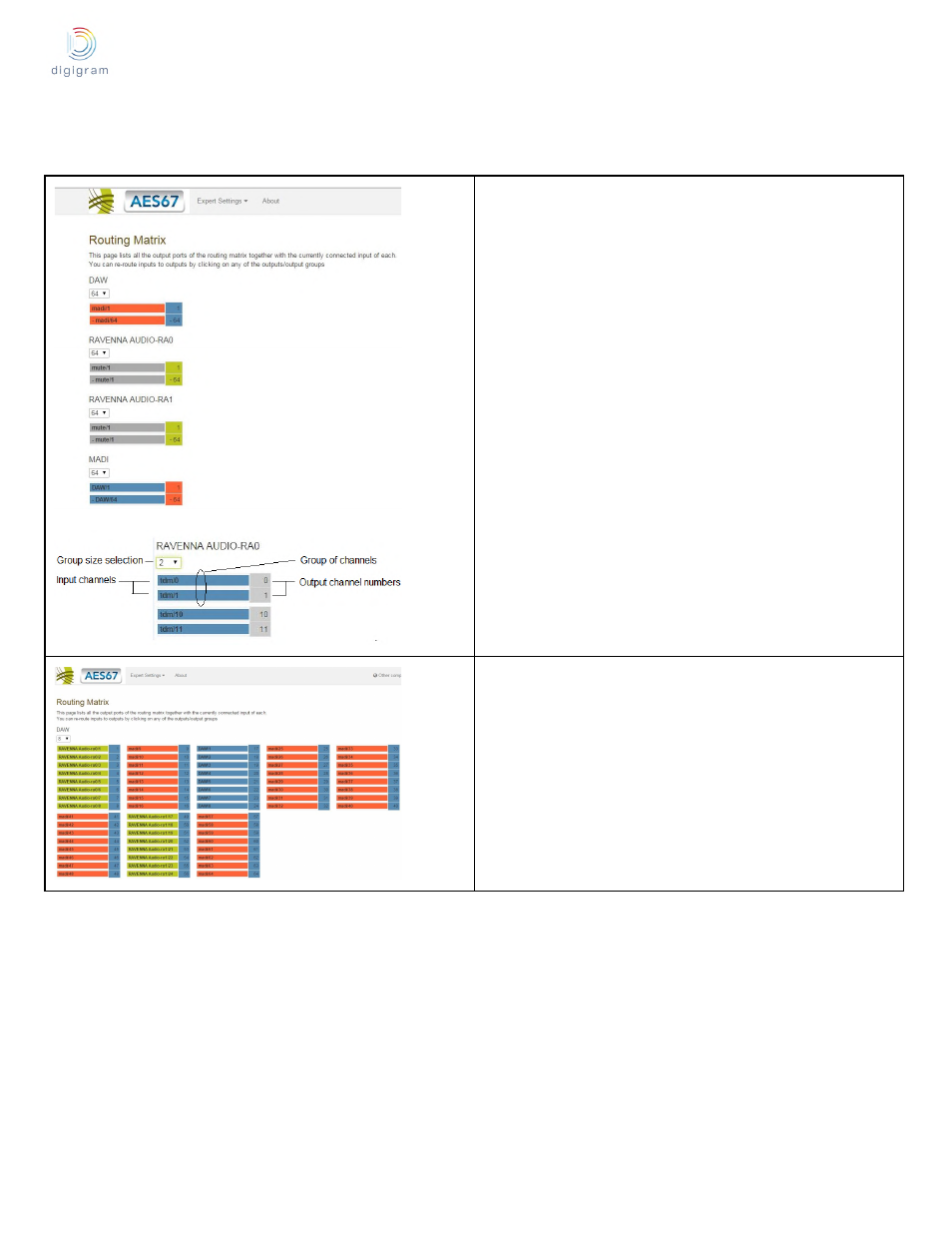

The embedded matrix can be configured by clicking on “Configure routing matrix”.
134
This view displays the three available output ports of the matrix,
and the audio inputs that are allocated to each port.
Each output port is 64 channels.
DAW
: This section allows for the selection of the audio inputs that
will be published to the Digital Audio Workstation software devices
(DirectSound, ASIO, Alsa).
RAVENNA AUDIO-RA0
: This section allows for the selection of
the audio inputs that will be published to the network as IP audio
streams through Eth0.
RAVENNA AUDIO-RA1
: This section allows for the selection of
the audio inputs that will be published to the network as IP audio
streams through Eth1.
MADI
(optional): This section allows for the selection of the audio
inputs that will be published to the MADI output.
The allocated inputs can be configured channel per channel
(select 1 in the drop down menu), per stereo channels, (select 2 in
the drop down menu), per group of 8 consecutive channels (select
8 in the drop down menu), or per group of 64 consecutive
channels (select 8 in the drop down menu).
The input channels are then listed by groups (1, 2, 8, or 64), with
the number of the associated output channels in front of the input
channel name.
This is an example of input channels allocated per groups of 8
channels to the the DAW output port.
The selected inputs are routed the the PC devices a software
application can record from.
To configure the group of audio inputs to be allocated to a group
on the output port, click on the group of channels.
