IQOYA SERV/LINK user manual
87
8.5.
Status

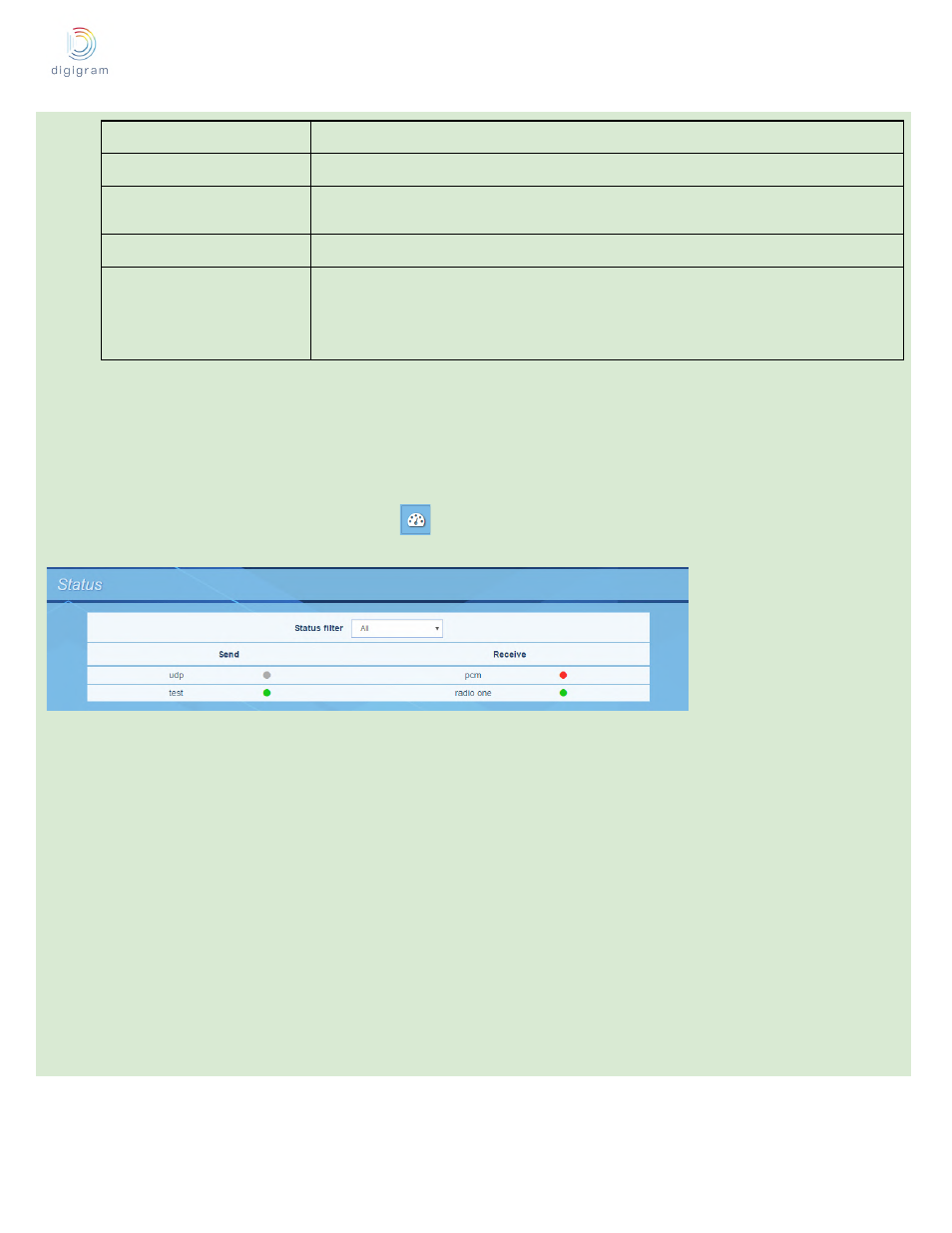

The status page displays a synthesis of the statuses of sent IP Services and output programs, and gives access
to all the alarms of each IP service and output program.
This page is accessible by clicking on the icon
.
All sent IP services are listed on the left under “Send”.
All output programs are listed on the right under “Receive”.
The parameter “Status filter” allows filtering on the type of alarms to take into account for the display. Possible
values are:
● All: all alarms are taken into account.
Green LED means no alarm is ON.
Orange LED means there are warnings ON.
Red LED means there are alarms and the stream is stopped.
● Warnings: only the warnings are taken into account. They concern the receivers.
● Failures: only failures are taken into account; this is typically when there is a streaming failure (no stream
received, ne stream sent).
A list of all the alarms can be displayed by click on the IP Service name (Send), and on the output program name
(Receive).
Lost packets
Number of IP frames that have not been received.
Late packets
Number of IP frames that have been received late.
Duplicated packets
Number of IP frames that are received more than once. IQOYA automatically removes duplicated
frames.
Reordered packets
Number of IP frames that have been reordered after being received disordered.
Recovered packets
Number of IP frames that are recovered thanks to the FEC.
If “Lost packets - Recovered packets” equals 0, the FEC is adapted to the network path.
If “Lost packets > Recovered packets”, the selected FEC does not allow to recover all the lost packets.
It is then necessary to select another FEC.
Make also sure that the jitter value set in Receive−> IP services is higher than the max measured jitter.
